CS 2138 C - Jonsered Chainsaw (2006-01) CYLINDER PISTON MUFFLER Parts Diagram

Chainsaw

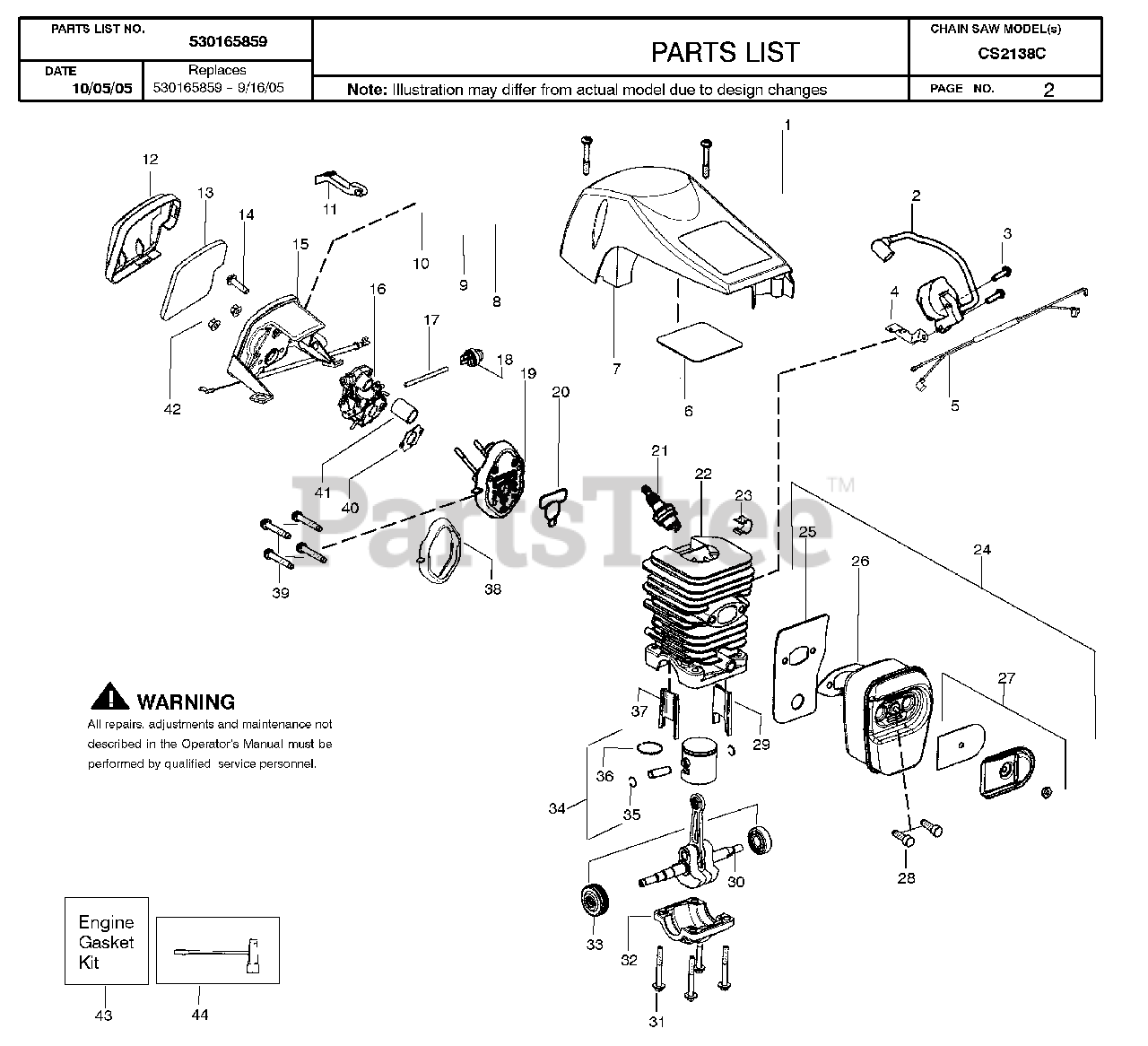

CYLINDER PISTON MUFFLER Parts Diagram

  • Title

1

Jonsered 530016153

SCREW

$6.49

$

In Stock, Qty 14

0

2

Jonsered 530039232

No Description Available
(Superseded to 573992801)

$

$

Not available

3

Jonsered 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 20+

0

4

Jonsered 530058661

STRAP GROUND

$3.99

$

In Stock, only 2 left!

0

5

Jonsered 530057943

ASSY WIRE HARNESS

$9.99

$

Usually ships in 3-10 days

0

6

Jonsered 530055698

No Description Available

$3.99

$

In Stock, only 1 left!

0

7

Jonsered 530057872

HOUSING CYLINDER SHIELD

$13.99

$

In Stock, only 1 left!

0

8

Jonsered 530016080

SCREW

$6.49

$

In Stock, Qty 10

0

9

Jonsered 530057891

LEVER IGNITION SWITCH

$8.99

$

Usually ships in 3-10 days

0

10

Jonsered 530057908

SPRING IGNITION SWITCH

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 530059399

LEVER CHOKE

$

$

Not available

12

Jonsered 530059001

COVER AIR FILTER

$6.99

$

In Stock, Qty 11

0

13

Jonsered 530057869

FILTER AIR

$3.99

$

In Stock, Qty 20+

0

14

Jonsered 530016425

SCREW M5-0.8X16

$6.49

$

Usually ships in 3-10 days

0

15

Jonsered 530150029

No Description Available
(Superseded to 545046901)

$26.99

$

Usually ships in 3-10 days

0

16

Jonsered 530035590

No Description Available
(Superseded to 545070601)

$50.99

$

In Stock, Qty 18

0

17

Jonsered 530069247

KIT-LINE

$6.49

$

In Stock, Qty 20+

0

18

Jonsered 530047721

AIR PURGE

$6.49

$

In Stock, Qty 20+

0

19

Jonsered 530071889

KIT CARB ADAPTOR

$26.99

$

In Stock, only 2 left!

0

20

Jonsered 530071894

KIT GASKET SAS

$10.99

$

In Stock, Qty 6

0

21

Jonsered 952030150

SPARK PLUG (RCJ-7Y)
(Superseded to 503235111)

$3.49

$

In Stock, Qty 20+

0

22

Jonsered 530071884

KIT CYLINDER

$37.99

$

In Stock, only 1 left!

0

23

Jonsered 530058660

HIGH TENSION LEAD CLIP

$3.99

$

Usually ships in 3-10 days

0

24

Jonsered 530071887

KIT MUFFLER
(Superseded to 545006007)

$31.99

$

In Stock, only 1 left!

0

25

Jonsered 530057942

PLATE BACK MUFFLER

$

$

Not available

26

Jonsered 530071894

KIT GASKET SAS

$10.99

$

In Stock, Qty 6

0

27

Jonsered 530071886

KIT SPARK ARRESTOR

$

$

Not available

28

Jonsered 530016338

SCREW MUFFLER

$3.99

$

In Stock, only 3 left!

0

29

Jonsered 530057885

INSERT TRANSFER PORT LEFT
(Superseded to 545015301)

$4.99

$

Usually ships in 3-10 days

0

30

Jonsered 530012537

ASSY CRANKSHAFT AND ROD
(Superseded to 545112901)

$66.99

$

Usually ships in 3-10 days

0

31

Jonsered 530016417

BOLT M6-1.0 X 25MM

$6.49

$

In Stock, Qty 5

0

32

Jonsered 530057941

CRANKCASE CASTING

$8.99

$

In Stock, only 1 left!

0

33

Jonsered 530056363

BEARING & SEAL ASSEMBLY

$18.99

$

In Stock, Qty 5

0

34

Jonsered 530071883

KIT PISTON

$34.99

$

In Stock, Qty 5

0

35

Jonsered 530015697

C-CLIP,PSTN PIN 36/41

$6.49

$

In Stock, Qty 6

0

36

Jonsered 530038729

RING-PISTON
(Superseded to 545160401)

$6.49

$

In Stock, only 2 left!

0

37

Jonsered 530057886

INSERT TRANSFER PORT RIGHT
(Superseded to 545015401)

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 530071894

KIT GASKET SAS

$10.99

$

In Stock, Qty 6

0

39

Jonsered 530016426

SCREW M5-0.8X30MM

$6.49

$

In Stock, Qty 15

0

40

Jonsered 530071894

KIT GASKET SAS

$10.99

$

In Stock, Qty 6

0

41

Jonsered 530057926

TUBE INTAKE

$4.99

$

In Stock, Qty 10

0

42

Jonsered 530016101

NUT

$6.49

$

In Stock, Qty 8

0

43

Jonsered 530071894

KIT GASKET SAS

$10.99

$

In Stock, Qty 6

0

44

Jonsered 530031135

SCRENCH
(Superseded to 530031163)

$9.99

$

In Stock, Qty 17

0

Jonsered 530165707

No Description Available

$4.99

$

Usually ships in 3-10 days

0

Jonsered 530059905

DECAL
(Superseded to 585994201)

$2.49

$

Usually ships in 3-10 days

0
