CS 2145 EPA - Jonsered Chainsaw (2004-03) CYLINDER PISTON Parts Diagram

Chainsaw

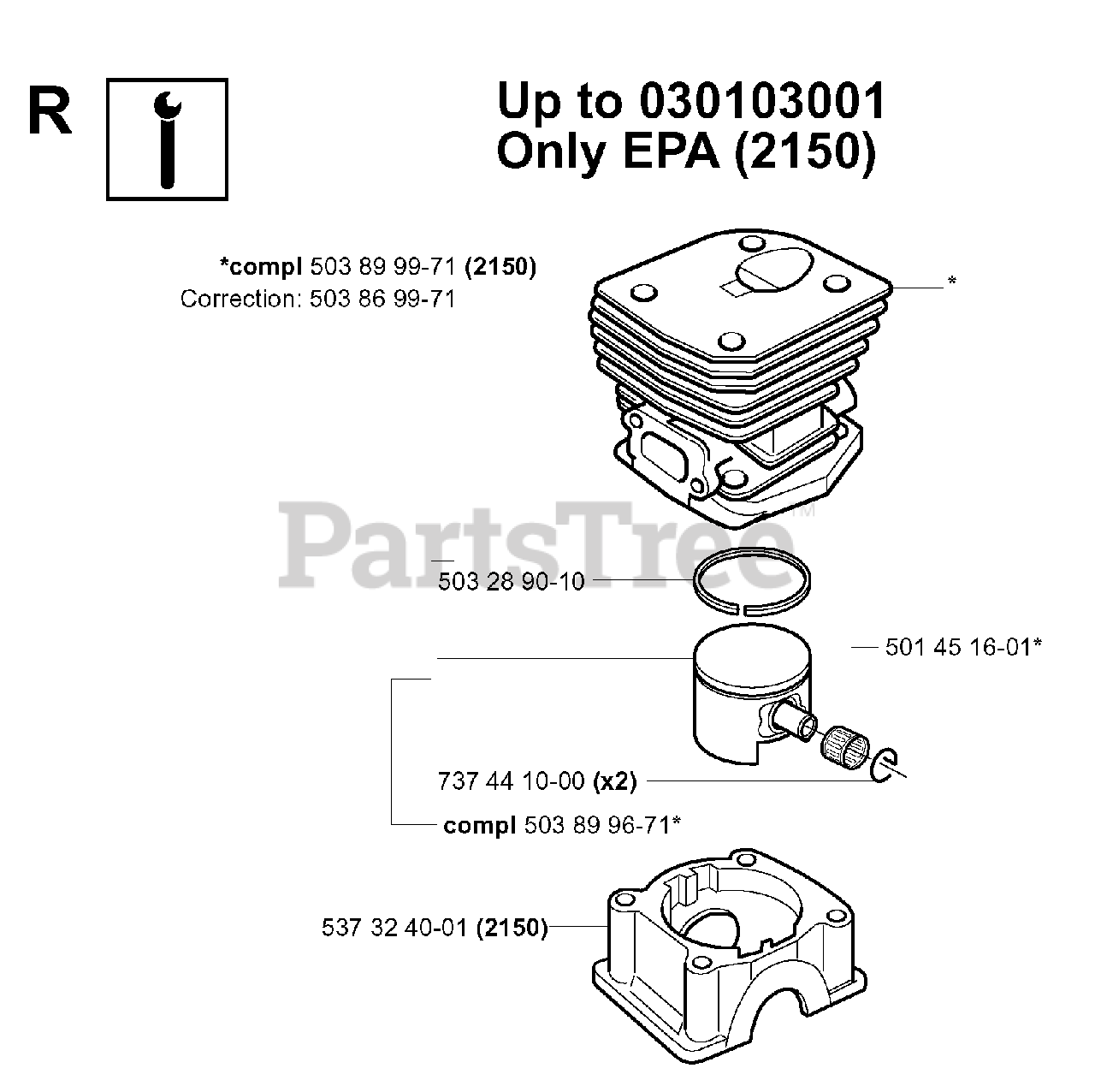

CYLINDER PISTON Parts Diagram

  • Title

5038699-71

Jonsered 503869971

CYLINDER

Note: 2150

$

$

Not available

5372530-02

Jonsered 537253002

%CYLINDER
(Superseded to 537253004)

Note: 2150EPA

$

$

Not available

5036654-01

Jonsered 503665401

DECOMPRESSION VALVE
(Superseded to 544200001)

$45.99

$

In Stock, only 1 left!

0

7255333-55

Jonsered 725533355

SCREW MC6S 5X25

$3.49

$

In Stock, Qty 6

0

5039713-01

Jonsered 503971301

GUARD

$7.99

$

In Stock, Qty 9

0

5370998-01

Jonsered 537099801

HEAT DEFLECTOR

Note: EPA

$11.99

$

In Stock, only 1 left!

0

5038625-01

Jonsered 503862501

GASKET

$5.99

$

In Stock, Qty 20+

0

5032890-10

Jonsered 503289010

PISTON RING

$30.99

$

In Stock, only 2 left!

0

5032890-11

Jonsered 503289011

%PISTON RING
(Superseded to 544435001)

Note: EPA

$

$

Not available

7374410-00

Jonsered 737441000

LOCKING RING

$3.49

$

In Stock, Qty 10

0

5038996-71

Jonsered 503899671

PISTON ASSY
(Superseded to 503899603)

$

$

Not available

5372234-02

Jonsered 537223402

PISTON
(Superseded to 537223404)

Note: EPA

$

$

Not available

5014516-01

Jonsered 501451601

RP SUPPORT BUSHING
(Superseded to 503256301)

$14.99

$

In Stock, only 2 left!

0

5038944-01

Jonsered 503894401

GASKET

$5.99

$

In Stock, Qty 12

0

5032351-08

Jonsered 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

Note: RCJ 7Y

$3.99

$

In Stock, Qty 20+

0
