CS 2145 - Jonsered Chainsaw (2003-01) CLUTCH OIL PUMP Parts Diagram

Chainsaw

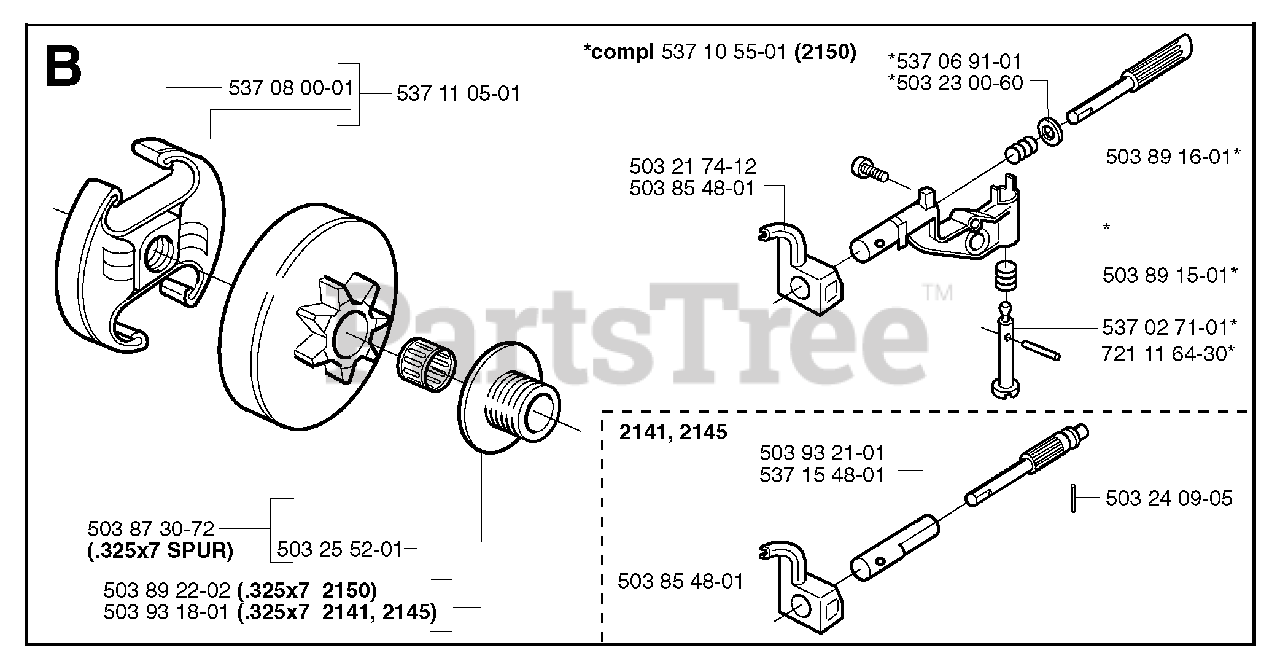

CLUTCH OIL PUMP Parts Diagram

  • Title

5370800-01

Jonsered 537080001

SPRING
(Superseded to 537359101)

$5.99

$

In Stock, Qty 5

0

5371105-01

Jonsered 537110501

CLUTCH ASSY
(Superseded to 537110503)

$45.99

$

In Stock, only 3 left!

0

5038730-72

Jonsered 503873072

CLUTCH DRUM
(Superseded to 503873073)

$44.99

$

In Stock, Qty 20+

0

5032552-01

Jonsered 503255201

NEEDLE BEARING

$

$

Not available

5038922-02

Jonsered 503892202

PINION

$5.99

$

In Stock, only 2 left!

0

5039318-01

Jonsered 503931801

PINION

$11.99

$

In Stock, Qty 14

0

5038548-01

Jonsered 503854801

SEAL

$9.49

$

In Stock, only 2 left!

0

5371548-01

Jonsered 537154801

PUMP CYLINDER

$13.99

$

In Stock, Qty 8

0

5039321-01

Jonsered 503932101

%PUMP PISTON
(Superseded to 540057901)

$20.99

$

In Stock, Qty 15

0

5038548-01

Jonsered 503854801

SEAL

$9.49

$

In Stock, only 2 left!

0

5032174-12

Jonsered 503217412

SCREW

$3.49

$

In Stock, only 1 left!

0

5371055-01

Jonsered 537105501

OIL PUMP
(Superseded to 537105503)

$31.99

$

In Stock, only 2 left!

0

5370691-01

Jonsered 537069101

%PUMP PISTON
(Superseded to 537069102)

$17.99

$

In Stock, only 2 left!

0

5032300-60

Jonsered 503230060

WASHER

$5.99

$

In Stock, only 1 left!

0

5032409-05

Jonsered 503240905

PIN

$3.49

$

In Stock, Qty 10

0

7211164-30

Jonsered 721116430

PIN

$3.49

$

In Stock, only 2 left!

0

5370271-01

Jonsered 537027101

SCREW

$6.99

$

In Stock, only 2 left!

0

5038915-01

Jonsered 503891501

SPRING

$6.49

$

In Stock, Qty 7

0

5038916-01

Jonsered 503891601

SPRING

$6.99

$

In Stock, only 3 left!

0
