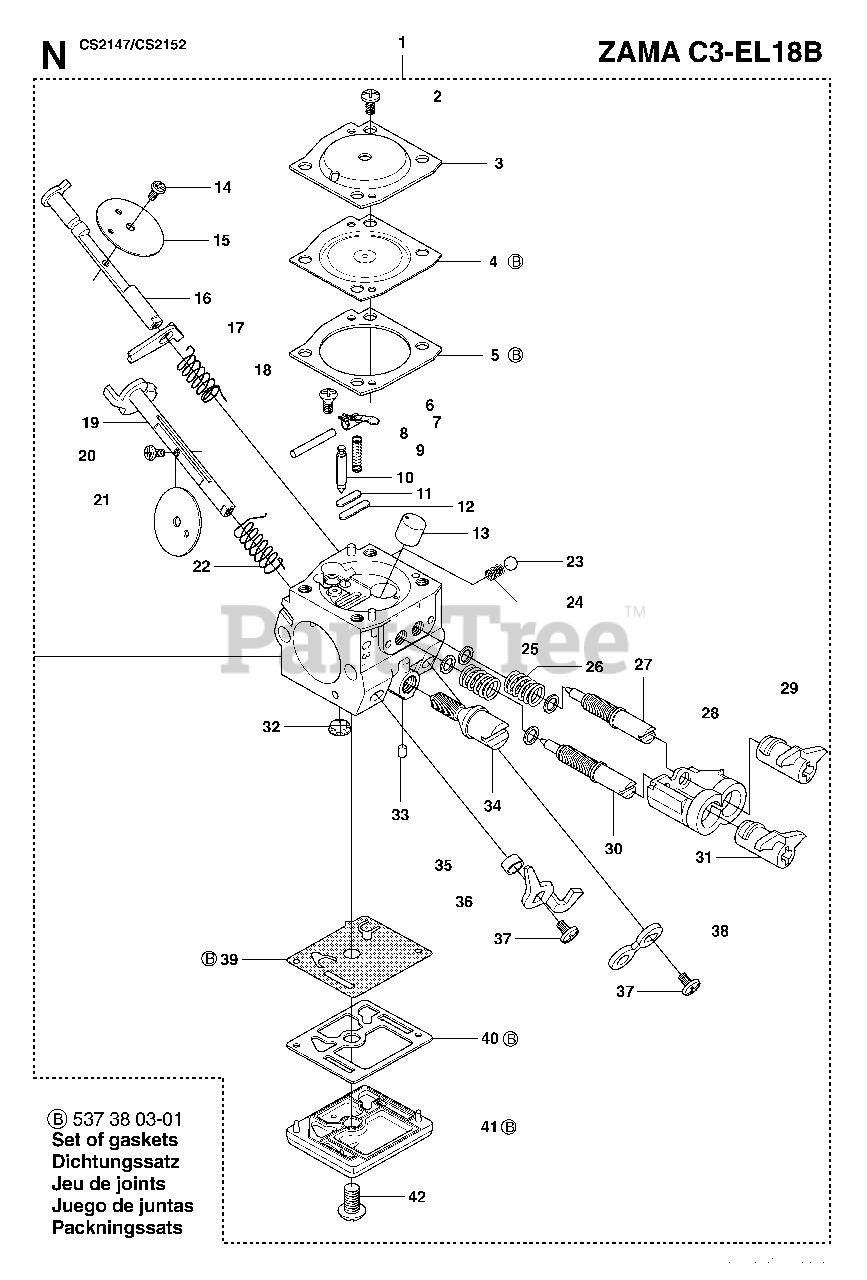

CS 2147 - Jonsered Chainsaw (2007-04) CARBURETOR Parts Diagram

Chainsaw

CARBURETOR Parts Diagram

  • Title

1

Jonsered 503283208

CARBURETOR C3-EL18

$107.99

$

In Stock, Qty 7

0

2

Jonsered 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 537176001

COVER

$8.99

$

Usually ships in 3-10 days

0

4

Jonsered 537175901

DIAPHRAGM

$24.99

$

In Stock, Qty 5

0

5

Jonsered 503884401

GASKET

$

$

Not available

6

Jonsered 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

7

Jonsered 537176401

LEVER

$7.49

$

In Stock, only 3 left!

0

8

Jonsered 503480001

PIN FULCRUM
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

9

Jonsered 537176301

SPRING

$6.49

$

In Stock, only 1 left!

0

10

Jonsered 537176201

VALVE

$24.99

$

In Stock, only 1 left!

0

11

Jonsered 537177801

PLUG

$4.99

$

In Stock, only 2 left!

0

12

Jonsered 503535601

PLUG

$7.49

$

In Stock, Qty 6

0

13

Jonsered 537416101

JET

$24.99

$

Usually ships in 3-10 days

0

14

Jonsered 503523601

SCREW

$3.99

$

Usually ships in 3-10 days

0

15

Jonsered 537266801

CHOKE FLAP

$8.99

$

Usually ships in 3-10 days

0

16

Jonsered 537266701

CHOKE SHAFT

$27.99

$

Usually ships in 3-10 days

0

17

Jonsered 544056701

THROTTLE LOCK

$8.07

$

Usually ships in 3-10 days

0

18

Jonsered 537176601

SPRING

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 537266301

THROTTLE SHAFT

$42.99

$

Usually ships in 3-10 days

0

20

Jonsered 503481801

SCREW

$3.99

$

In Stock, only 1 left!

0

21

Jonsered 537266601

THROTTLE FLAP

$8.93

$

Usually ships in 3-10 days

0

22

Jonsered 537176101

SPRING

$

$

Not available

23

Jonsered 537012501

BALL

$3.99

$

In Stock, Qty 7

0

24

Jonsered 537012601

SPRING

$3.99

$

In Stock, only 1 left!

0

25

Jonsered 503903101

WASHER

$

$

Not available

26

Jonsered 503480801

SPRING
(Superseded to 503994301)

$3.49

$

Usually ships in 3-10 days

0

27

Jonsered 537178501

JET

$14.99

$

Usually ships in 3-10 days

0

28

Jonsered 503903401

SLEEVE

$8.49

$

Usually ships in 3-10 days

0

29

Jonsered 503903301

LIMITER CAP

$6.49

$

Usually ships in 3-10 days

0

30

Jonsered 537267001

LOW SPEED NEEDLE

$30.99

$

Usually ships in 3-10 days

0

31

Jonsered 503903201

LIMITER CAP

$4.99

$

Usually ships in 3-10 days

0

32

Jonsered 503535701

STRAINER

$4.99

$

In Stock, only 4 left!

0

33

Jonsered 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

34

Jonsered 537177601

IDLE SCREW

$21.99

$

In Stock, only 4 left!

0

35

Jonsered 503481901

BUSHING *

$9.99

$

In Stock, only 4 left!

0

36

Jonsered 537176901

LEVER

$

$

Not available

37

Jonsered 503479001

SCREW

$3.99

$

In Stock, Qty 11

0

38

Jonsered 537177501

LEVER

$10.99

$

Usually ships in 3-10 days

0

39

Jonsered 537380201

PUMP DIAPHRAGM

$24.99

$

In Stock, only 2 left!

0

40

Jonsered 503616601

GASKET

$5.49

$

In Stock, Qty 6

0

41

Jonsered 537176801

COVER

$

$

Not available

42

Jonsered 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

B

Jonsered 537380301

GASKET SET

$34.99

$

In Stock, only 1 left!

0
