CS 2147 - Jonsered Chainsaw (2007-04) CRANKCASE Parts Diagram

Chainsaw

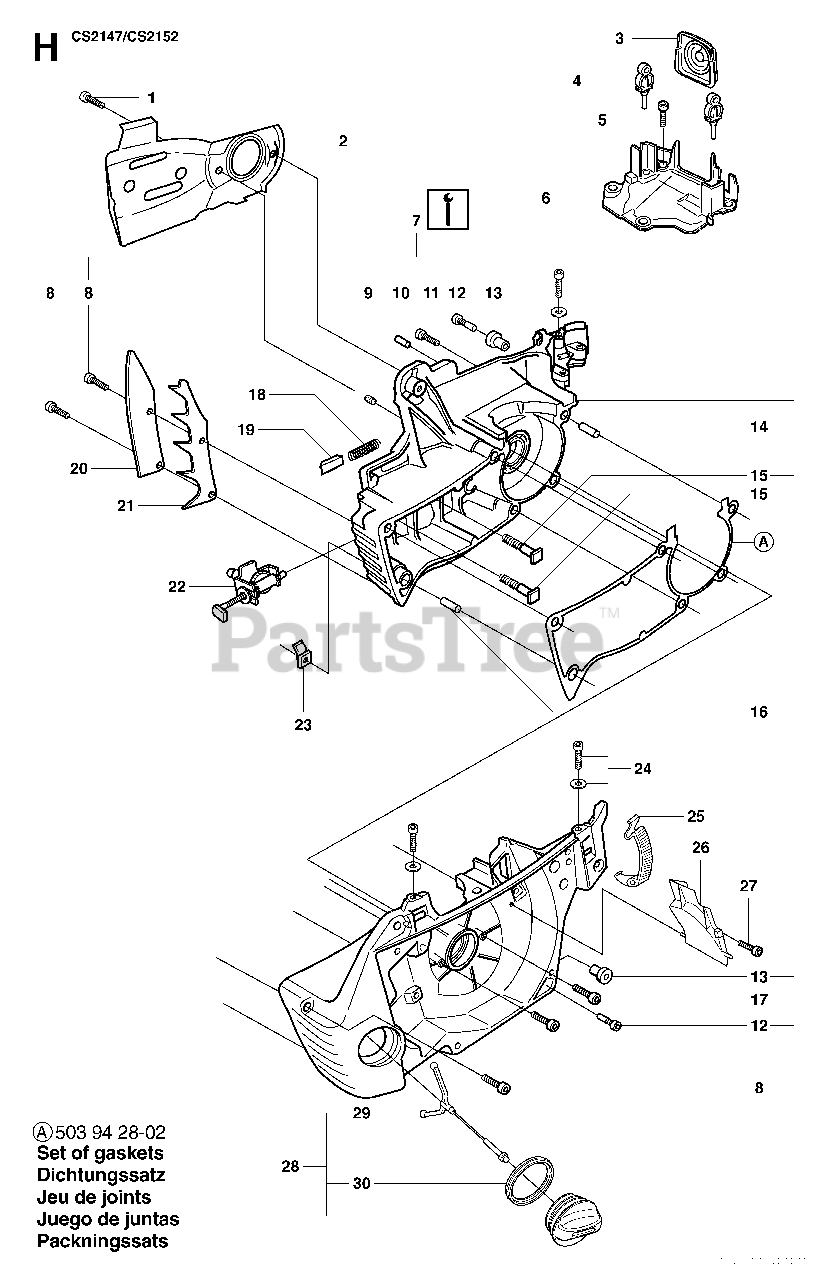

CRANKCASE Parts Diagram

  • Title

1

Jonsered 503217412

SCREW

$6.49

$

In Stock, Qty 10

0

2

Jonsered 503875601

PLATE

$15.99

$

In Stock, only 4 left!

0

3

Jonsered 537146501

BELLOWS

$24.99

$

In Stock, Qty 7

0

4

Jonsered 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

5

Jonsered 503217512

SCREW

$4.99

$

In Stock, only 2 left!

0

6

Jonsered 503896604

BASE

$13.84

$

Usually ships in 3-10 days

0

7

Jonsered 537171904

CRANKCASE ASSY.

$

$

Not available

8

Jonsered 503200776

SCREW

$7.49

$

In Stock, only 2 left!

0

9

Jonsered 537040301

VALVE

$6.99

$

In Stock, Qty 11

0

10

Jonsered 721120730

PIN

$4.99

$

In Stock, only 1 left!

0

11

Jonsered 503200870

SCREW

$4.99

$

Usually ships in 3-10 days

0

12

Jonsered 503215101

SCREW

$7.49

$

In Stock, Qty 11

0

13

Jonsered 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, Qty 16

0

14

Jonsered 503905601

SLEEVE

$

$

Not available

15

Jonsered 503875401

BOLT

$9.99

$

In Stock, Qty 14

0

16

Jonsered 503905601

SLEEVE

$

$

Not available

17

Jonsered 503202516

SCREW

$4.99

$

In Stock, only 2 left!

0

18

Jonsered 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 14

0

19

Jonsered 503892401

CATCH

$9.99

$

In Stock, Qty 5

0

20

Jonsered 503930401

BUMPER

$9.99

$

Usually ships in 3-10 days

0

21

Jonsered 503905901

FELLING DOG

$14.99

$

In Stock, only 1 left!

0

22

Jonsered 537071201

CHAIN TENSIONER

$47.99

$

In Stock, only 4 left!

0

23

Jonsered 503886301

CHAIN CATCHER

$10.99

$

In Stock, Qty 15

0

24

Jonsered 503213901

SCREW

$4.99

$

Usually ships in 3-10 days

0

25

Jonsered 503894702

BUCKLE

$18.99

$

In Stock, only 2 left!

0

26

Jonsered 503888601

DEFLECTOR

$10.99

$

In Stock, only 1 left!

0

27

Jonsered 503217412

SCREW

$6.49

$

In Stock, Qty 10

0

28

Jonsered 537281501

TANK CAP

$15.99

$

In Stock, only 1 left!

0

29

Jonsered 503578901

HOLDER

$9.99

$

In Stock, Qty 15

0

30

Jonsered 501626801

OILCAP GASKET

$7.49

$

In Stock, Qty 9

0

A

Jonsered 503942802

GASKET SET

$24.99

$

In Stock, only 2 left!

0
