CS 2147 - Jonsered Chainsaw (2007-04) CYLINDER PISTON Parts Diagram

Chainsaw

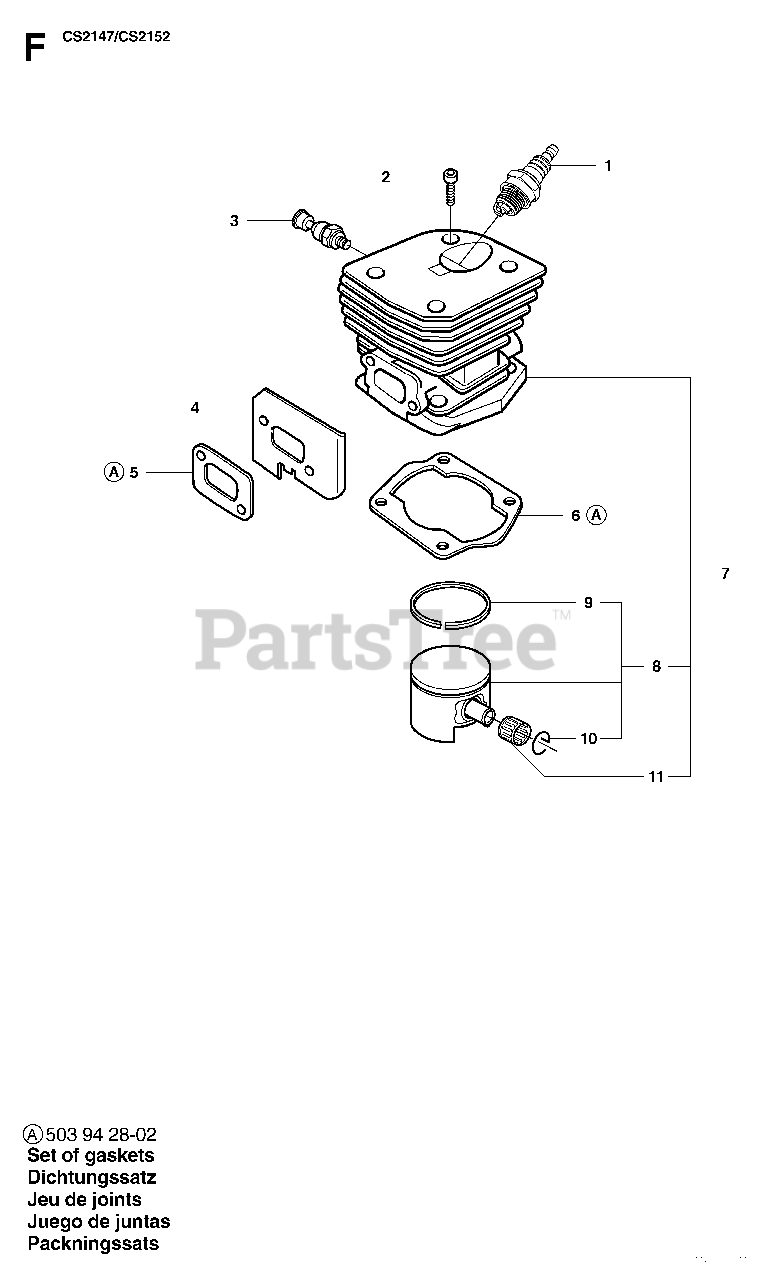

CYLINDER PISTON Parts Diagram

  • Title

1

Jonsered 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

2

Jonsered 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 20+

0

3

Jonsered 503665401

DECOMPRESSION VALVE
(Superseded to 544200001)

$67.99

$

In Stock, only 2 left!

0

4

Jonsered 503971301

GUARD

$12.99

$

Usually ships in 3-10 days

0

5

Jonsered 503862501

GASKET

$7.49

$

In Stock, Qty 17

0

6

Jonsered 503894401

GASKET

$8.99

$

In Stock, Qty 9

0

7

Jonsered 537253102

PISTON CYLINDER KIT 353
(Superseded to 537253104)

$194.99

$

In Stock, only 1 left!

0

7

Jonsered 503869871

CYLINDER

$

$

Not available

8

Jonsered 537223602

PISTON
(Superseded to 537223604)

$157.99

$

Usually ships in 3-10 days

0

8

Jonsered 503907371

PISTON ASSY

$136.99

$

Usually ships in 3-10 days

0

9

Jonsered 503289011

%PISTON RING
(Superseded to 544435001)

$31.99

$

In Stock, only 3 left!

0

9

Jonsered 503289005

PISTON RING

$31.99

$

In Stock, only 3 left!

0

10

Jonsered 737441000

LOCKING RING

$6.49

$

In Stock, only 2 left!

0

10

Jonsered 737441000

LOCKING RING

$6.49

$

In Stock, only 2 left!

0

11

Jonsered 501451601

RP SUPPORT BUSHING
(Superseded to 503256301)

$24.99

$

In Stock, only 4 left!

0

11

Jonsered 501451601

RP SUPPORT BUSHING
(Superseded to 503256301)

$24.99

$

In Stock, only 4 left!

0

A

Jonsered 503942802

GASKET SET

$24.99

$

In Stock, only 2 left!

0
