CS 2147 - Jonsered Chainsaw (2007-04) FUEL TANK Parts Diagram

Chainsaw

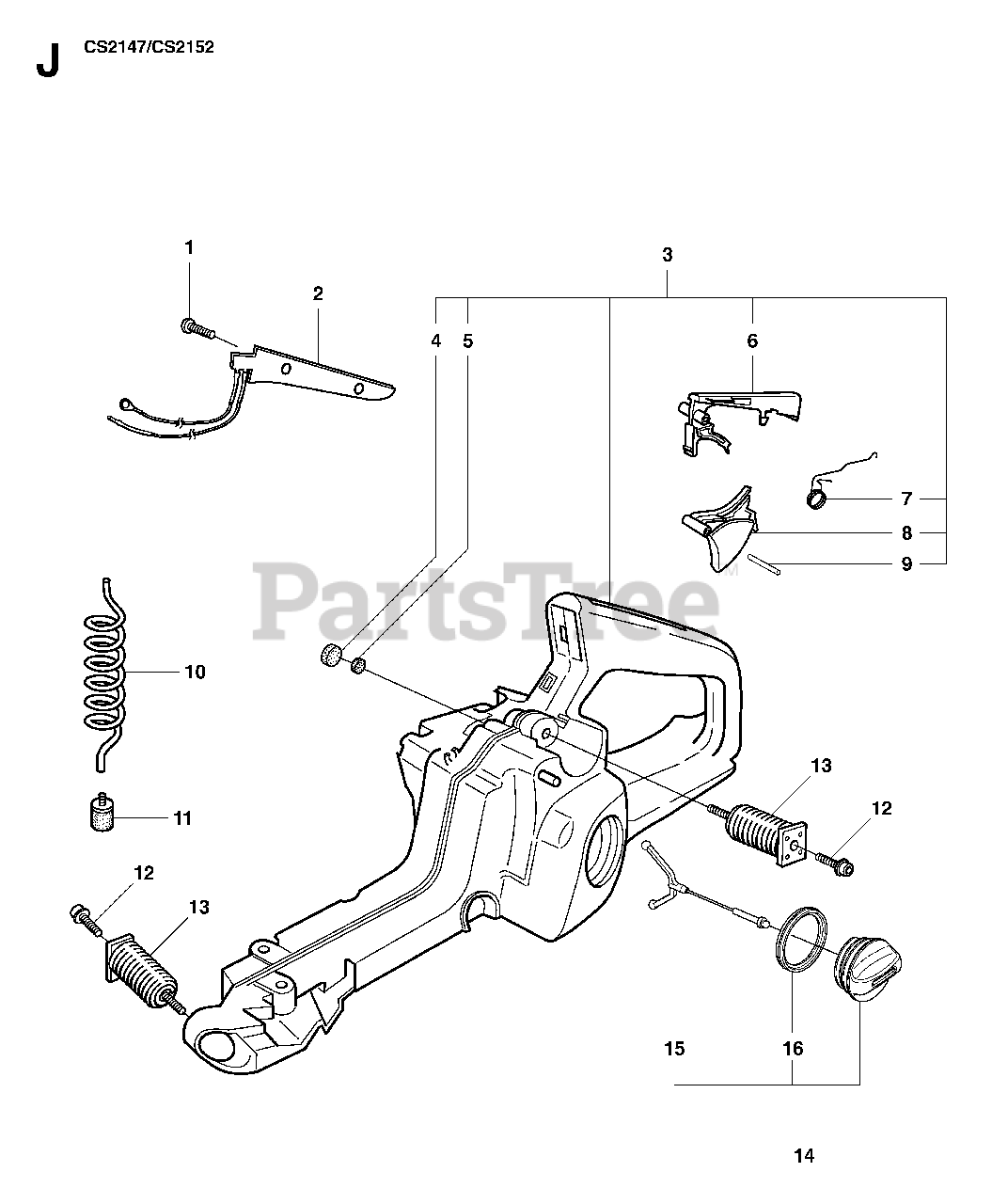

FUEL TANK Parts Diagram

  • Title

1

Jonsered 503213801

SCREW

$4.99

$

Usually ships in 3-10 days

0

2

Jonsered 503926101

PLATE (G)

$43.84

$

Usually ships in 3-10 days

0

3

Jonsered 503863704

TANK UNIT

$

$

Not available

4

Jonsered 503600401

FILTER PLUG

$7.49

$

In Stock, Qty 10

0

5

Jonsered 501629801

VALVE PLUG

$7.49

$

In Stock, Qty 17

0

6

Jonsered 503854402

THROTTLE LOCK

$10.99

$

In Stock, only 4 left!

0

7

Jonsered 503998601

SPRING

$9.99

$

In Stock, Qty 19

0

8

Jonsered 503854502

THROTTLE TRIGGER

$12.99

$

In Stock, only 4 left!

0

9

Jonsered 720182520

PIN

$2.49

$

In Stock, Qty 20+

0

10

Jonsered 544325002

FUEL HOSE
(Superseded to 591375201)

$4.99

$

In Stock, Qty 20+

0

11

Jonsered 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

12

Jonsered 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

13

Jonsered 503854101

VIBRATION ABSORBER

$24.99

$

In Stock, Qty 15

0

14

Jonsered 537215201

TANK CAP
(Superseded to 537215206)

$13.99

$

In Stock, only 3 left!

0

14

Jonsered 537215203

TANK CAP

$8.07

$

Usually ships in 3-10 days

0

15

Jonsered 503578901

HOLDER

$9.99

$

In Stock, Qty 15

0

15

Jonsered 503578901

HOLDER

$9.99

$

In Stock, Qty 15

0

16

Jonsered 537215001

SEALING
(Superseded to 589241101)

$8.99

$

In Stock, Qty 19

0

16

Jonsered 537215001

SEALING
(Superseded to 589241101)

$8.99

$

In Stock, Qty 19

0
