CS 2152 - Jonsered Chainsaw (2007-08) CLUTCH OIL PUMP Parts Diagram

Chainsaw

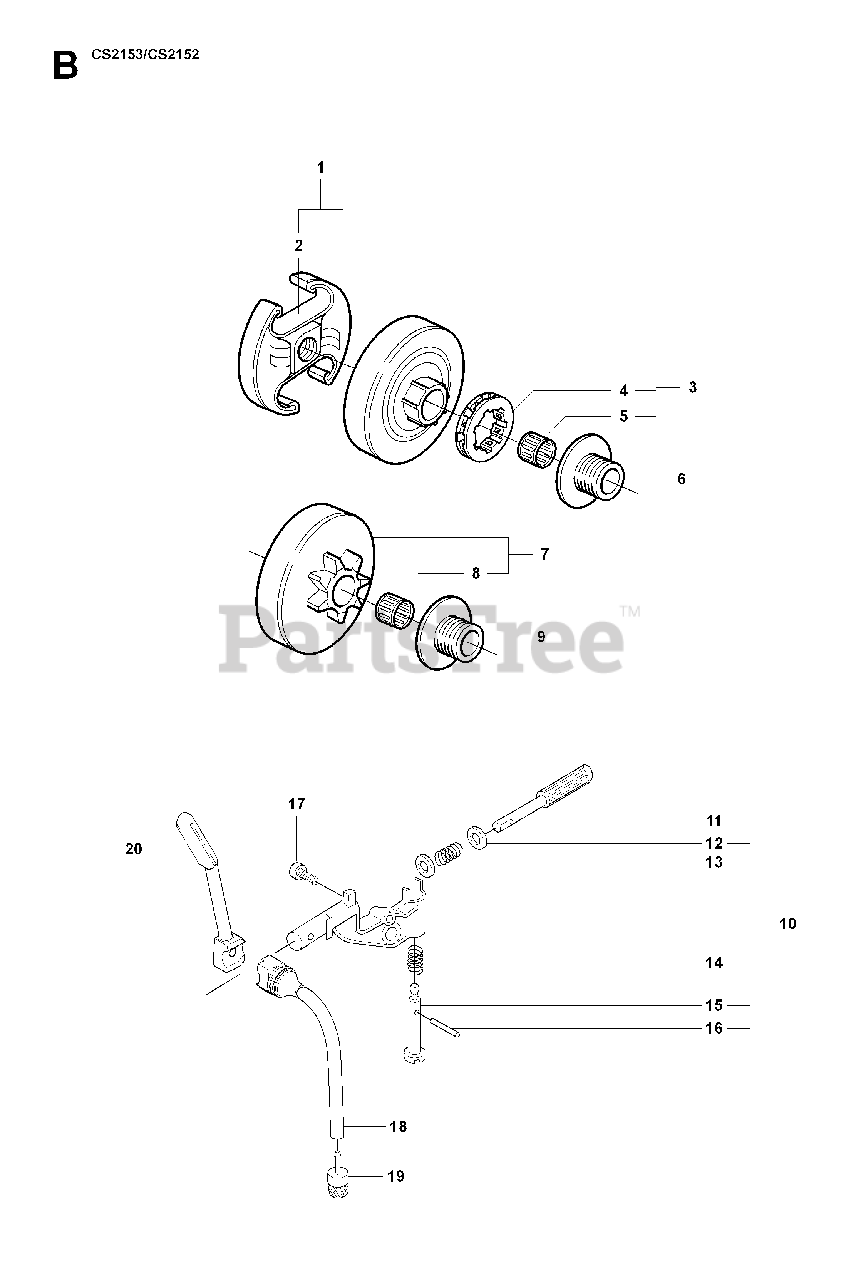

CLUTCH OIL PUMP Parts Diagram

  • Title

1

Jonsered 537110503

CLUTCH

$45.99

$

In Stock, Qty 11

0

2

Jonsered 537080001

SPRING
(Superseded to 537359101)

$5.99

$

In Stock, Qty 10

0

3

Jonsered 503980071

%CLUTCH DRUM
(Superseded to 503980002)

$45.99

$

In Stock, only 2 left!

0

4

Jonsered 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

$9.49

$

In Stock, Qty 18

0

5

Jonsered 503255201

NEEDLE BEARING

$

$

Not available

6

Jonsered 503892102

%PINION
(Superseded to 503892103)

$6.99

$

In Stock, only 2 left!

0

7

Jonsered 503873072

CLUTCH DRUM
(Superseded to 503873073)

$39.99

$

In Stock, Qty 20+

0

8

Jonsered 503255201

NEEDLE BEARING

$

$

Not available

9

Jonsered 503892002

PINION

$

$

Not available

10

Jonsered 544180103

OIL PUMP ASSY

$31.99

$

In Stock, only 2 left!

0

11

Jonsered 537069102

PUMP PISTON

$17.99

$

In Stock, only 2 left!

0

12

Jonsered 503230060

WASHER

$2.49

$

In Stock, only 1 left!

0

13

Jonsered 503891601

SPRING

$6.99

$

In Stock, only 3 left!

0

14

Jonsered 503891501

SPRING

$4.99

$

In Stock, Qty 7

0

15

Jonsered 537027101

SCREW

$6.99

$

In Stock, only 2 left!

0

16

Jonsered 721116430

PIN

$3.49

$

In Stock, only 2 left!

0

17

Jonsered 503217412

SCREW

$3.49

$

Usually ships in 3-10 days

0

18

Jonsered 537101101

HOSE
(Superseded to 537101102)

$13.99

$

In Stock, only 3 left!

0

19

Jonsered 504710003

OIL PLUMMET

$13.99

$

In Stock, only 1 left!

0

20

Jonsered 537413201

OIL PRESSURE HOSE

$13.99

$

In Stock, only 1 left!

0
