CS 2153 - Jonsered Chainsaw (2009-02) ELECTRICAL Parts Diagram

Chainsaw

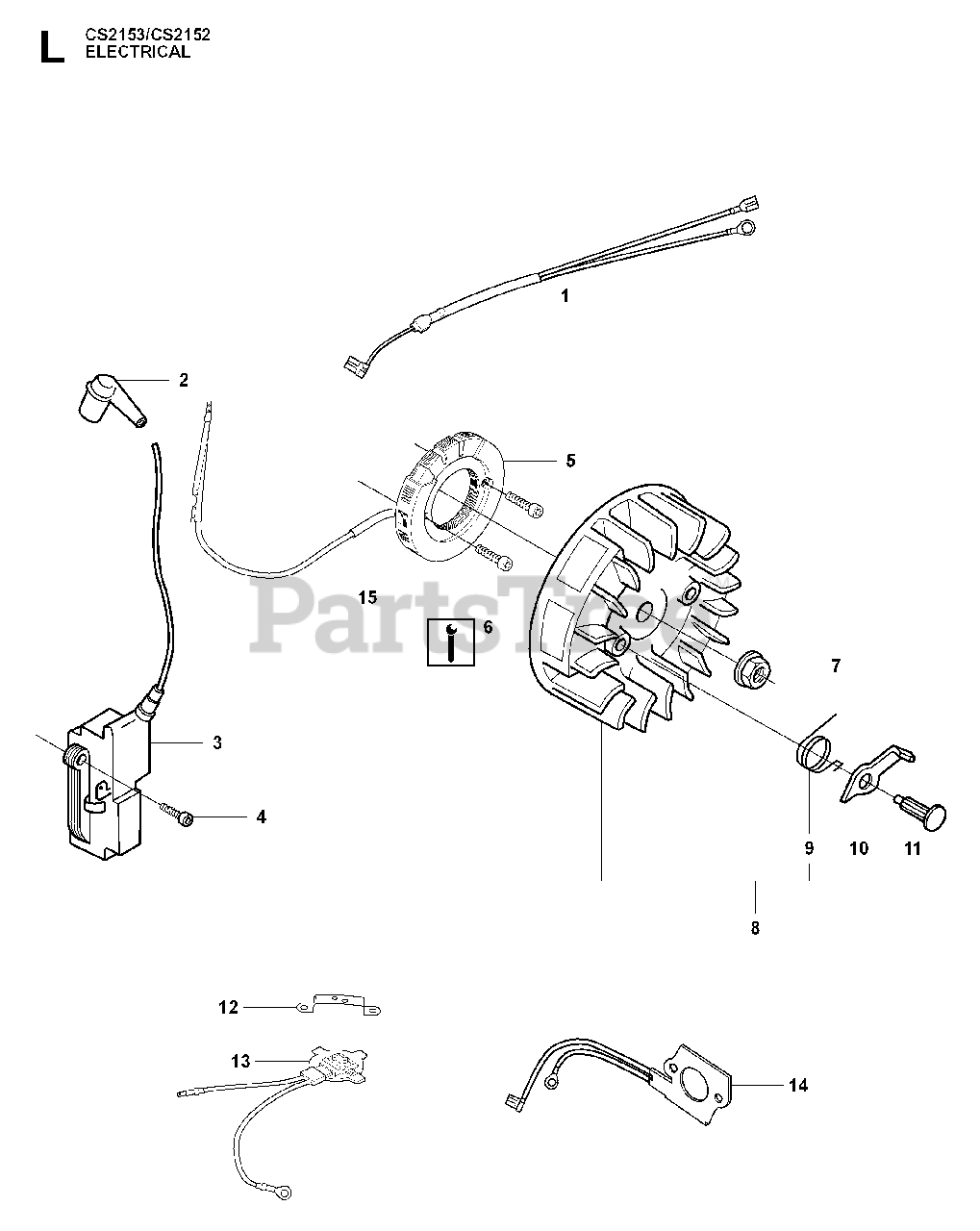

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 503898706

WIRING ASSY

$

$

Not available

1

Jonsered 503898704

WIRING ASSEMBLY

$

$

Not available

2

Jonsered 501485402

SPARK PLUG CONN. KIT

$15.99

$

In Stock, Qty 10

0

3

Jonsered 544047001

IGNITION MODULE

$62.99

$

In Stock, only 1 left!

0

3

Jonsered 501323801

%IGNITION MODULE
(Superseded to 510115501)

$

$

Not available

4

Jonsered 503215525

SCREW

$3.49

$

In Stock, Qty 11

0

5

Jonsered 537330201

GENERATOR

$

$

Not available

5

Jonsered 502609601

GENERATOR STATOR

$

$

Not available

6

Jonsered 503202516

SCREW

$3.49

$

Usually ships in 3-10 days

0

7

Jonsered 503220401

NUT W/ WASHER

$5.49

$

In Stock, Qty 5

0

8

Jonsered 503824301

FLYWHEEL

$136.99

$

Usually ships in 3-10 days

0

8

Jonsered 503824302

FLYWHEEL (G)

$

$

Not available

8

Jonsered 503824303

FLYWHEEL
(Superseded to 503824305)

$

$

Not available

9

Jonsered 503783201

%SPRING, STARTER CATCH
(Superseded to 529271101)

$3.49

$

In Stock, Qty 19

0

10

Jonsered 503895001

PAWL

$5.99

$

Usually ships in 3-10 days

0

11

Jonsered 503790502

RIVET

$4.99

$

Usually ships in 3-10 days

0

12

Jonsered 537060402

RETAINER

$

$

Not available

13

Jonsered 501986301

THERMOSTAT ASSY

$

$

Not available

14

Jonsered 504043201

HEATING PLATE

$

$

Not available

15

Jonsered 504043501

CABLE COVER

$

$

Not available
