CS 2153 - Jonsered Chainsaw (2011-05) CARBURETOR DETAILS Parts Diagram

Chainsaw

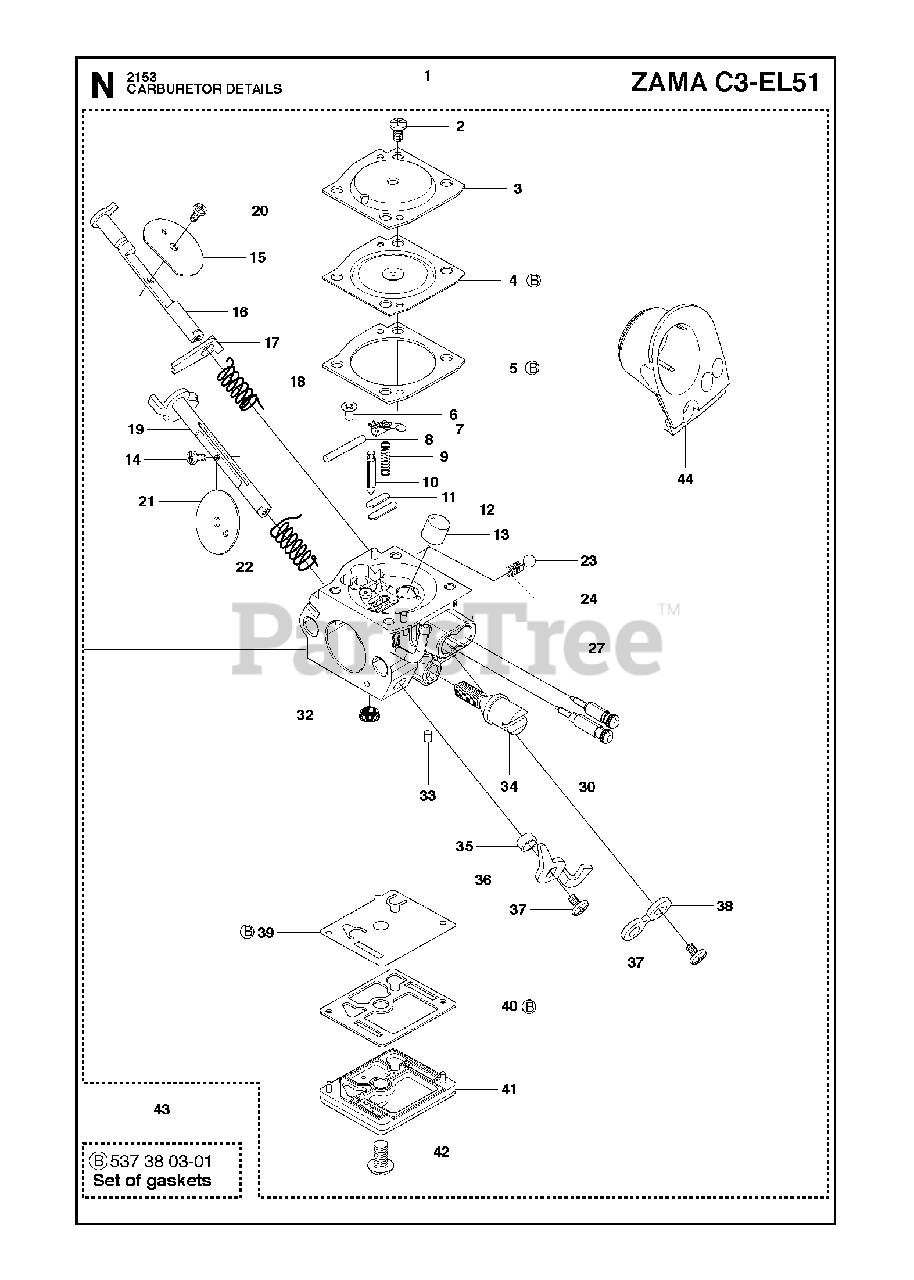

CARBURETOR DETAILS Parts Diagram

  • Title

1

Jonsered 580740201

No Description Available

$

$

Not available

2

Jonsered 503480501

SCREW

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

3

Jonsered 537176001

COVER

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

4

Jonsered 537175901

DIAPHRAGM

Note: . 1 43

$22.99

$

In Stock, only 2 left!

0

5

Jonsered 503884401

GASKET

Note: . 1 43

$

$

Not available

6

Jonsered 544082101

SCREW

Note: . 1

$5.49

$

Usually ships in 3-10 days

0

7

Jonsered 537176401

LEVER

Note: . 1

$9.49

$

In Stock, only 3 left!

0

8

Jonsered 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: . 1

$3.49

$

In Stock, only 1 left!

0

9

Jonsered 537176301

SPRING

Note: . 1

$5.99

$

In Stock, only 1 left!

0

10

Jonsered 537176201

VALVE

Note: . 1

$31.99

$

In Stock, only 1 left!

0

11

Jonsered 537177801

PLUG

Note: . 1

$4.99

$

In Stock, only 2 left!

0

12

Jonsered 503535601

PLUG

Note: . 1

$4.99

$

In Stock, Qty 6

0

13

Jonsered 537416101

JET

Note: . 1

$28.99

$

Usually ships in 3-10 days

0

14

Jonsered 503523601

SCREW

Note: . 1

$

$

Not available

15

Jonsered 544056601

CHOKE FLAP

Note: . 1

$

$

Not available

16

Jonsered 537266701

CHOKE SHAFT

Note: . 1

$31.99

$

Usually ships in 3-10 days

0

17

Jonsered 544056701

THROTTLE LOCK

Note: . 1

$

$

Not available

18

Jonsered 537176601

SPRING

Note: . 1

$

$

Not available

19

Jonsered 537266301

THROTTLE SHAFT

Note: . 1

$

$

Not available

20

Jonsered 503481801

SCREW

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

21

Jonsered 537266601

THROTTLE FLAP

Note: . 1

$

$

Not available

22

Jonsered 537176101

SPRING

Note: . 1

$

$

Not available

23

Jonsered 537012501

BALL

Note: . 1

$4.99

$

In Stock, Qty 6

0

24

Jonsered 537012601

SPRING

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

27

Jonsered 537178501

JET

Note: . 1

$

$

Not available

30

Jonsered 537267001

LOW SPEED NEEDLE

Note: . 1

$

$

Not available

32

Jonsered 503535701

STRAINER

Note: . 1

$5.49

$

In Stock, only 2 left!

0

33

Jonsered 503481101

PLUG

Note: . 1

$4.99

$

In Stock, only 1 left!

0

34

Jonsered 537177601

IDLE SCREW

Note: . 1

$13.99

$

In Stock, only 4 left!

0

35

Jonsered 503481901

BUSHING *

Note: . 1

$6.99

$

In Stock, only 4 left!

0

36

Jonsered 537176901

LEVER

Note: . 1

$

$

Not available

37

Jonsered 503479001

SCREW

Note: . 1

$3.49

$

In Stock, Qty 7

0

38

Jonsered 537177501

LEVER

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

39

Jonsered 537380201

PUMP DIAPHRAGM

Note: . 1 43

$20.99

$

In Stock, only 2 left!

0

40

Jonsered 503616601

GASKET

Note: . 1 43

$5.99

$

In Stock, Qty 6

0

41

Jonsered 537176801

COVER

Note: . 1

$

$

Not available

42

Jonsered 503479601

SCREW

Note: . 1

$6.99

$

In Stock, Qty 5

0

43

Jonsered 537380301

GASKET SET

Note: B Set of gaskets

$22.99

$

In Stock, only 2 left!

0

44

Jonsered 579347202

No Description Available

Note: . 1

$17.99

$

Usually ships in 3-10 days

0
