CS 2153 - Jonsered Chainsaw (2011-05) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

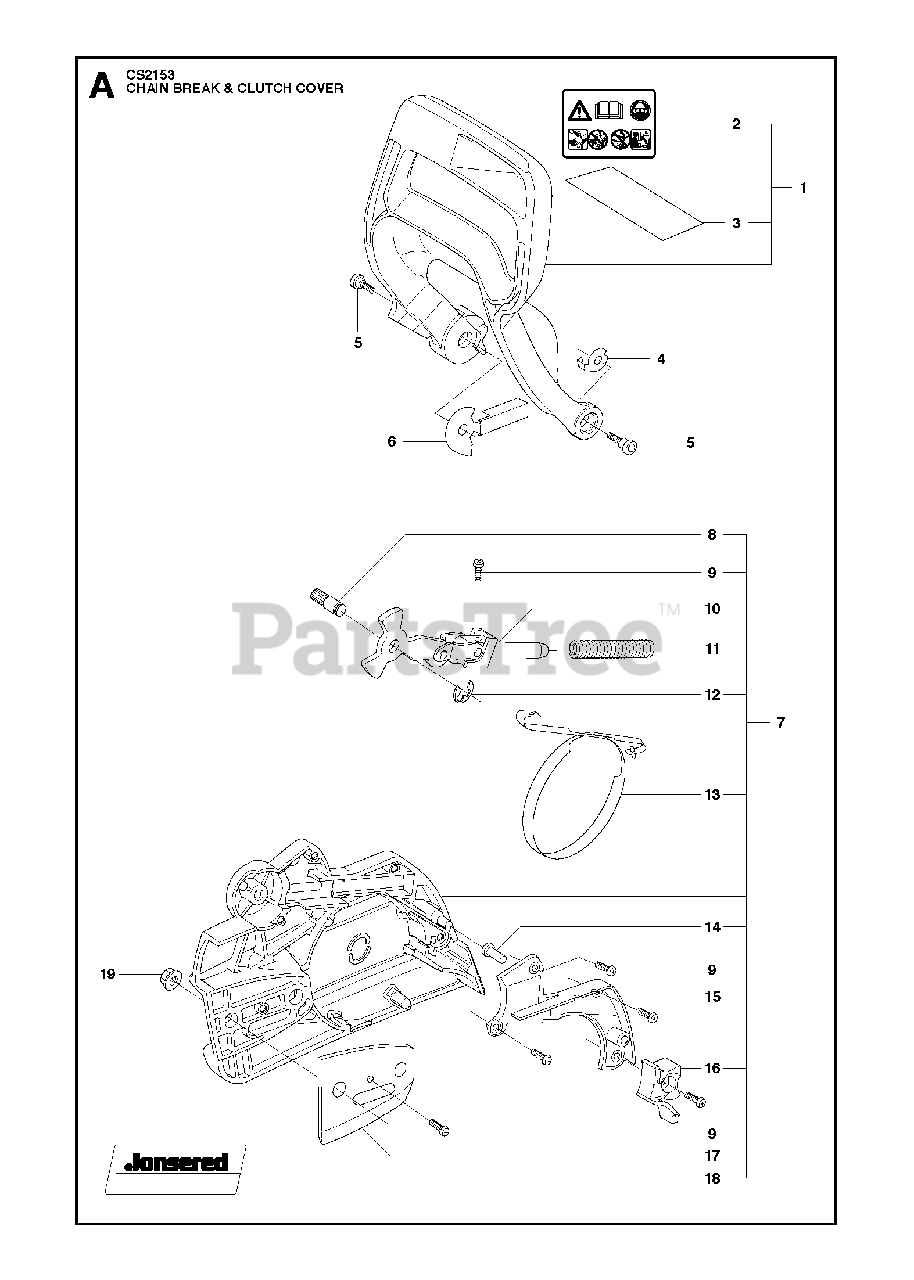

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title

1

Jonsered 537012103

HAND GUARD

$51.99

$

In Stock, only 2 left!

0

2

Jonsered 503987401

DECAL

Note: . 1

$4.99

$

In Stock, only 3 left!

0

3

Jonsered 537152701

PROTECTOR
(Superseded to 537159302)

Note: . 1

$33.99

$

In Stock, only 2 left!

0

4

Jonsered 503929501

WASHER

$

$

Not available

5

Jonsered 503893003

SCREW

$

$

Not available

6

Jonsered 537029901

PROTECTOR

$

$

Not available

7

Jonsered 537107901

CHAIN BRAKE

$

$

Not available

8

Jonsered 503892901

PIN

Note: . 7

$3.99

$

In Stock, Qty 9

0

9

Jonsered 503217072

SCREW

Note: . 7

$4.99

$

In Stock, only 3 left!

0

10

Jonsered 503890802

JOINT

Note: . 7

$26.99

$

In Stock, Qty 5

0

11

Jonsered 503465901

SPRING

Note: . 7

$8.49

$

In Stock, Qty 14

0

12

Jonsered 735310820

E-RING 4

Note: . 7

$3.99

$

In Stock, Qty 8

0

13

Jonsered 537043001

BRAKE BAND

Note: . 7

$

$

Not available

14

Jonsered 503855201

SLEEVE

Note: . 7

$5.99

$

In Stock, only 2 left!

0

15

Jonsered 537108001

COVER

Note: . 7

$8.49

$

In Stock, only 4 left!

0

16

Jonsered 537089001

PROTECTOR

Note: . 7

$7.49

$

Usually ships in 3-10 days

0

17

Jonsered 503856601

PLATE

Note: . 7

$6.99

$

Usually ships in 3-10 days

0

18

Jonsered 537006302

DECAL

Note: . 7

$

$

Not available

19

Jonsered 503220001

NUT M8 FLANGE

Note: . 7

$3.99

$

In Stock, Qty 18

0
