CS 2153 - Jonsered Chainsaw (2011-05) CRANKCASE Parts Diagram

Chainsaw

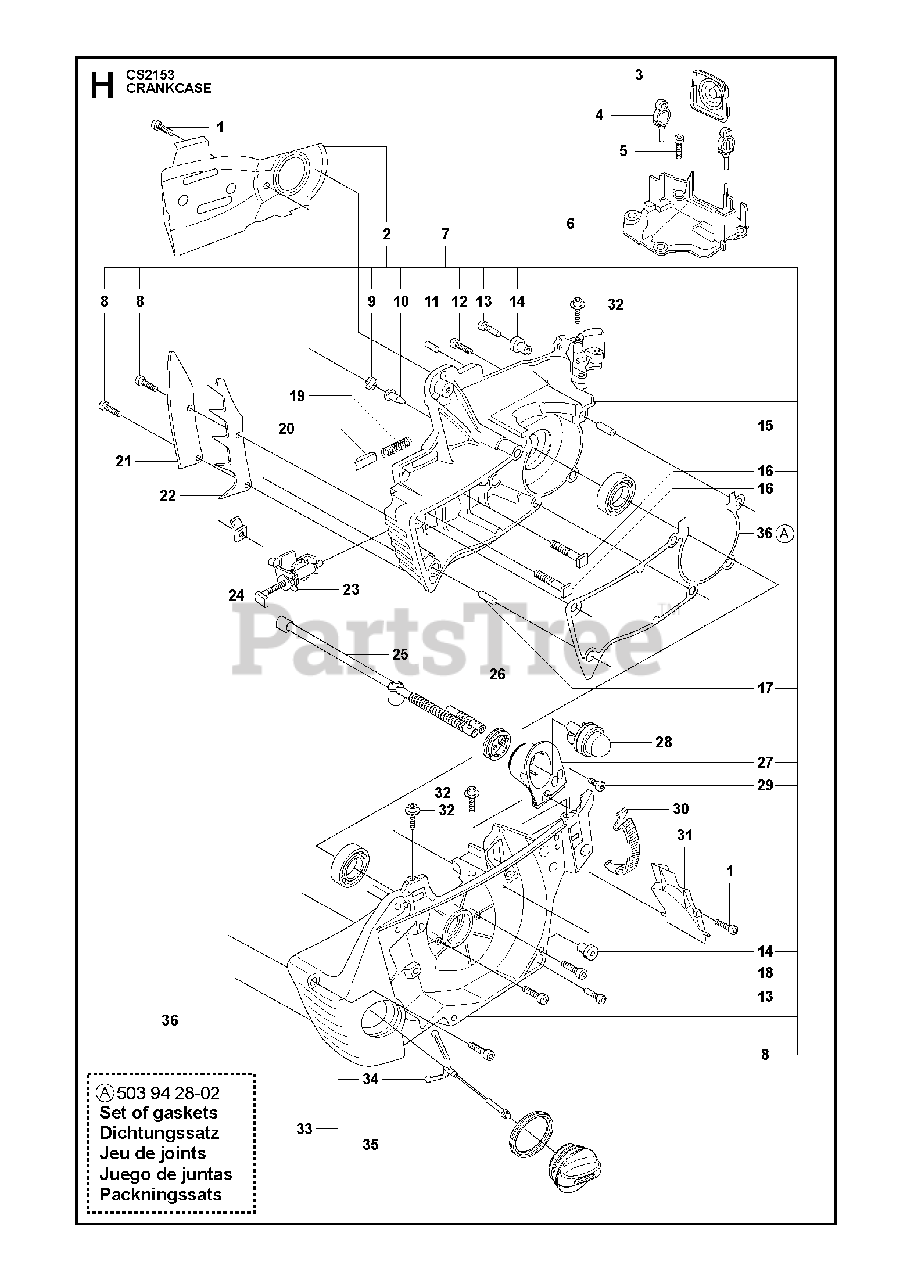

CRANKCASE Parts Diagram

  • Title

1

Jonsered 503217412

SCREW

$6.49

$

In Stock, Qty 10

0

2

Jonsered 537405601

CHAIN GUIDE PLATE

Note: . 7

$12.99

$

Usually ships in 3-10 days

0

3

Jonsered 537146501

BELLOWS

$24.99

$

In Stock, Qty 7

0

4

Jonsered 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

5

Jonsered 503217512

SCREW

$4.99

$

In Stock, only 2 left!

0

6

Jonsered 544360702

CARBURETTOR AREA BASE

$13.41

$

Usually ships in 3-10 days

0

7

Jonsered 537171906

CRANKCASE ASSY

$279.49

$

Usually ships in 3-10 days

0

8

Jonsered 503200776

SCREW

Note: . 7

$7.49

$

In Stock, only 2 left!

0

9

Jonsered 537403501

PLUG
(Superseded to 537403502)

Note: . 7

$3.99

$

In Stock, only 4 left!

0

10

Jonsered 530026119

VALVE-CHECK (DUCKBILL)

Note: . 7

$4.49

$

In Stock, Qty 14

0

11

Jonsered 721120730

PIN

Note: . 7

$4.99

$

In Stock, only 1 left!

0

12

Jonsered 503200870

SCREW

Note: . 7

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 503215101

SCREW

Note: . 7

$7.49

$

In Stock, Qty 11

0

14

Jonsered 503869201

MOVEMENT LIMITER

Note: . 7

$9.99

$

In Stock, Qty 16

0

15

Jonsered 503905601

SLEEVE

Note: . 7

$

$

Not available

16

Jonsered 503875401

BOLT

Note: . 7

$9.99

$

In Stock, Qty 14

0

17

Jonsered 503905601

SLEEVE

Note: . 7

$

$

Not available

18

Jonsered 503202516

SCREW

Note: . 7

$4.99

$

In Stock, only 2 left!

0

19

Jonsered 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 14

0

20

Jonsered 503892401

CATCH

$9.99

$

In Stock, Qty 5

0

21

Jonsered 503930401

BUMPER

$9.99

$

Usually ships in 3-10 days

0

22

Jonsered 503905901

FELLING DOG

$14.99

$

In Stock, only 1 left!

0

23

Jonsered 537071201

CHAIN TENSIONER

$47.99

$

In Stock, only 4 left!

0

24

Jonsered 503886301

CHAIN CATCHER

$10.99

$

In Stock, Qty 14

0

25

Jonsered 544331002

HOSE

$12.99

$

Usually ships in 3-10 days

0

26

Jonsered 504010901

LINING

$

$

Not available

27

Jonsered 579347202

No Description Available

Note: . 7

$13.99

$

Usually ships in 3-10 days

0

28

Jonsered 503936601

AIR PURGE BUBBLE

$18.99

$

In Stock, Qty 20+

0

29

Jonsered 544449701

SCREW IHSCT

Note: . 7

$7.49

$

In Stock, only 2 left!

0

30

Jonsered 503894702

BUCKLE

$18.99

$

In Stock, only 2 left!

0

31

Jonsered 503888601

DEFLECTOR

$10.99

$

In Stock, only 1 left!

0

32

Jonsered 503213901

SCREW

$4.99

$

Usually ships in 3-10 days

0

33

Jonsered 537281501

TANK CAP

$15.99

$

In Stock, only 1 left!

0

34

Jonsered 503578901

HOLDER

Note: . 33

$9.99

$

In Stock, Qty 15

0

35

Jonsered 501626801

OILCAP GASKET

Note: . 33

$7.49

$

In Stock, Qty 8

0

36

Jonsered 503942802

GASKET SET

Note: A Set of gaskets

$24.99

$

In Stock, only 2 left!

0
