CS 2159 - Jonsered Chainsaw (2010-02) CARBURETOR Parts Diagram

Chainsaw

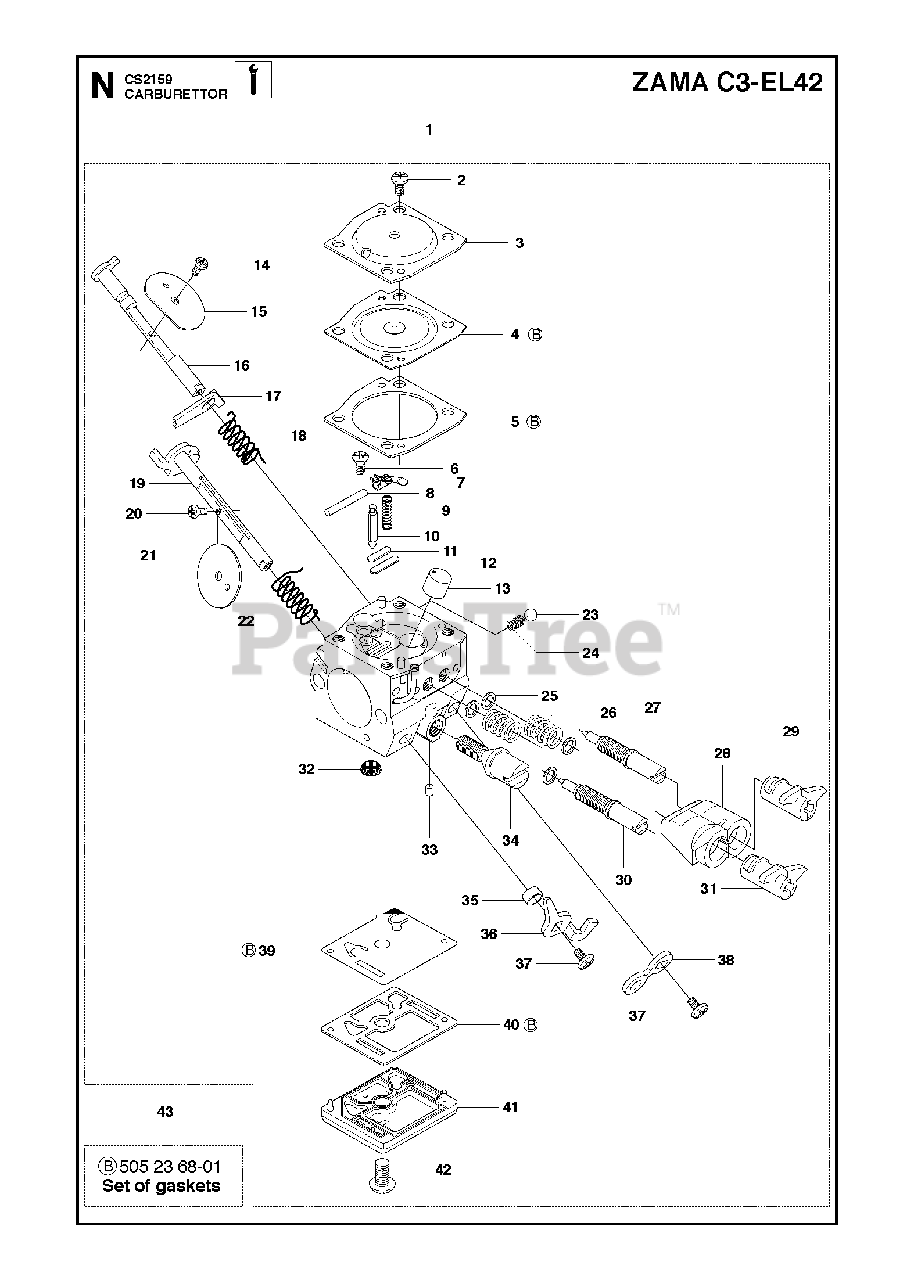

CARBURETOR Parts Diagram

  • Title

1

Jonsered 505203001

RP CARBURETOR
(Superseded to 505203002)

$125.99

$

In Stock, only 3 left!

0

2

Jonsered 503480501

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 537176001

COVER

Note: . 1

$8.99

$

Usually ships in 3-10 days

0

4

Jonsered 537175901

DIAPHRAGM

Note: . 1 43

$24.99

$

In Stock, Qty 5

0

5

Jonsered 505223901

No Description Available

Note: . 1 43

$5.99

$

Usually ships in 3-10 days

0

6

Jonsered 544082101

SCREW

Note: . 1

$4.49

$

Usually ships in 3-10 days

0

7

Jonsered 537176401

LEVER

Note: . 1

$7.49

$

In Stock, only 3 left!

0

8

Jonsered 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: . 1

$3.49

$

In Stock, only 1 left!

0

9

Jonsered 537176301

SPRING

Note: . 1

$6.49

$

In Stock, only 1 left!

0

10

Jonsered 537176201

VALVE

Note: . 1

$24.99

$

In Stock, only 1 left!

0

11

Jonsered 537177801

PLUG

Note: . 1

$4.99

$

In Stock, only 2 left!

0

12

Jonsered 503535601

PLUG

Note: . 1

$7.49

$

In Stock, Qty 6

0

13

Jonsered 505236701

NOZZLE ASSY

Note: . 1

$12.68

$

Usually ships in 3-10 days

0

14

Jonsered 503523601

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

15

Jonsered 537177201

CHOKE FLAP

Note: . 1

$

$

Not available

16

Jonsered 537177101

CHOKE SHAFT

Note: . 1

$21.91

$

Usually ships in 3-10 days

0

17

Jonsered 544056701

THROTTLE LOCK

Note: . 1

$8.07

$

Usually ships in 3-10 days

0

18

Jonsered 537176601

SPRING

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 537175701

THROTTLE SHAFT

Note: . 1

$13.41

$

Usually ships in 3-10 days

0

20

Jonsered 503481801

SCREW

Note: . 1

$3.99

$

In Stock, only 1 left!

0

21

Jonsered 537177001

THROTTLE FLAP

Note: . 1

$18.99

$

Usually ships in 3-10 days

0

22

Jonsered 537176101

SPRING

Note: . 1

$

$

Not available

23

Jonsered 537012501

BALL

Note: . 1

$3.99

$

In Stock, Qty 7

0

24

Jonsered 537012601

SPRING

Note: . 1

$3.99

$

In Stock, only 1 left!

0

25

Jonsered 503903101

WASHER

Note: . 1

$

$

Not available

26

Jonsered 503480801

SPRING
(Superseded to 503994301)

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

27

Jonsered 537178501

JET

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

28

Jonsered 503903401

SLEEVE

Note: . 1

$8.49

$

Usually ships in 3-10 days

0

29

Jonsered 503903301

LIMITER CAP

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

30

Jonsered 537178601

LOW SPEED NEEDLE

Note: . 1

$24.59

$

Usually ships in 3-10 days

0

31

Jonsered 503903201

LIMITER CAP

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

32

Jonsered 503535701

STRAINER

Note: . 1

$4.99

$

In Stock, only 4 left!

0

33

Jonsered 503481101

PLUG

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

34

Jonsered 504027301

SCREW

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

35

Jonsered 503481901

BUSHING *

Note: . 1

$9.99

$

In Stock, only 4 left!

0

36

Jonsered 537176901

LEVER

Note: . 1

$

$

Not available

37

Jonsered 503479001

SCREW

Note: . 1

$3.99

$

In Stock, Qty 11

0

38

Jonsered 537177501

LEVER

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

39

Jonsered 537380201

PUMP DIAPHRAGM

Note: . 1 43

$24.99

$

In Stock, only 2 left!

0

40

Jonsered 503616601

GASKET

Note: . 1 43

$5.49

$

In Stock, Qty 6

0

41

Jonsered 537176801

COVER

Note: . 1

$

$

Not available

42

Jonsered 503479601

SCREW

Note: . 1

$3.99

$

In Stock, Qty 5

0

43

Jonsered 505236801

KIT GASKET

Note: B Set of gaskets

$

$

Not available
