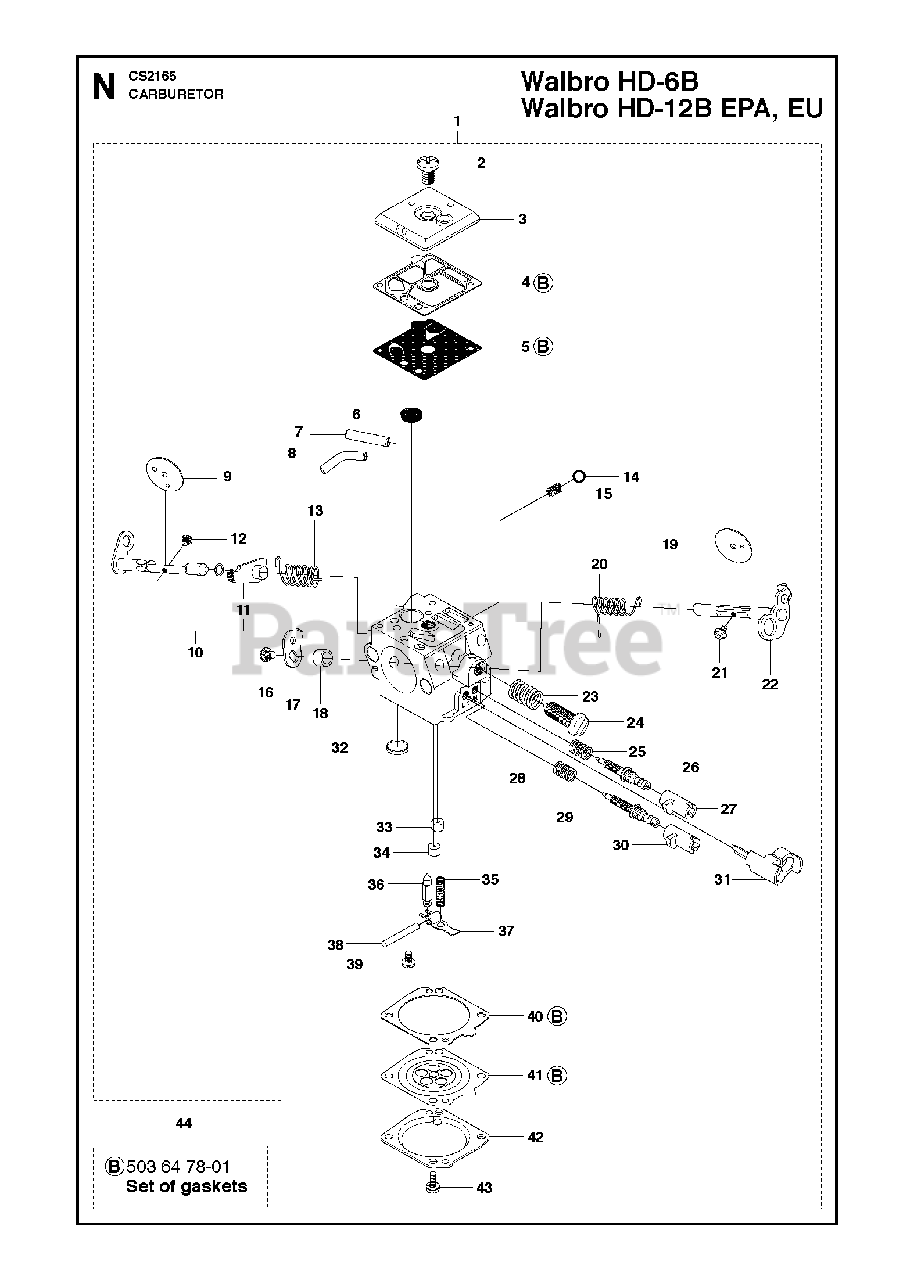

CS 2165 - Jonsered Chainsaw (2010-05) CARBURETOR Parts Diagram

Chainsaw

CARBURETOR Parts Diagram

  • Title

1

Jonsered 503281804

CARBURETOR WALBRO HD-6B
(Superseded to 503281805)

$100.99

$

Usually ships in 3-10 days

0

1

Jonsered 503281805

CARBURETOR HD-12B EPA WALBRO

Note: EPA EU

$182.99

$

In Stock, only 1 left!

0

2

Jonsered 501466901

SCREW

$3.99

$

In Stock, Qty 5

0

3

Jonsered 503799801

COVER

$5.99

$

Usually ships in 3-10 days

0

4

Jonsered 501666901

GASKET, PUMP SIDE

Note: . 1 44

$5.99

$

In Stock, Qty 5

0

5

Jonsered 502254701

PUMP DIAPHRAGM

Note: . 1 44

$5.99

$

In Stock, only 2 left!

0

6

Jonsered 501666101

FUEL INLET SCREEN

$6.99

$

Usually ships in 3-10 days

0

7

Jonsered 503855901

RP NIPPLE

$17.30

$

Usually ships in 3-10 days

0

8

Jonsered 503801401

TUBE

$4.99

$

In Stock, only 4 left!

0

9

Jonsered 503855801

CHOKE FLAP

$3.49

$

In Stock, only 1 left!

0

10

Jonsered 537019101

CHOKE SHAFT

$14.99

$

Usually ships in 3-10 days

0

11

Jonsered 537018901

LEVER

Note: . 1 10

$3.49

$

In Stock, only 1 left!

0

12

Jonsered 501468701

SCREW.

$6.49

$

Usually ships in 3-10 days

0

13

Jonsered 537019001

SPRING

$3.49

$

In Stock, only 4 left!

0

14

Jonsered 501468501

No Description Available
(Superseded to 530035107)

$

$

Not available

15

Jonsered 501468401

SPRING

$5.99

$

In Stock, only 1 left!

0

16

Jonsered 501468701

SCREW.

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 503799601

LEVER

$4.99

$

Usually ships in 3-10 days

0

18

Jonsered 503801501

BUSHING

$3.99

$

In Stock, only 1 left!

0

19

Jonsered 503800001

THROTTLE FLAP

$3.49

$

Usually ships in 3-10 days

0

20

Jonsered 503800901

SPRING

$4.99

$

Usually ships in 3-10 days

0

21

Jonsered 530035015

SCREW SHUTTERS

$

$

Not available

22

Jonsered 503799901

SHAFT

$9.49

$

Usually ships in 3-10 days

0

23

Jonsered 501667801

SPRING

$

$

Not available

24

Jonsered 503800801

SCREW

$20.99

$

In Stock, only 1 left!

0

25

Jonsered 501667701

SPRING

$2.49

$

In Stock, only 3 left!

0

26

Jonsered 503801101

SCREW

$4.99

$

In Stock, only 1 left!

0

26

Jonsered 503943901

IDLE SCREW

Note: H

$27.99

$

Usually ships in 3-10 days

0

27

Jonsered 503913901

LIMITER CAP

Note: H EPA EU

$

$

Not available

28

Jonsered 501667701

SPRING

Note: EPA EU

$2.49

$

In Stock, only 3 left!

0

29

Jonsered 504027213

IDLING SCREW

$4.99

$

Usually ships in 3-10 days

0

29

Jonsered 503943801

ADJUSTING SCREW

Note: L

$13.99

$

In Stock, only 1 left!

0

30

Jonsered 503914001

LIMITER CAP

Note: L EPA EU

$3.49

$

In Stock, only 1 left!

0

31

Jonsered 503915401

CAP

Note: EPA EU

$3.49

$

Usually ships in 3-10 days

0

32

Jonsered 503574201

WELCH PLUG

Note: EPA EU

$6.99

$

In Stock, only 4 left!

0

33

Jonsered 503800401

JET

$4.99

$

In Stock, only 1 left!

0

33

Jonsered 503943601

JET

Note: EPA EU

$13.99

$

Usually ships in 3-10 days

0

34

Jonsered 503688201

JET

$4.99

$

Usually ships in 3-10 days

0

34

Jonsered 537003301

JET

Note: EPA EU

$5.99

$

Usually ships in 3-10 days

0

35

Jonsered 503562401

SPRING

$4.99

$

In Stock, only 4 left!

0

35

Jonsered 503943701

No Description Available

Note: EPA EU

$0.99

$

Usually ships in 3-10 days

0

36

Jonsered 503563401

INLET NEEDLE

$6.49

$

In Stock, Qty 12

0

37

Jonsered 501668301

LEVER

$3.49

$

Usually ships in 3-10 days

0

38

Jonsered 505520125

FULCRUM PIN

$3.49

$

In Stock, only 3 left!

0

39

Jonsered 505316717

SCREW

$3.49

$

In Stock, Qty 5

0

40

Jonsered 504130905

GASKET

Note: . 1 44

$3.49

$

In Stock, Qty 5

0

41

Jonsered 503800701

GASKET

Note: . 1 44

$7.99

$

Usually ships in 3-10 days

0

42

Jonsered 537077601

IMPULSE COVER

$6.49

$

Usually ships in 3-10 days

0

43

Jonsered 503108701

SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, Qty 5

0

44

Jonsered 503647801

GASKET SET

Note: B Set of gaskets

$6.99

$

In Stock, Qty 12

0
