CS 2165 - Jonsered Chainsaw (2011-05) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

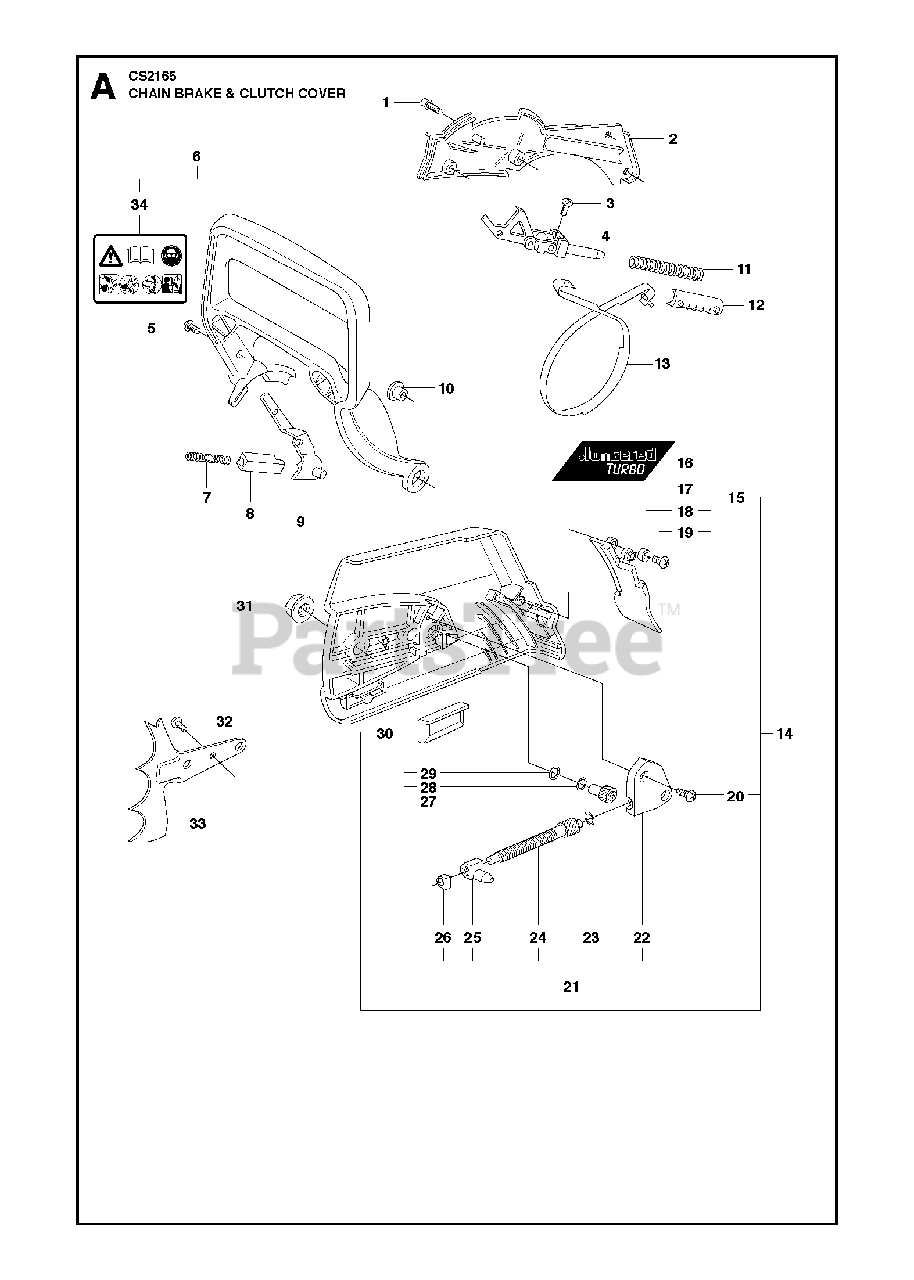

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title

1

Jonsered 503200212

SCREW
(Superseded to 503200712)

$7.49

$

In Stock, Qty 20+

0

2

Jonsered 503751103

COVER

$11.99

$

In Stock, Qty 8

0

3

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

4

Jonsered 501875303

KNEE LINK

$34.99

$

In Stock, only 3 left!

0

5

Jonsered 503202512

SCREW

$5.99

$

In Stock, Qty 20+

0

6

Jonsered 503719304

HAND GUARD

$69.99

$

In Stock, Qty 5

0

7

Jonsered 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 13

0

8

Jonsered 503838102

CATCH

$10.99

$

In Stock, Qty 9

0

9

Jonsered 537008702

BRAKE LEVER

$66.99

$

Usually ships in 3-10 days

0

10

Jonsered 503775201

BUSHING

$9.49

$

In Stock, Qty 20+

0

11

Jonsered 503709901

BRAKE SPRING
(Superseded to 503709902)

$12.99

$

In Stock, only 4 left!

0

12

Jonsered 503792702

SUPPORT

$7.99

$

In Stock, Qty 11

0

13

Jonsered 503752202

BRAKE BAND

$21.99

$

In Stock, Qty 7

0

14

Jonsered 537072001

CLUTCH COVER

$

$

Not available

15

Jonsered 537072071

CLUTCH COVER

Note: . 14

$82.99

$

Usually ships in 3-10 days

0

16

Jonsered 537244301

DECAL

Note: . 14 15

$6.99

$

Usually ships in 3-10 days

0

17

Jonsered 503762902

PROTECTOR

Note: . 14 15

$24.99

$

In Stock, Qty 12

0

18

Jonsered 503897001

WASHER

Note: . 14 15

$8.99

$

In Stock, Qty 5

0

19

Jonsered 503212810

SCREW

Note: . 14 15

$3.99

$

In Stock, Qty 20+

0

20

Jonsered 503212810

SCREW

Note: . 14

$3.99

$

In Stock, Qty 20+

0

21

Jonsered 537044102

KIT-CHAIN TENSIONER

Note: . 14

$60.99

$

In Stock, Qty 16

0

22

Jonsered 537016801

COVER

Note: . 14 21

$9.99

$

In Stock, Qty 6

0

23

Jonsered 503230066

WASHER

Note: . 14 21

$6.49

$

Usually ships in 3-10 days

0

24

Jonsered 537079502

WORM SCREW / ADJUSTER

Note: . 14 21

$24.99

$

In Stock, only 1 left!

0

25

Jonsered 503998301

COUPLING

Note: . 14 21

$18.99

$

In Stock, only 2 left!

0

26

Jonsered 537017401

SLEEVE

Note: . 14 21

$6.49

$

In Stock, Qty 6

0

27

Jonsered 537079402

SCREW

Note: . 14 21

$13.99

$

In Stock, Qty 7

0

28

Jonsered 503230063

WASHER

Note: . 14 21

$6.49

$

In Stock, Qty 7

0

29

Jonsered 740480702

O-RING

Note: . 14 21

$7.49

$

In Stock, only 1 left!

0

30

Jonsered 501517201

CHAIN GUIDE

Note: . 14

$8.99

$

In Stock, Qty 7

0

31

Jonsered 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

32

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

33

Jonsered 503719701

FELLING DOG

Note: WRAP

$26.99

$

In Stock, only 3 left!

0

34

Jonsered 503987401

DECAL

$10.99

$

In Stock, only 4 left!

0
