CS 2165 - Jonsered Chainsaw (2011-05) FUEL TANK Parts Diagram

Chainsaw

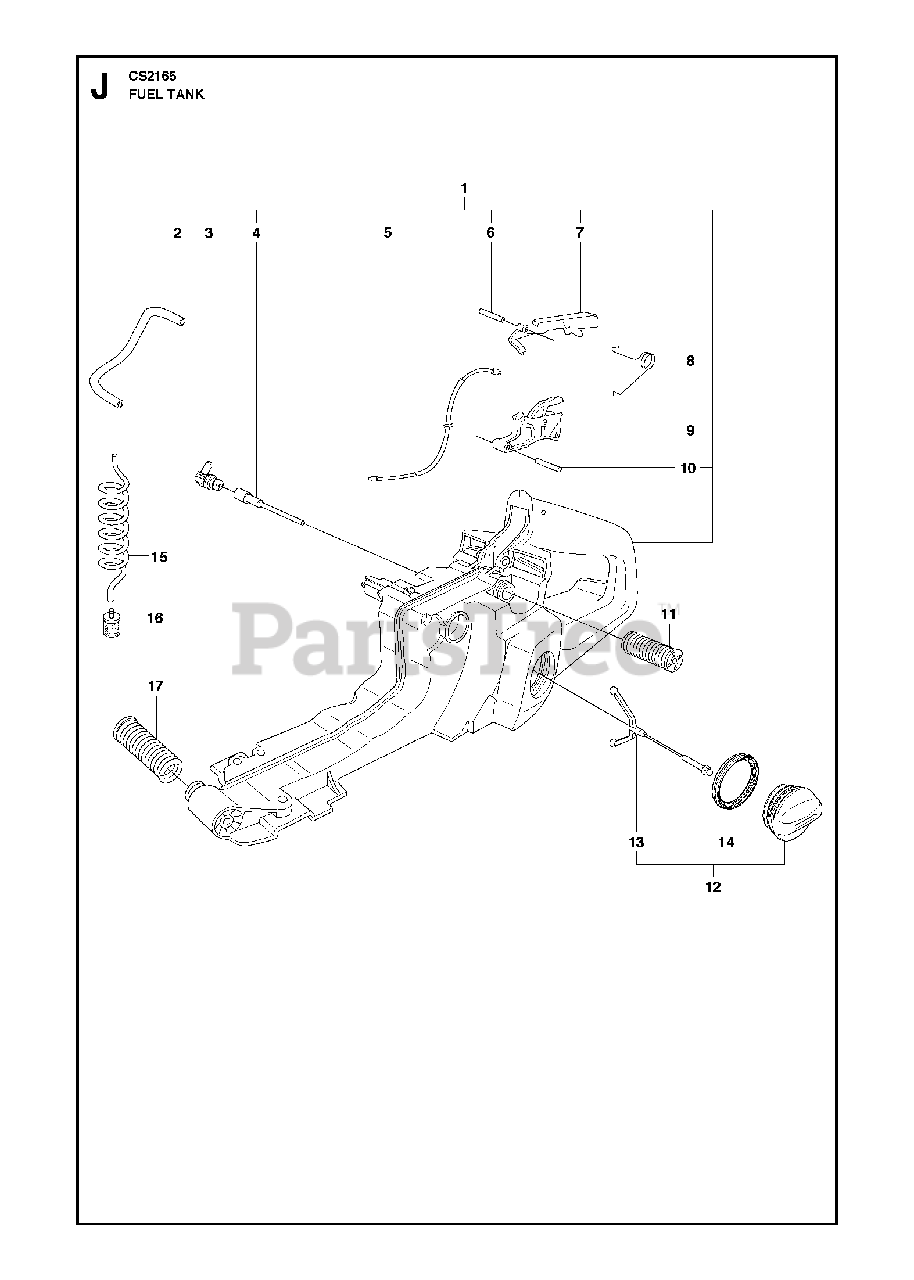

FUEL TANK Parts Diagram

  • Title

1

Jonsered 503719171

TANK
(Superseded to 503719104)

$148.99

$

Usually ships in 3-10 days

0

2

Jonsered 544324906

HOSE
(Superseded to 581756106)

Note: . 1

$8.99

$

In Stock, Qty 8

0

3

Jonsered 537099301

CONNECTOR

Note: . 1

$9.49

$

In Stock, only 3 left!

0

4

Jonsered 537092201

TANK VALVE

Note: . 1

$18.99

$

In Stock, Qty 5

0

5

Jonsered 503717601

WIRE

Note: . 1

$31.99

$

In Stock, only 1 left!

0

6

Jonsered 720124020

PIN 3X25
(Superseded to 720182520)

Note: . 1

$2.49

$

In Stock, Qty 20+

0

7

Jonsered 503556602

THROTTLE LOCK

Note: . 1

$10.99

$

In Stock, Qty 8

0

8

Jonsered 503736401

SPRING

Note: . 1

$10.99

$

In Stock, only 4 left!

0

9

Jonsered 503829802

THROTTLE TRIGGER

Note: . 1

$

$

Not available

10

Jonsered 720127220

PIN CPH8 4X20

Note: . 1

$6.99

$

In Stock, only 1 left!

0

11

Jonsered 503895601

ANTIVIBE MOUNT

Note: Std

$21.99

$

In Stock, Qty 9

0

11

Jonsered 503895602

ANTIVIBE MOUNT

Note: Hard

$31.99

$

In Stock, Qty 7

0

12

Jonsered 537215201

TANK CAP
(Superseded to 537215206)

$13.99

$

In Stock, only 2 left!

0

13

Jonsered 503578901

HOLDER

Note: . 12

$9.99

$

In Stock, Qty 15

0

14

Jonsered 537215001

SEALING
(Superseded to 589241101)

Note: . 12

$8.99

$

In Stock, Qty 17

0

15

Jonsered 544325002

FUEL HOSE
(Superseded to 591375201)

$4.99

$

In Stock, Qty 20+

0

16

Jonsered 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

17

Jonsered 503637601

ANTIVIBE MOUNT

Note: Std

$34.99

$

Usually ships in 3-10 days

0

17

Jonsered 503637602

AV SPRING (HARD)

Note: Hard

$23.07

$

Usually ships in 3-10 days

0
