CS 2171 - Jonsered Chainsaw (2011-05) HEATED HANDLES Parts Diagram

Chainsaw

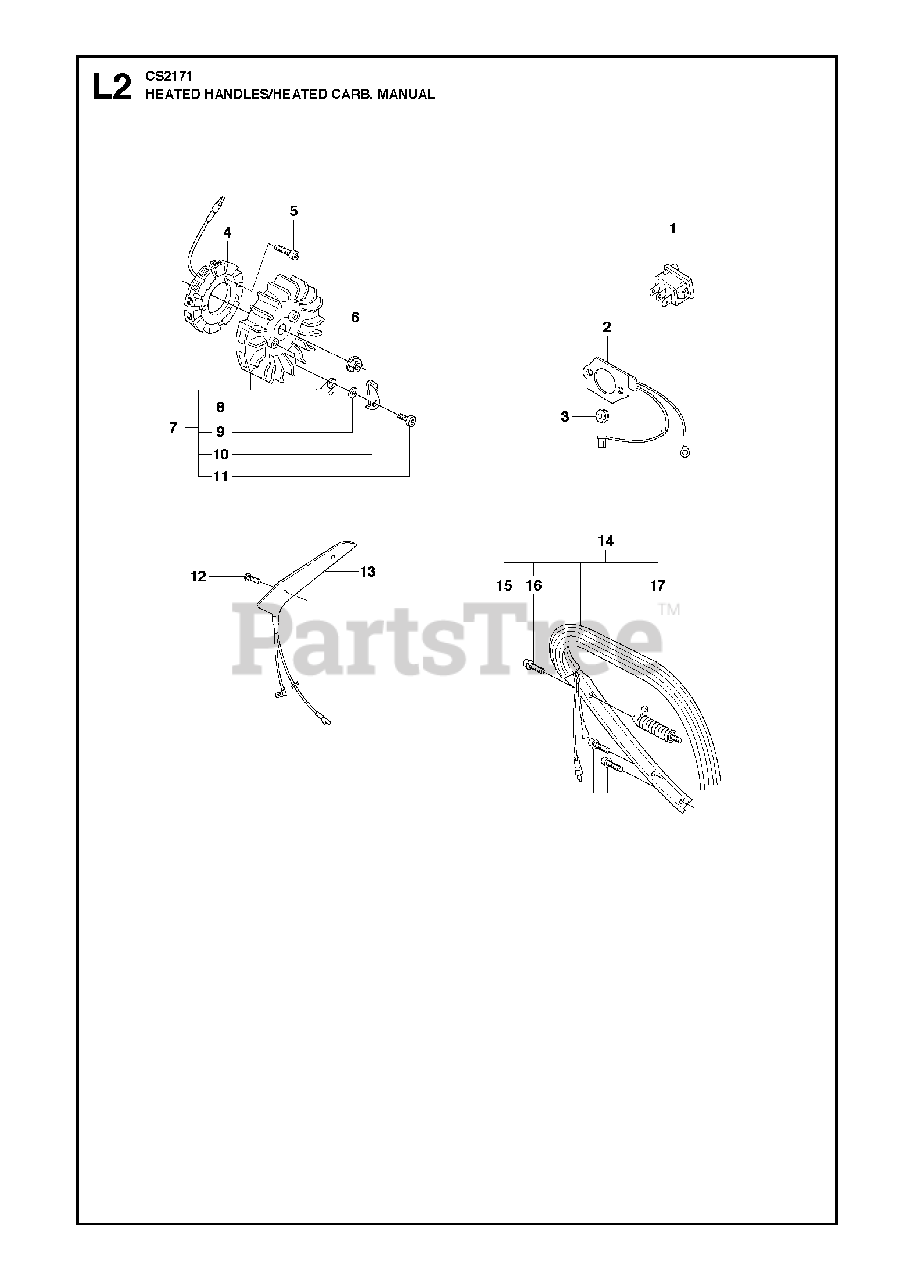

HEATED HANDLES Parts Diagram

  • Title

1

Jonsered 503640201

SWITCH

$21.99

$

Usually ships in 3-10 days

0

2

Jonsered 537153701

FOIL ELEMENT

$73.84

$

Usually ships in 3-10 days

0

3

Jonsered 501430001

GROMMET

$6.49

$

Usually ships in 3-10 days

0

4

Jonsered 501802403

GENERATOR

$115.14

$

Usually ships in 3-10 days

0

5

Jonsered 503202616

SCREW

$5.99

$

In Stock, Qty 7

0

6

Jonsered 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 6

0

7

Jonsered 537051604

FLY WHEEL

$226.99

$

Usually ships in 3-10 days

0

8

Jonsered 501673501

SPRING

Note: . 7

$7.49

$

In Stock, Qty 20+

0

9

Jonsered 503230042

WASHER

Note: . 7

$6.49

$

In Stock, Qty 10

0

10

Jonsered 537015501

PAWL

Note: . 7

$9.49

$

In Stock, only 1 left!

0

11

Jonsered 501819901

SCREW M5X14

Note: . 7

$6.49

$

In Stock, Qty 8

0

12

Jonsered 503213801

SCREW

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 503705901

PLATE (G)

$68.99

$

Usually ships in 3-10 days

0

14

Jonsered 503803002

FRONT HANDLE

$135.01

$

Usually ships in 3-10 days

0

15

Jonsered 503214916

SCREW
(Superseded to 503214972)

Note: . 14

$10.99

$

In Stock, Qty 20+

0

16

Jonsered 503210522

SCREW

Note: . 14

$7.99

$

In Stock, Qty 20+

0

17

Jonsered 503684502

ANTIVIBE MOUNT

Note: . 14

$31.99

$

In Stock, only 2 left!

0
