CS 2171 - Jonsered Chainsaw (2011-05) HEATED HANDLES Parts Diagram

Chainsaw

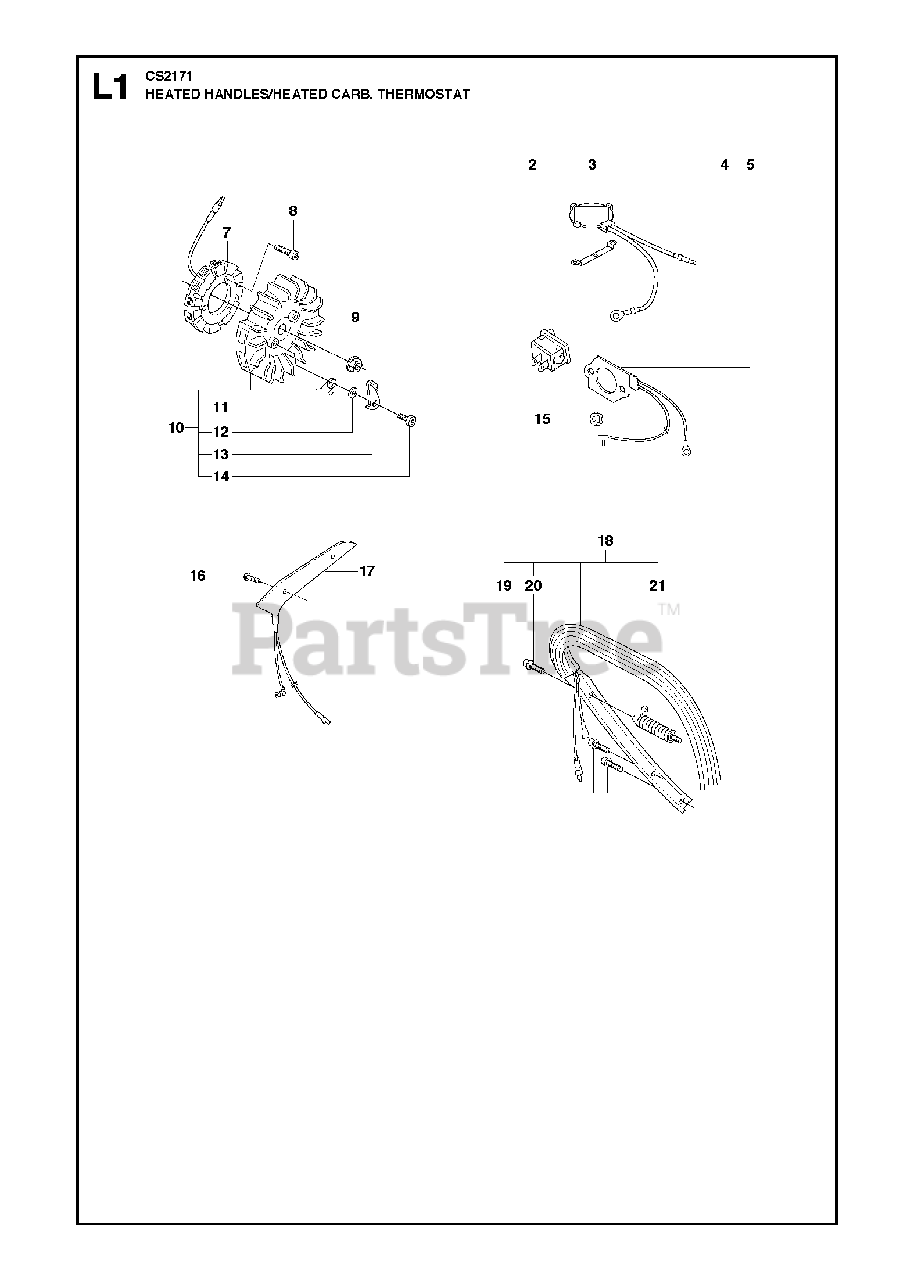

HEATED HANDLES Parts Diagram

  • Title

2

Jonsered 537060401

BRACKET

$

$

Not available

3

Jonsered 537189801

THERMOSTAT

$131.99

$

Usually ships in 3-10 days

0

4

Jonsered 503554901

SWITCH

$

$

Not available

5

Jonsered 537071402

FOIL ELEMENT

$77.99

$

Usually ships in 3-10 days

0

7

Jonsered 537071802

GENERATOR

$136.99

$

Usually ships in 3-10 days

0

8

Jonsered 503202616

SCREW

$4.99

$

In Stock, only 3 left!

0

9

Jonsered 503220401

NUT W/ WASHER

$5.49

$

In Stock, Qty 12

0

10

Jonsered 537051606

FLYWHEEL

$239.99

$

Usually ships in 3-10 days

0

11

Jonsered 501673501

SPRING

Note: . 10

$3.49

$

In Stock, Qty 19

0

12

Jonsered 503230042

WASHER

Note: . 10

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 537015501

PAWL

Note: . 10

$6.99

$

In Stock, only 3 left!

0

14

Jonsered 501819901

SCREW M5X14

Note: . 10

$5.49

$

In Stock, only 1 left!

0

15

Jonsered 501430001

GROMMET

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 503213801

SCREW

$

$

Not available

17

Jonsered 503705901

PLATE (G)

$

$

Not available

18

Jonsered 503803002

FRONT HANDLE

$

$

Not available

19

Jonsered 503214916

SCREW
(Superseded to 503214972)

Note: . 18

$5.99

$

In Stock, Qty 20+

0

20

Jonsered 503210522

SCREW

Note: . 18

$5.99

$

In Stock, Qty 5

0

21

Jonsered 503684502

ANTIVIBE MOUNT

Note: . 18

$

$

Not available
