CS 2172 - Jonsered Chainsaw (2010-08) CYLINDER PISTON Parts Diagram

Chainsaw

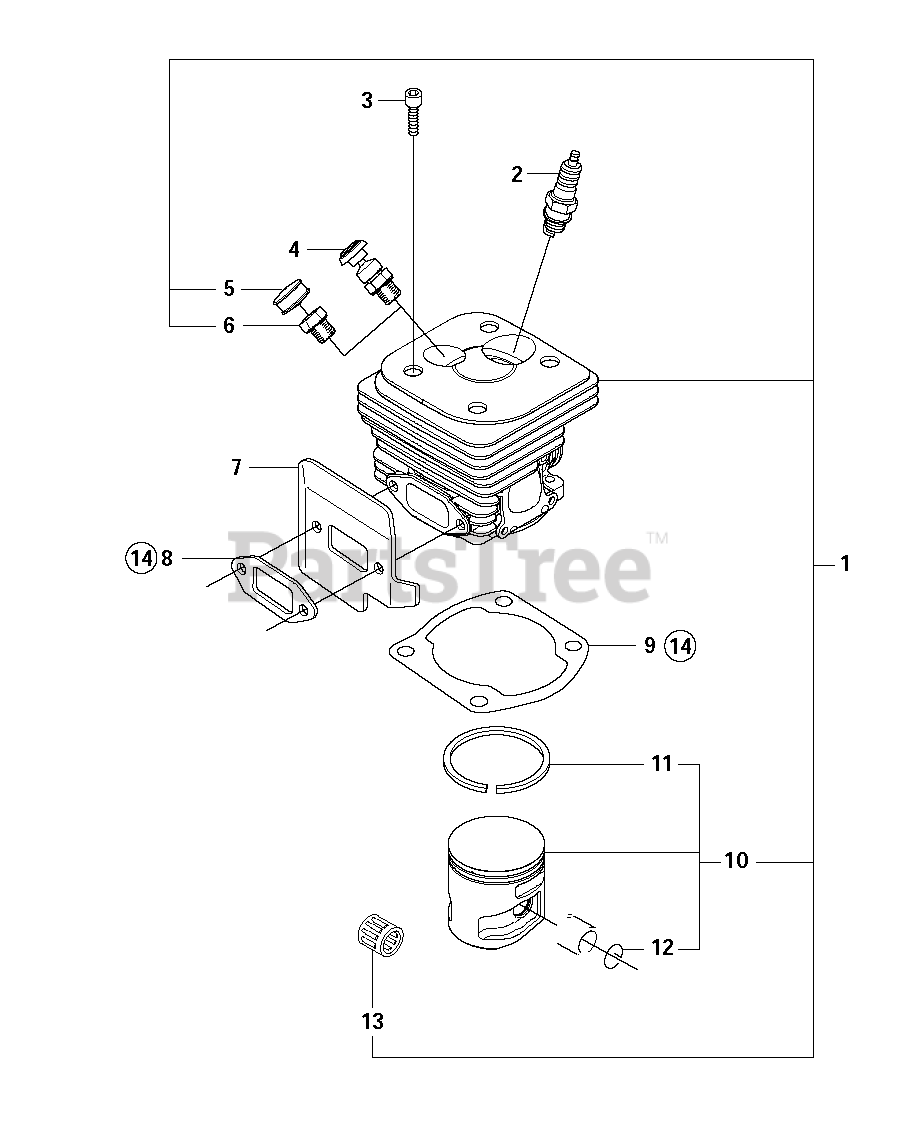

CYLINDER PISTON Parts Diagram

  • Title

1

Jonsered 575255702

CYLINDER ASSY

$

$

Not available

2

Jonsered 503235111

BPMR7A NGK SPARK PLUG

Note: NGK BPMR7A

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 725533355

SCREW MC6S 5X25

$3.49

$

In Stock, Qty 6

0

4

Jonsered 537294401

VALVE
(Superseded to 584288701)

$45.99

$

Usually ships in 3-10 days

0

5

Jonsered 537207101

PLUG

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

6

Jonsered 503552201

CYLINDER PLUG

Note: . 1

$12.99

$

In Stock, only 3 left!

0

7

Jonsered 523049101

DEFLECTOR

$10.99

$

In Stock, only 2 left!

0

8

Jonsered 503775901

GASKET

Note: . 14

$9.99

$

In Stock, Qty 13

0

9

Jonsered 503961501

GASKET

Note: . 14

$7.99

$

In Stock, Qty 8

0

10

Jonsered 577207702

PISTON ASSY

Note: . 1

$131.99

$

Usually ships in 3-10 days

0

11

Jonsered 576818401

PISTON RING

Note: . 1 10

$23.99

$

In Stock, only 1 left!

0

12

Jonsered 737431200

No Description Available

Note: . 1 10

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 503255601

SUPPORT BUSHING
(Superseded to 577572401)

Note: . 1

$17.99

$

In Stock, only 2 left!

0

14

Jonsered 503647201

GASKET SET

Note: Set of gaskets. 1

$21.99

$

In Stock, only 2 left!

0
