CS 2186 - Jonsered Chainsaw (2009-05) CLUTCH OIL PUMP Parts Diagram

Chainsaw

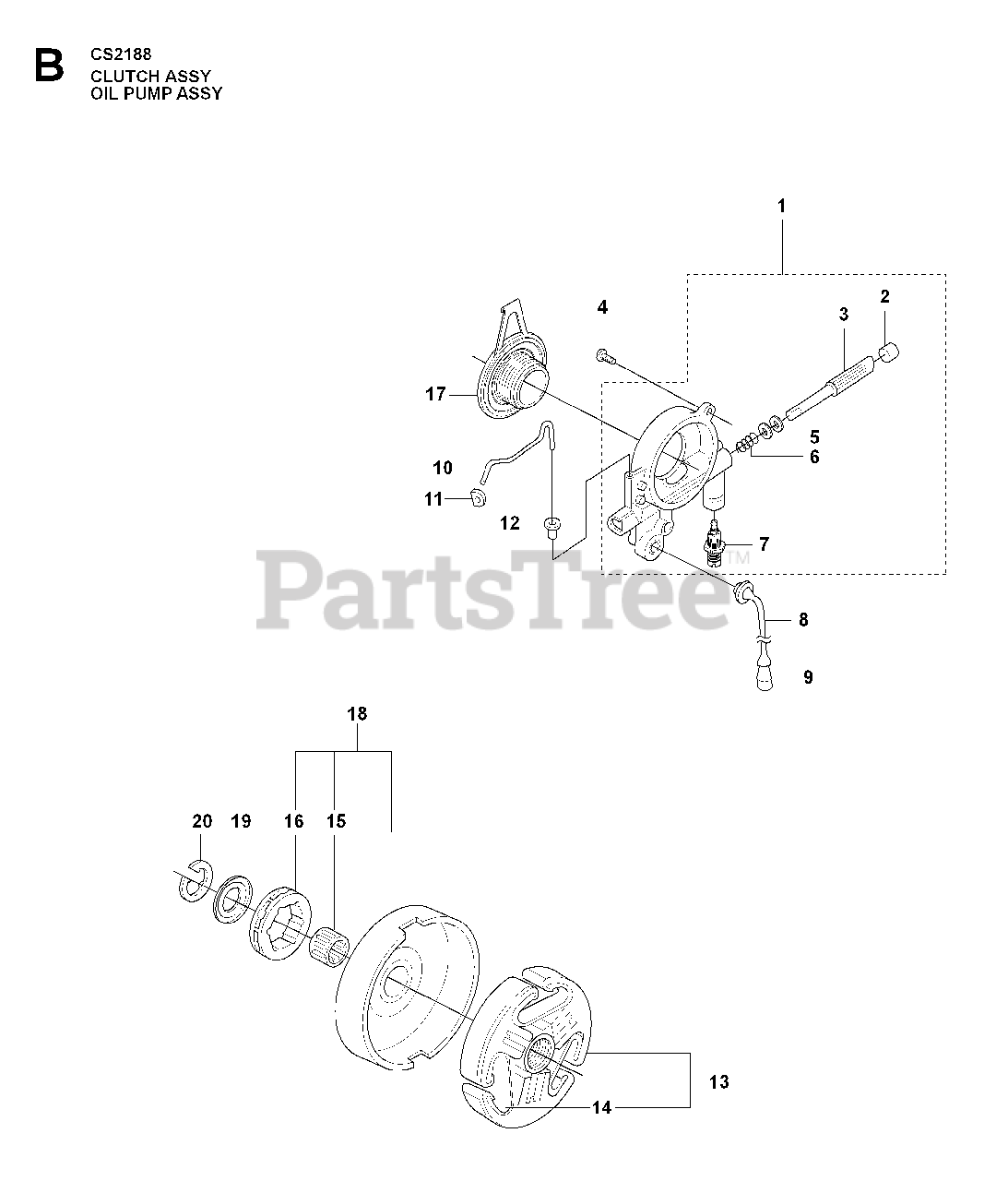

CLUTCH OIL PUMP Parts Diagram

  • Title

1

Jonsered 503521305

OIL PUMP

$102.99

$

In Stock, only 2 left!

0

2

Jonsered 503624901

PLUG

Note: . 1

$6.99

$

In Stock, only 2 left!

0

3

Jonsered 537106401

PUMP PISTON

Note: . 1

$17.99

$

Usually ships in 3-10 days

0

4

Jonsered 725532956

SCREW MC6S 5X16
(Superseded to 725532955)

$7.99

$

In Stock, Qty 16

0

5

Jonsered 503230004

WASHER 6.1X9

Note: . 1

$2.49

$

In Stock, only 2 left!

0

6

Jonsered 501615801

SPRING

Note: . 1

$6.99

$

Usually ships in 3-10 days

0

7

Jonsered 537396001

INSERT OIL PUMP
(Superseded to 537396002)

Note: . 1

$11.99

$

In Stock, only 2 left!

0

8

Jonsered 503426701

OIL HOSE

$11.99

$

In Stock, only 4 left!

0

9

Jonsered 501544102

OIL SCREEN

$20.99

$

In Stock, only 1 left!

0

10

Jonsered 503774301

PIPE

$13.99

$

In Stock, only 2 left!

0

11

Jonsered 503644701

GROMMET

$6.99

$

In Stock, only 3 left!

0

12

Jonsered 504300026

SEAL

$4.99

$

In Stock, Qty 20+

0

13

Jonsered 503975001

CLUTCH
(Superseded to 537257501)

$62.99

$

Usually ships in 3-10 days

0

14

Jonsered 503975101

CLUTCH SPRING

Note: . 13

$5.99

$

Usually ships in 3-10 days

0

15

Jonsered 503432001

CLUTCH DRUM BEARING

Note: . 18

$17.99

$

In Stock, Qty 12

0

16

Jonsered 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: . 18

$9.49

$

In Stock, Qty 14

0

16

Jonsered 505303661

22273 SPROCKET
(Superseded to 608000112)

Note: . 18

$7.99

$

Usually ships in 3-10 days

0

17

Jonsered 537207806

PINION
(Superseded to 582270106)

$13.99

$

In Stock, only 2 left!

0

18

Jonsered 537137971

CLUTCH ASSY

$62.99

$

Usually ships in 3-10 days

0

18

Jonsered 537137972

CLUTCH ASSY

$56.99

$

Usually ships in 3-10 days

0

19

Jonsered 503752401

WASHER

$4.99

$

In Stock, Qty 19

0

20

Jonsered 503272101

RETAINING RING

$1.99

$

In Stock, Qty 20+

0
