CS 2188 EPA - Jonsered Chainsaw (2009-05) CRANKCASE Parts Diagram

Chainsaw

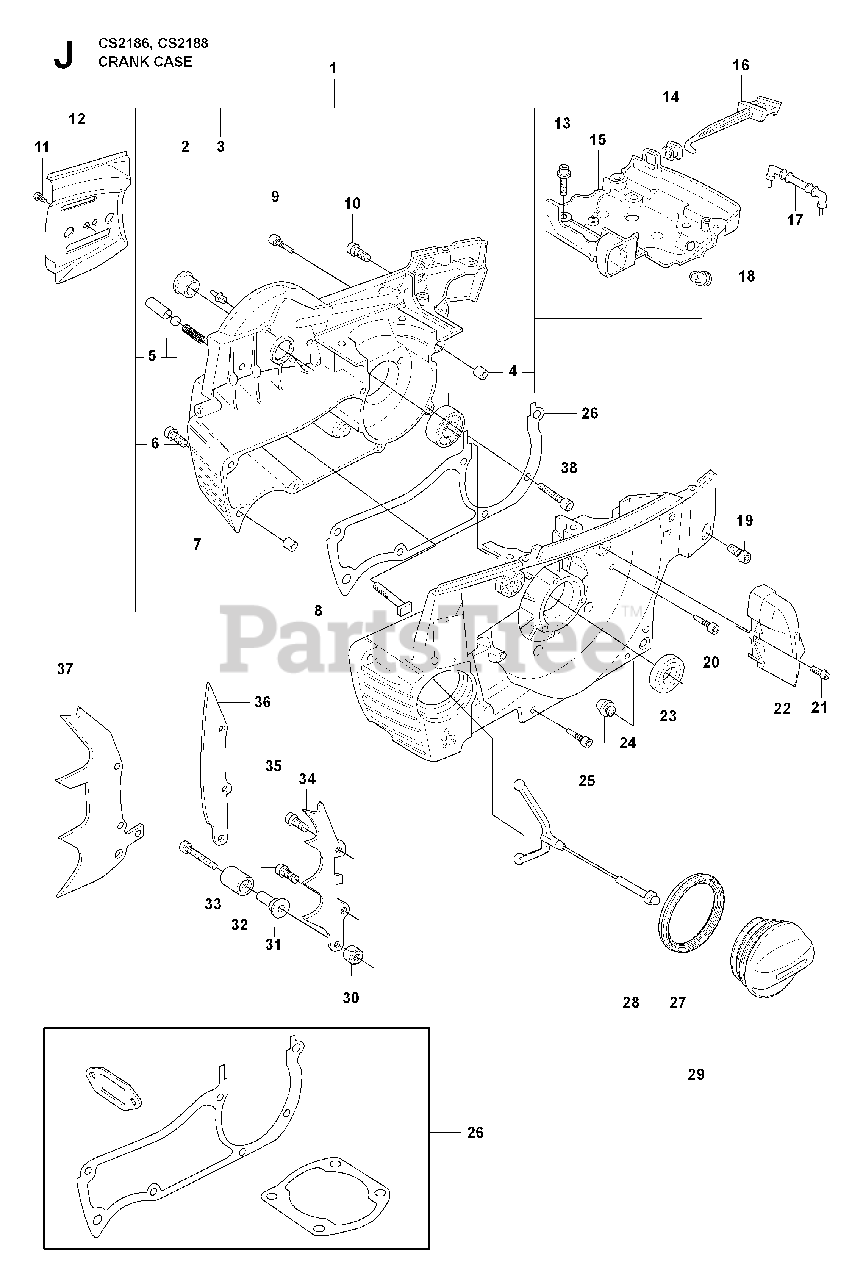

CRANKCASE Parts Diagram

  • Title

1

Jonsered 503991106

CRANKCASE

$397.99

$

Usually ships in 3-10 days

0

2

Jonsered 503967001

BUSHING

Note: . 1

$10.99

$

In Stock, Qty 9

0

3

Jonsered 503751801

PIN

Note: . 1

$7.99

$

In Stock, Qty 8

0

4

Jonsered 501270801

SLEEVE

Note: . 1

$8.49

$

Usually ships in 3-10 days

0

5

Jonsered 537040301

VALVE

Note: . 1

$6.99

$

In Stock, Qty 11

0

6

Jonsered 503218825

%SCREW
(Superseded to 503218876)

$6.49

$

In Stock, Qty 20+

0

7

Jonsered 501270801

SLEEVE

Note: . 1

$8.49

$

Usually ships in 3-10 days

0

8

Jonsered 537051301

BOLT

Note: . 1

$10.99

$

In Stock, Qty 6

0

9

Jonsered 503749301

SCREW

$5.99

$

In Stock, Qty 10

0

10

Jonsered 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

11

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

12

Jonsered 537046601

PLATE

$15.99

$

In Stock, only 4 left!

0

13

Jonsered 503200712

SCREW

$7.49

$

In Stock, Qty 20+

0

14

Jonsered 503734401

GROMMET

$6.99

$

In Stock, Qty 8

0

15

Jonsered 537001404

PLATE

$

$

Not available

16

Jonsered 537001201

CHOKE CONTROL

$10.99

$

In Stock, only 2 left!

0

17

Jonsered 503678601

SPACER
(Superseded to 579468901)

$6.99

$

In Stock, Qty 10

0

18

Jonsered 537095401

GROMMET

$7.99

$

In Stock, only 3 left!

0

19

Jonsered 503218825

%SCREW
(Superseded to 503218876)

$6.49

$

In Stock, Qty 20+

0

20

Jonsered 503749301

SCREW

$5.99

$

In Stock, Qty 10

0

21

Jonsered 503200712

SCREW

$7.49

$

In Stock, Qty 20+

0

22

Jonsered 537007901

JET

$7.99

$

In Stock, only 4 left!

0

23

Jonsered 503260205

SEALING RING

$18.99

$

In Stock, Qty 11

0

24

Jonsered 503846101

BUFFER

$8.99

$

In Stock, Qty 11

0

25

Jonsered 503749301

SCREW

$5.99

$

In Stock, Qty 10

0

26

Jonsered 537033901

GASKET SET

$22.99

$

In Stock, Qty 6

0

27

Jonsered 537215001

SEALING
(Superseded to 589241101)

Note: . 29

$8.99

$

In Stock, Qty 17

0

28

Jonsered 503578901

HOLDER

Note: . 29

$9.99

$

In Stock, Qty 15

0

29

Jonsered 537215201

TANK CAP
(Superseded to 537215206)

$13.99

$

In Stock, only 3 left!

0

30

Jonsered 503222401

NUT

$2.49

$

In Stock, Qty 20+

0

31

Jonsered 537089201

NUT

$10.99

$

In Stock, Qty 12

0

32

Jonsered 537024401

SPACER

$9.99

$

In Stock, Qty 7

0

33

Jonsered 503200230

SCREW

$6.49

$

In Stock, Qty 9

0

34

Jonsered 537017101

FELLING DOG

$24.99

$

Usually ships in 3-10 days

0

35

Jonsered 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

36

Jonsered 537042901

BUMPER

$14.99

$

Usually ships in 3-10 days

0

37

Jonsered 537017201

FELLING DOG

$35.99

$

Usually ships in 3-10 days

0

38

Jonsered 503201635

SCREW

$4.99

$

Usually ships in 3-10 days

0
