CS 2234 - Jonsered Chainsaw (2009-04) CARBURETOR AIR FILTER Parts Diagram

Chainsaw

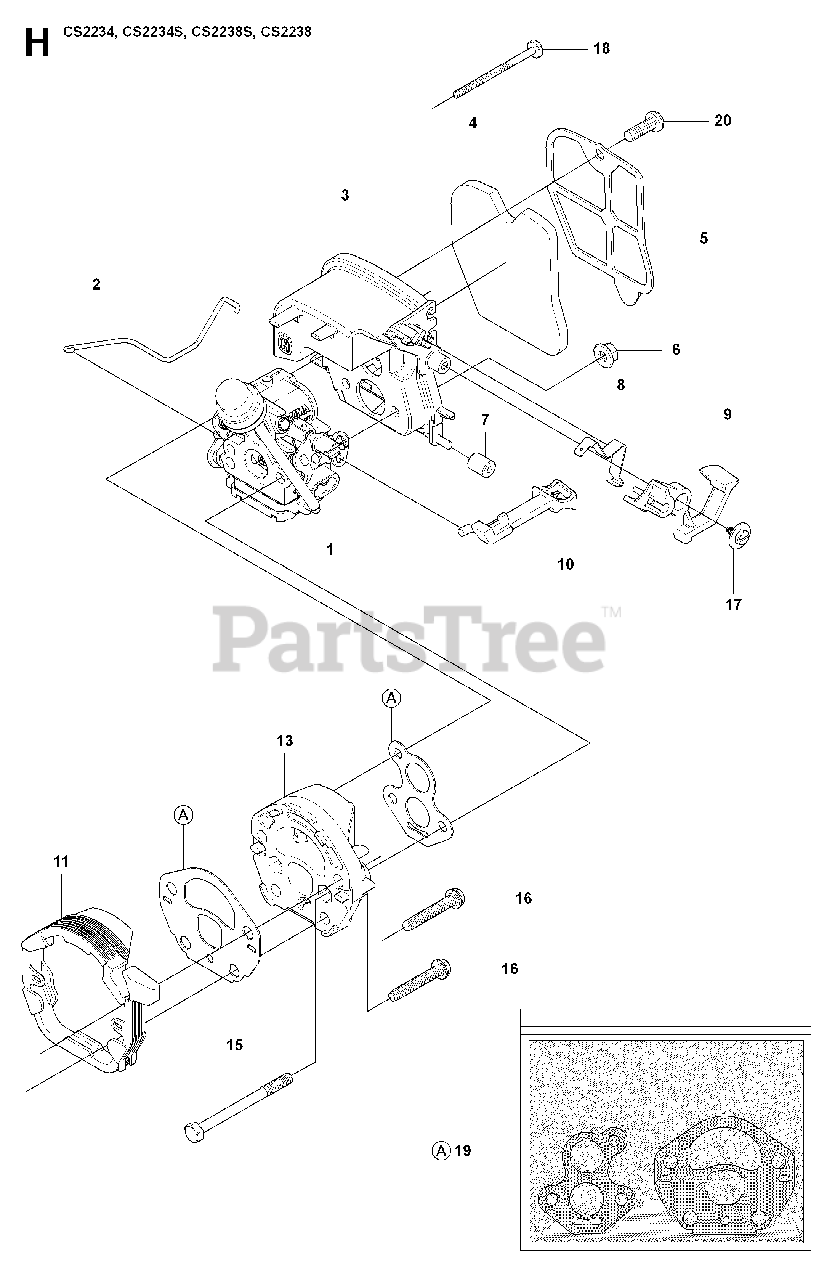

CARBURETOR AIR FILTER Parts Diagram

  • Title

1

Jonsered 545072601

%CARBURETOR
(Superseded to 586936202)

$93.99

$

In Stock, Qty 13

0

2

Jonsered 545062801

THROTTLE WIRE
(Superseded to 578862301)

$6.49

$

In Stock, Qty 10

0

3

Jonsered 545062101

FILTER HOUSING
(Superseded to 575493401)

$9.49

$

In Stock, only 1 left!

0

4

Jonsered 545061801

AIR FILTER

$4.99

$

In Stock, Qty 20+

0

5

Jonsered 545151801

PLATE

$6.49

$

In Stock, Qty 8

0

6

Jonsered 530016101

NUT

$6.49

$

In Stock, Qty 8

0

7

Jonsered 545061901

ISOLATOR FILTER HOUSING

$4.99

$

Usually ships in 3-10 days

0

8

Jonsered 545063401

SPRING

$4.99

$

In Stock, Qty 11

0

9

Jonsered 545061701

SWITCH LEVER

$6.49

$

In Stock, only 1 left!

0

10

Jonsered 545061601

CHOKE KNOB

$6.49

$

In Stock, only 1 left!

0

11

Jonsered 545061501

CARB ADAPTOR SEAL

$6.49

$

In Stock, Qty 10

0

13

Jonsered 545061401

CARB ADAPTOR
(Superseded to 577636501)

$6.49

$

In Stock, Qty 8

0

15

Jonsered 545033701

STUD CARBURETOR

$3.99

$

In Stock, only 3 left!

0

16

Jonsered 545158301

SCREW

$3.99

$

In Stock, only 4 left!

0

17

Jonsered 530016080

SCREW

$6.49

$

In Stock, Qty 10

0

18

Jonsered 545074901

TOP STUD - CARBURETOR

$4.99

$

In Stock, only 4 left!

0

19

Jonsered 545081892

GASKET KIT

$10.99

$

In Stock, Qty 13

0

20

Jonsered 530016349

SCREW FILTER PLATE

$6.49

$

In Stock, only 4 left!

0
