CS 2234 S - Jonsered Chainsaw (2009-01) CHAIN BRAKE Parts Diagram

Chainsaw

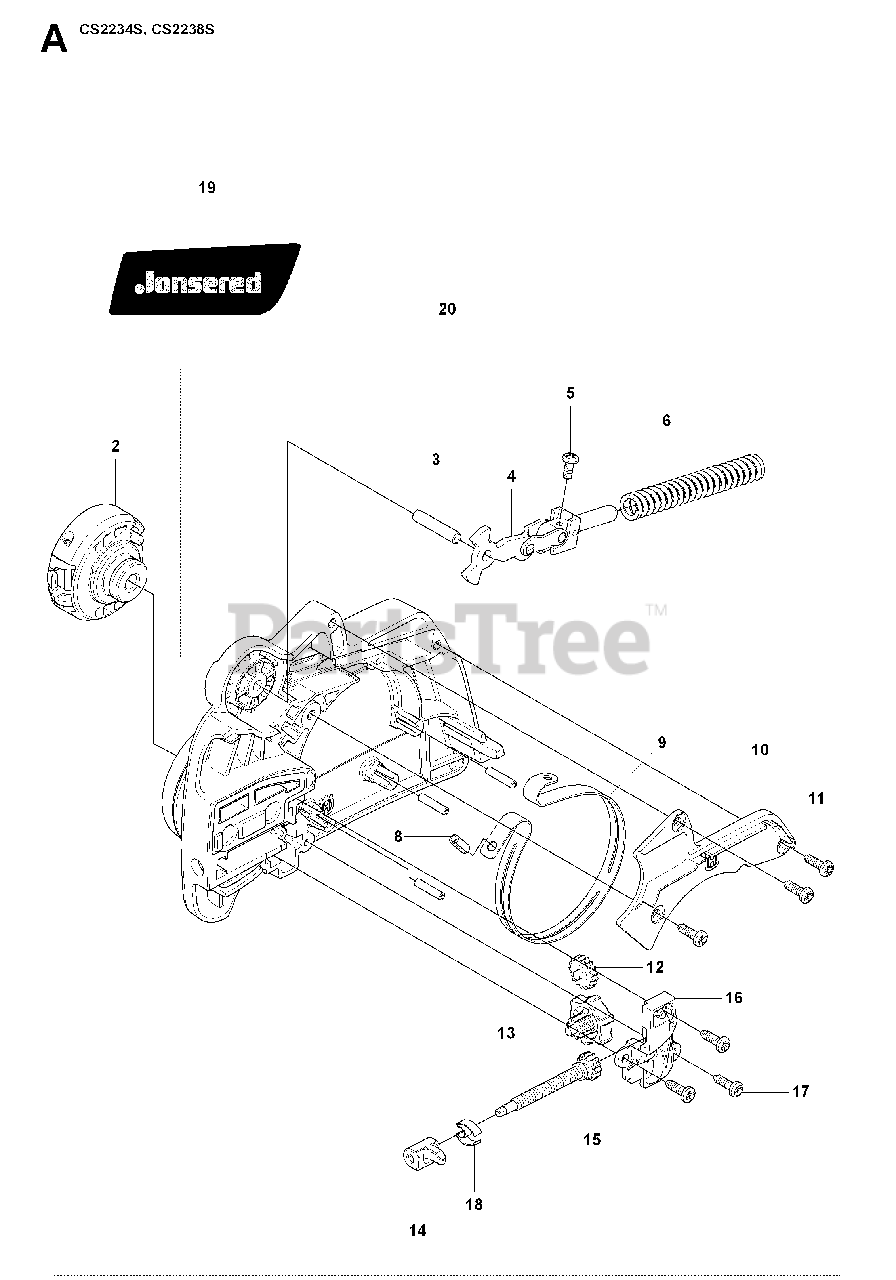

CHAIN BRAKE Parts Diagram

  • Title

2

Jonsered 545146402

KNOB
(Superseded to 579107301)

$6.49

$

In Stock, Qty 8

0

3

Jonsered 530057950

PIN

$4.99

$

In Stock, only 1 left!

0

4

Jonsered 530057940

FRONT LINK ASSY

$18.99

$

In Stock, only 1 left!

0

5

Jonsered 530015911

SCREW
(Superseded to 574780301)

$7.49

$

In Stock, only 1 left!

0

6

Jonsered 530016415

SPRING

$7.49

$

In Stock, only 2 left!

0

8

Jonsered 530015913

PIN

$4.99

$

In Stock, Qty 6

0

9

Jonsered 530057923

BRAKE BAND

$6.49

$

In Stock, Qty 16

0

10

Jonsered 545071002

No Description Available

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 530016064

SCREW

$4.99

$

In Stock, Qty 6

0

12

Jonsered 545060201

GEAR IDLER

$6.49

$

In Stock, Qty 5

0

13

Jonsered 545090501

%WHEEL GEAR ADJUSTMENT
(Superseded to 525884202)

$4.99

$

Usually ships in 3-10 days

0

14

Jonsered 545060501

PIN BAR ADJUSTING
(Superseded to 545060502)

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 545065901

SCREW

$6.49

$

In Stock, only 3 left!

0

16

Jonsered 545059202

No Description Available

$5.99

$

Usually ships in 3-10 days

0

17

Jonsered 530016064

SCREW

$4.99

$

In Stock, Qty 6

0

18

Jonsered 545149301

CLIP

$4.99

$

In Stock, Qty 8

0

19

Jonsered 545166101

No Description Available

$

$

Not available

20

Jonsered 545071105

CHAIN BRAKE ASSY
(Superseded to 525628902)

$48.99

$

Usually ships in 3-10 days

0
