CS 2238 - Jonsered Chainsaw (2009-04) CHAIN BRAKE Parts Diagram

Chainsaw

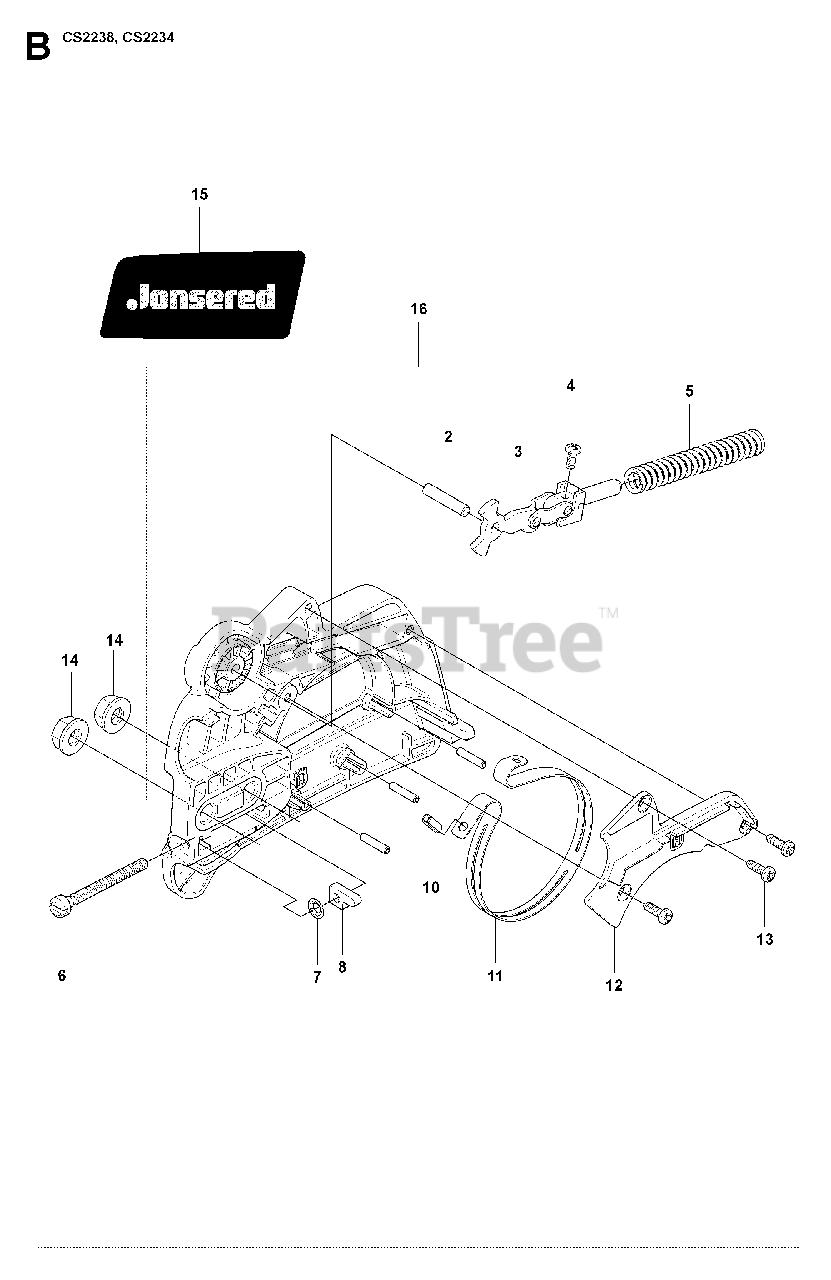

CHAIN BRAKE Parts Diagram

  • Title

2

Jonsered 530057950

PIN

Note: . 16

$4.99

$

In Stock, only 1 left!

0

3

Jonsered 530057940

FRONT LINK ASSY

Note: . 16

$18.99

$

In Stock, only 1 left!

0

4

Jonsered 530015911

SCREW
(Superseded to 574780301)

Note: . 16

$7.49

$

In Stock, only 1 left!

0

5

Jonsered 530016415

SPRING

Note: . 16

$7.49

$

In Stock, only 2 left!

0

6

Jonsered 530061110

SCREW
(Superseded to 530016110)

Note: . 16

$4.99

$

In Stock, Qty 20+

0

7

Jonsered 530038593

RETAINER

Note: . 16

$4.99

$

In Stock, Qty 20+

0

8

Jonsered 530015826

ADJUST PIN,BAR 36/41

Note: . 16

$4.99

$

In Stock, Qty 20+

0

10

Jonsered 530015913

PIN

Note: . 16

$4.99

$

In Stock, Qty 6

0

11

Jonsered 530057923

BRAKE BAND

Note: . 16

$6.49

$

In Stock, Qty 16

0

12

Jonsered 545071002

No Description Available

Note: . 16

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 530016064

SCREW

Note: . 16

$4.99

$

In Stock, Qty 6

0

14

Jonsered 530015917

BAR NUT

$3.99

$

In Stock, Qty 20+

0

15

Jonsered 545118701

DECAL

$3.99

$

In Stock, Qty 10

0

16

Jonsered 545071104

No Description Available
(Superseded to 525611501)

$31.99

$

In Stock, Qty 8

0
