CS 2238 - Jonsered Chainsaw (2010-04) CLUTCH OIL PUMP Parts Diagram

Chainsaw

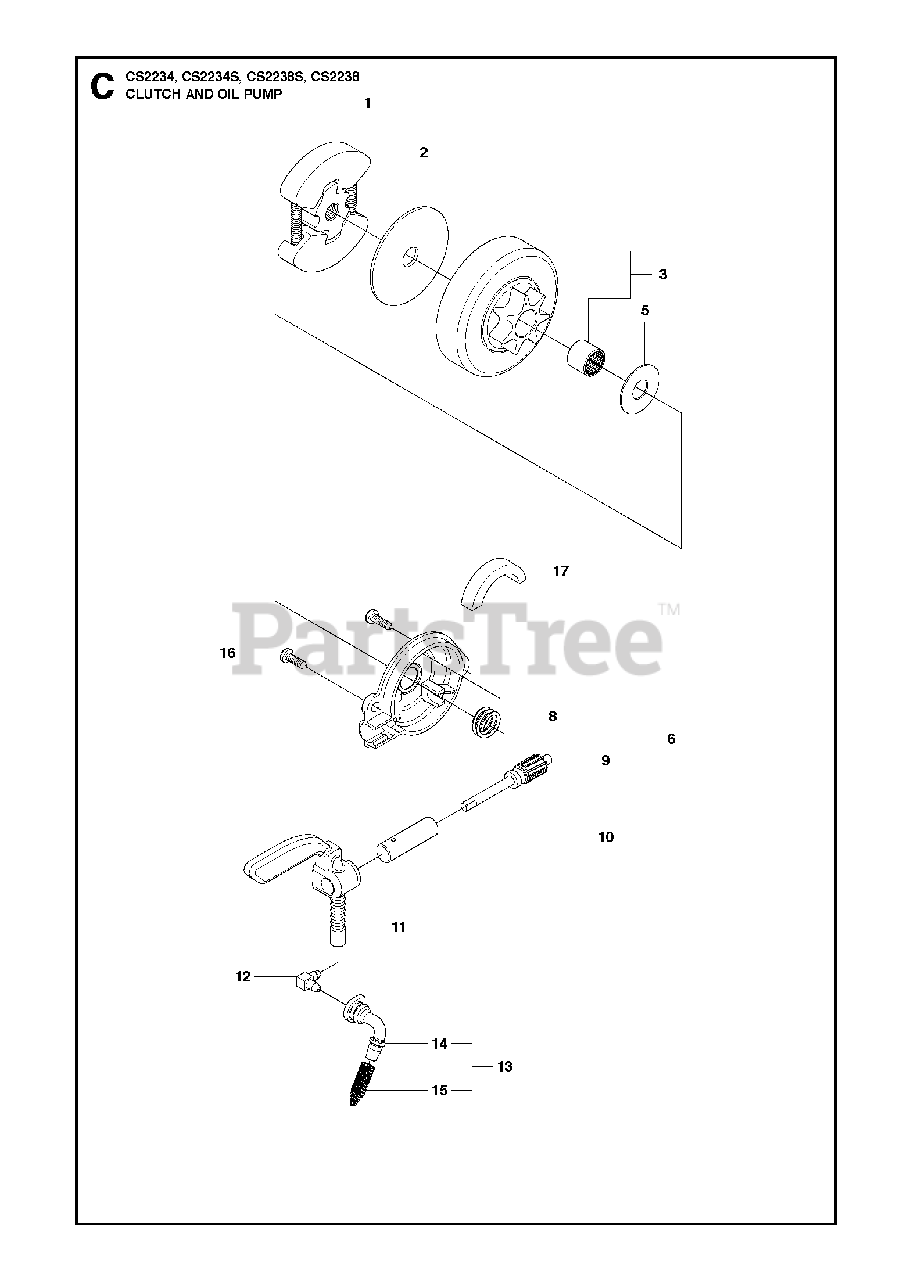

CLUTCH OIL PUMP Parts Diagram

  • Title

1

Jonsered 530014949

CLUTCH ASSEMBLY

$22.99

$

In Stock, Qty 20+

0

2

Jonsered 530015611

FRICTION DISC,CLUTCH 36/41

$6.49

$

In Stock, Qty 20+

0

3

Jonsered 530047061

CLUTCH DRUM ASSY

Note: 3 /8 6-Tooth

$20.99

$

In Stock, Qty 12

0

3

Jonsered 530048132

ASSY CLUTCH DRUM .325"

Note: 325 7-tooth

$22.99

$

In Stock, only 4 left!

0

5

Jonsered 530015907

DUST COVER 36/41

$

$

Not available

6

Jonsered 574719301

OIL PUMP COMPLETE
(Superseded to 581063901)

$26.99

$

In Stock, Qty 10

0

8

Jonsered 530037820

WORM GEAR

$6.49

$

In Stock, Qty 12

0

9

Jonsered 530057932

PLUNGER & GEAR
(Superseded to 581063901)

Note: . 6

$26.99

$

In Stock, Qty 10

0

10

Jonsered 530057930

PUMP
(Superseded to 581063901)

Note: . 6

$26.99

$

In Stock, Qty 10

0

11

Jonsered 545227501

BLOCK OIL

$10.99

$

Usually ships in 3-10 days

0

12

Jonsered 530049477

ELBOW

$4.99

$

In Stock, only 3 left!

0

13

Jonsered 545069501

PICK UPS ASSY OIL TANK

$8.99

$

In Stock, only 3 left!

0

14

Jonsered 545069401

No Description Available

Note: . 13

$8.99

$

In Stock, only 1 left!

0

15

Jonsered 530056533

SCREEN/FILTER

Note: . 13

$6.49

$

In Stock, Qty 10

0

16

Jonsered 545227101

SCREW 6-19X.437

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 525318401

SEAL

$3.99

$

In Stock, only 1 left!

0
