CS 2238 S - Jonsered Chainsaw (2009-04) STARTER Parts Diagram

Chainsaw

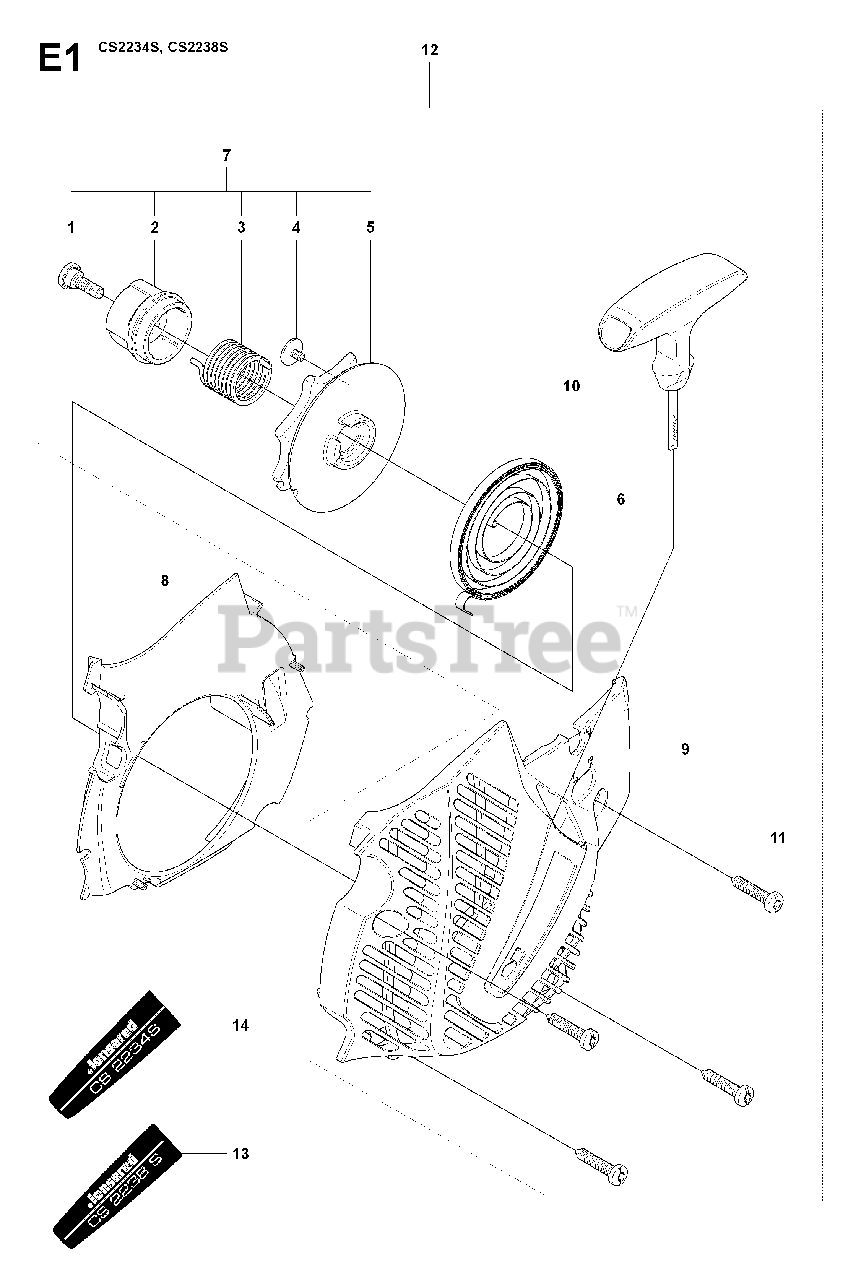

STARTER Parts Diagram

  • Title

1

Jonsered 530021179

SCREW SHOULDER

Note: . 7 12

$2.49

$

In Stock, only 4 left!

0

2

Jonsered 530059677

HUB STARTER EPS

Note: . 7 12

$6.99

$

In Stock, Qty 9

0

3

Jonsered 530021180

SPRING EPS

Note: . 7 12

$4.99

$

In Stock, only 3 left!

0

4

Jonsered 530016080

SCREW

Note: . 7 12

$3.49

$

In Stock, only 3 left!

0

5

Jonsered 545058201

PULLEY STARTER EPS
(Superseded to 580973601)

Note: . 7 12

$20.99

$

In Stock, only 2 left!

0

6

Jonsered 530042095

SPRING STARTER
(Superseded to 545008013)

Note: . 12

$6.99

$

In Stock, Qty 7

0

7

Jonsered 545180812

KIT EPS STARTER
(Superseded to 530071966)

Note: . 12

$20.99

$

In Stock, only 2 left!

0

8

Jonsered 545161301

No Description Available

$

$

Not available

9

Jonsered 545161201

No Description Available

Note: . 12

$

$

Not available

10

Jonsered 545010012

No Description Available

Note: . 12

$

$

Not available

11

Jonsered 530016432

SCREW M5.38-14X22.225MM

Note: . 12

$3.49

$

In Stock, Qty 5

0

12

Jonsered 545180813

No Description Available

$

$

Not available

13

Jonsered 545165956

No Description Available

$

$

Not available

14

Jonsered 545118501

DECAL 240E

$3.49

$

Usually ships in 3-10 days

0
