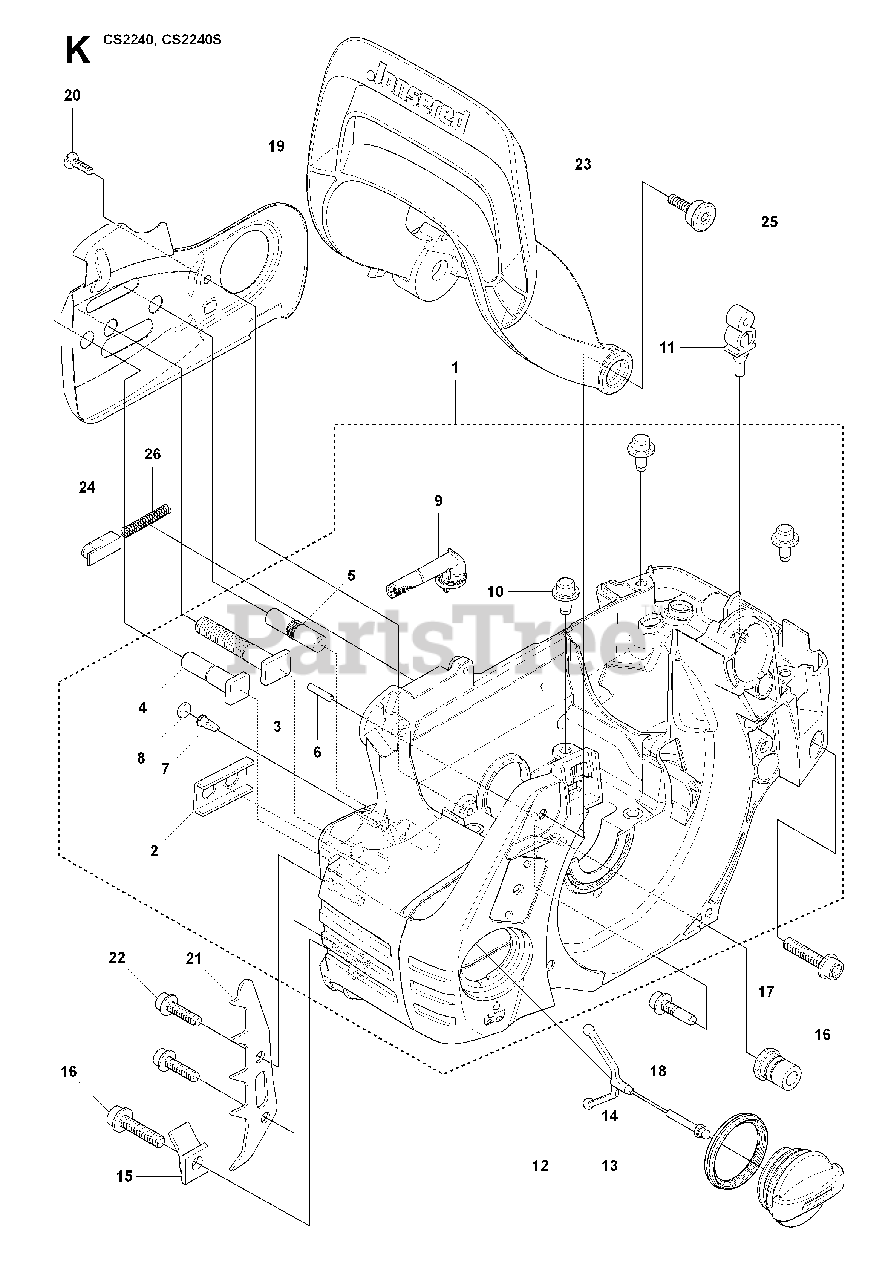

CS 2240 - Jonsered Chainsaw (2009-02) CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

1

Jonsered 544932502

CRANKCASE ASSY
(Superseded to 544932504)

$74.99

$

Usually ships in 3-10 days

0

2

Jonsered 503875802

STIFFENING PLATE

$6.99

$

In Stock, Qty 12

0

3

Jonsered 503875402

BAR BOLT

$6.99

$

In Stock, Qty 17

0

4

Jonsered 537334601

BAR BOLT (X2)

$6.99

$

In Stock, Qty 7

0

5

Jonsered 544036401

BAR BOLT

$4.99

$

In Stock, only 2 left!

0

6

Jonsered 503240905

PIN

$3.49

$

In Stock, Qty 10

0

7

Jonsered 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 20+

0

8

Jonsered 537403501

PLUG
(Superseded to 537403502)

$3.49

$

In Stock, Qty 10

0

9

Jonsered 544083301

OIL SCREEN

$5.99

$

In Stock, only 2 left!

0

10

Jonsered 544331601

GUIDE PEN

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 503869301

SUPPORT
(Superseded to 597909701)

$6.99

$

In Stock, only 2 left!

0

12

Jonsered 544111202

TANK CAP ASSY
(Superseded to 544111204)

$7.99

$

Usually ships in 3-10 days

0

13

Jonsered 537215001

SEALING
(Superseded to 589241101)

$6.99

$

In Stock, Qty 5

0

14

Jonsered 503578901

HOLDER

$5.99

$

In Stock, Qty 10

0

15

Jonsered 503886301

CHAIN CATCHER

$5.99

$

In Stock, Qty 7

0

16

Jonsered 544316201

SCREW IHSCFT
(Superseded to 503218876)

$5.99

$

In Stock, Qty 7

0

17

Jonsered 501007601

LATERAL SUPPORT

$3.49

$

In Stock, only 2 left!

0

18

Jonsered 503215103

SCREW IHSCFT

$3.49

$

In Stock, only 2 left!

0

19

Jonsered 544284601

CHAIN GUIDE PLATE

$6.99

$

In Stock, Qty 12

0

20

Jonsered 503217010

SCREW

$3.49

$

In Stock, Qty 20+

0

21

Jonsered 544286501

SPIKE INNER

$6.99

$

Usually ships in 3-10 days

0

22

Jonsered 503217520

SCREW

$3.49

$

In Stock, Qty 15

0

24

Jonsered 503892401

CATCH

$6.99

$

In Stock, Qty 9

0

25

Jonsered 503893002

SCREW
(Superseded to 503893001)

$4.99

$

In Stock, only 4 left!

0

26

Jonsered 503436501

LOCK SPRING

$3.49

$

In Stock, only 1 left!

0
