CS 2240 - Jonsered Chainsaw (2011-05) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

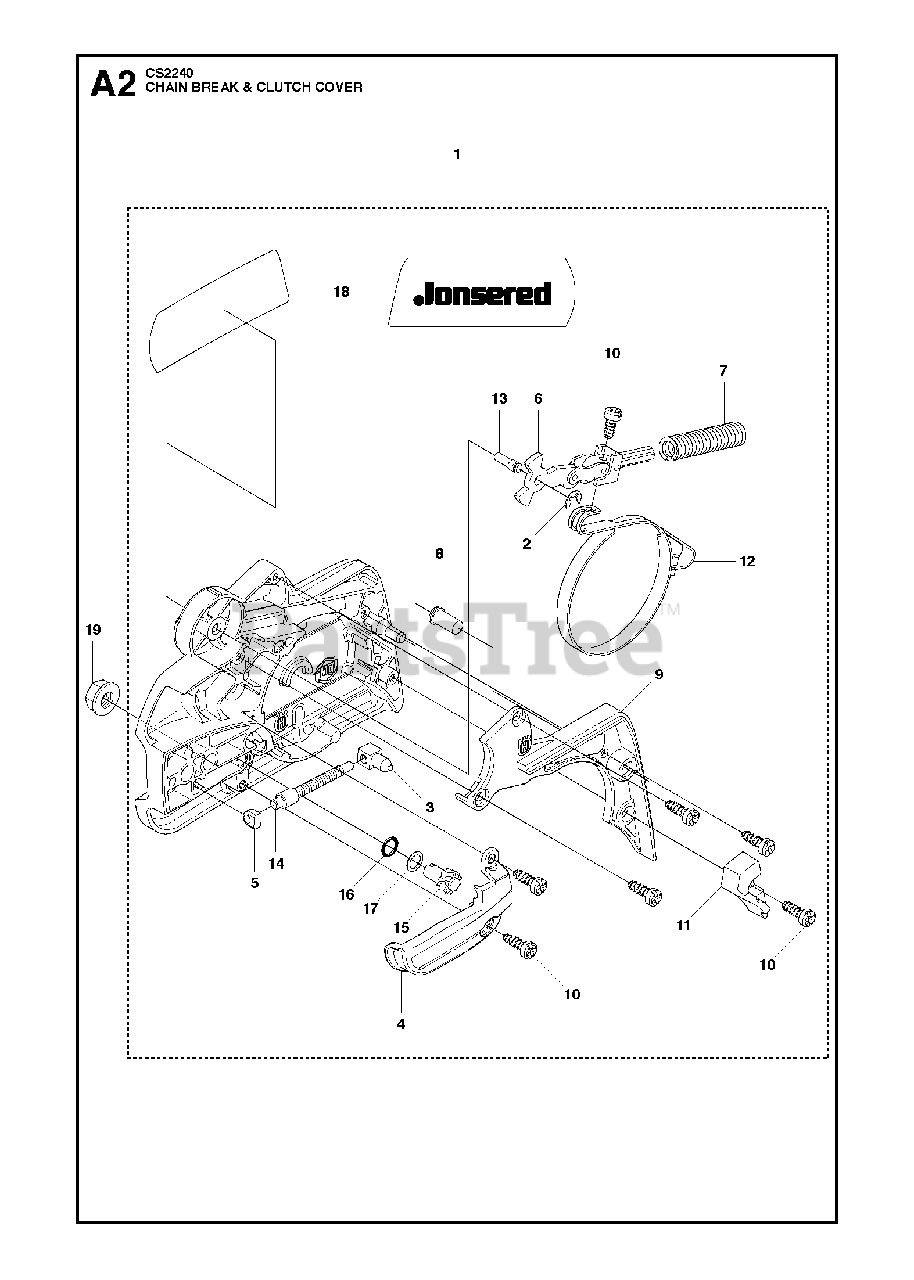

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title

1

Jonsered 501388202

CLUTCH COVER ASSY

$66.99

$

Usually ships in 3-10 days

0

2

Jonsered 735310820

E-RING 4

Note: . 1

$4.99

$

In Stock, Qty 20+

0

3

Jonsered 537286601

PAWL

Note: . 1

$34.99

$

Usually ships in 3-10 days

0

4

Jonsered 540063301

CHAIN GUIDE

Note: . 1

$8.99

$

In Stock, Qty 10

0

5

Jonsered 537017401

SLEEVE

Note: . 1

$6.49

$

In Stock, Qty 5

0

6

Jonsered 503890802

JOINT

Note: . 1

$40.99

$

In Stock, only 2 left!

0

7

Jonsered 505892601

BRAKE SPRING

Note: . 1

$4.99

$

In Stock, only 2 left!

0

8

Jonsered 503855201

SLEEVE

Note: . 1

$7.49

$

In Stock, Qty 11

0

9

Jonsered 544248501

COVER

Note: . 1

$13.99

$

In Stock, only 3 left!

0

10

Jonsered 503217010

SCREW

Note: . 1

$4.99

$

In Stock, Qty 20+

0

11

Jonsered 544253101

WEAR PROTECTION

Note: . 1

$6.49

$

In Stock, Qty 8

0

12

Jonsered 544306001

BRAKE BAND ASSY

Note: . 1

$9.99

$

In Stock, Qty 7

0

13

Jonsered 503892901

PIN

Note: . 1

$6.49

$

In Stock, Qty 9

0

14

Jonsered 537397001

SCREW

Note: . 1

$18.99

$

In Stock, only 4 left!

0

15

Jonsered 537079402

SCREW

Note: . 1

$13.99

$

In Stock, Qty 6

0

16

Jonsered 740480702

O-RING

Note: . 1

$7.49

$

In Stock, only 1 left!

0

17

Jonsered 503230063

WASHER

Note: . 1

$6.49

$

In Stock, Qty 7

0

18

Jonsered 544376802

No Description Available

Note: . 1

$6.99

$

Usually ships in 3-10 days

0

19

Jonsered 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0
