CS 2240 S - Jonsered Chainsaw (2009-02) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

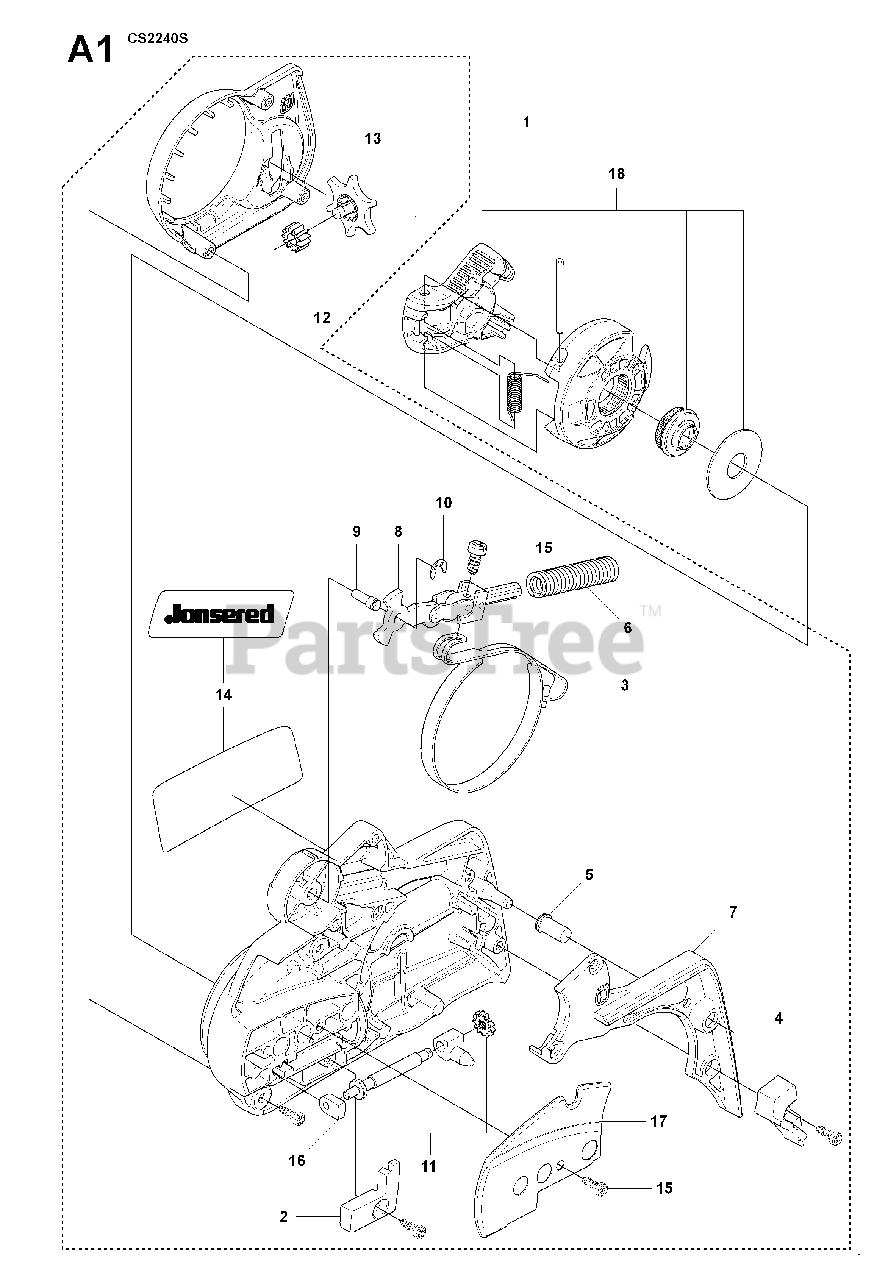

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title

1

Jonsered 544194902

CLUTCH COVER ASSY
(Superseded to 544194906)

$

$

Not available

2

Jonsered 504542801

COVER

$5.99

$

In Stock, only 2 left!

0

3

Jonsered 544306001

BRAKE BAND ASSY

$11.99

$

In Stock, Qty 11

0

4

Jonsered 544253101

WEAR PROTECTION

$5.99

$

In Stock, Qty 8

0

5

Jonsered 503855201

SLEEVE

$5.99

$

In Stock, Qty 14

0

6

Jonsered 505892601

BRAKE SPRING

$4.99

$

In Stock, Qty 15

0

7

Jonsered 544248501

COVER

$7.99

$

In Stock, only 4 left!

0

8

Jonsered 503890802

JOINT

$26.99

$

In Stock, only 4 left!

0

9

Jonsered 503892901

PIN

$3.49

$

In Stock, only 3 left!

0

10

Jonsered 735310820

E-RING 4

$3.49

$

In Stock, only 4 left!

0

11

Jonsered 537392901

CHAIN TENSIONER SCREW, COMP.

$7.99

$

In Stock, only 2 left!

0

12

Jonsered 537347202

CHAIN TENSIONER WHEEL

$6.99

$

Usually ships in 3-10 days

0

13

Jonsered 537392602

No Description Available

$6.99

$

Usually ships in 3-10 days

0

14

Jonsered 544357502

LABEL

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 503217010

SCREW

$3.49

$

In Stock, Qty 17

0

16

Jonsered 544845501

RP BEARING SLEEVE
(Superseded to 525354301)

$7.49

$

In Stock, only 2 left!

0

17

Jonsered 544250501

PLATE

$6.99

$

In Stock, only 1 left!

0

18

Jonsered 537347802

KNOB

$26.99

$

In Stock, only 2 left!

0
