CS 2240 S - Jonsered Chainsaw (2010-06) FUEL TANK Parts Diagram

Chainsaw

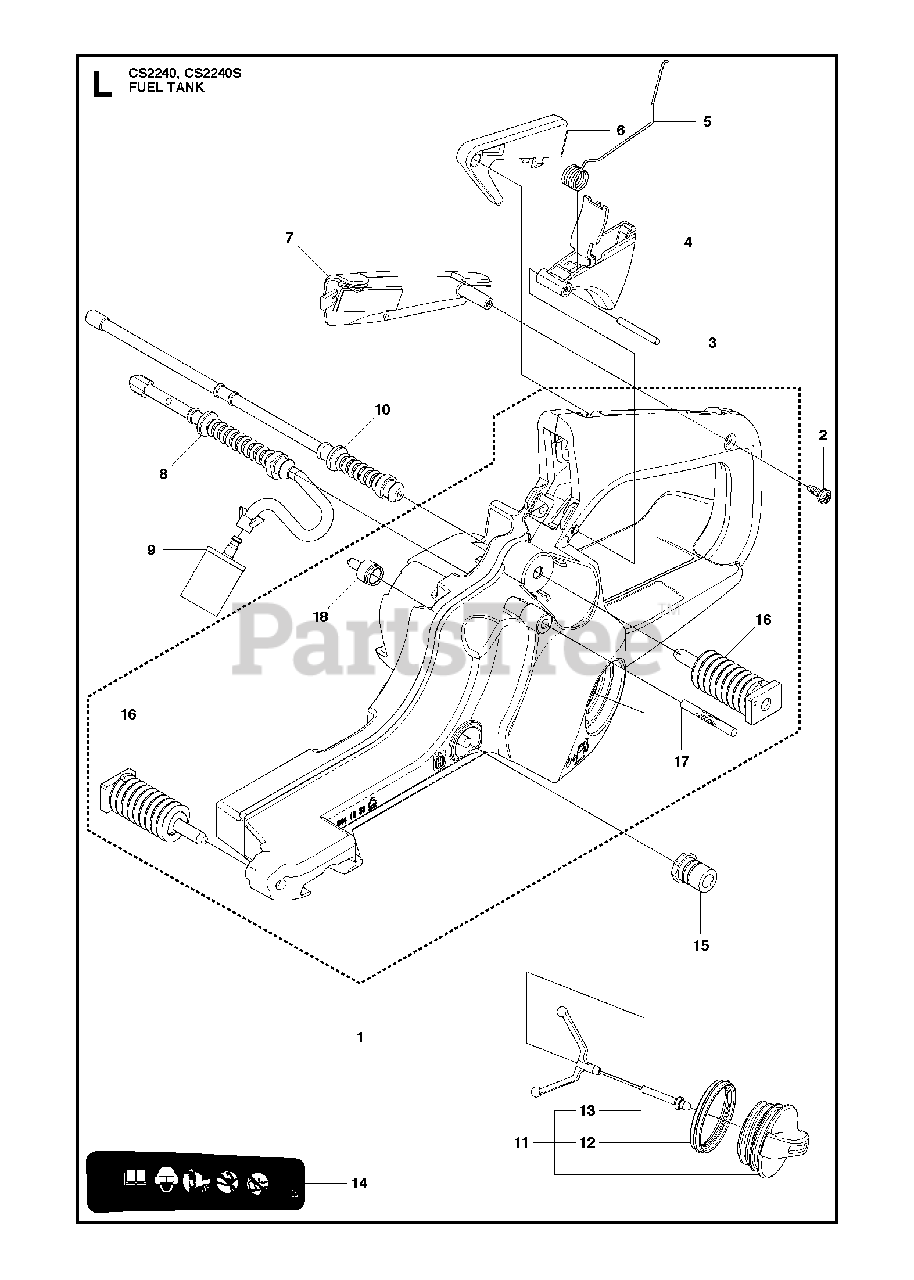

FUEL TANK Parts Diagram

  • Title

1

Jonsered TBD

No Description Available

$

$

Not available

2

Jonsered 503212810

SCREW

$3.49

$

In Stock, Qty 20+

0

3

Jonsered 720182520

PIN

$3.99

$

In Stock, Qty 20+

0

4

Jonsered 544968502

THROTTLE CONTROL

$14.99

$

Usually ships in 3-10 days

0

5

Jonsered 544099901

SPRING

$7.49

$

In Stock, only 3 left!

0

6

Jonsered 544284102

THROTTLE LOCKOUT
(Superseded to 579239402)

$8.49

$

Usually ships in 3-10 days

0

7

Jonsered 544284902

HANDLE INSERT

$9.49

$

Usually ships in 3-10 days

0

8

Jonsered 544128601

RP FUEL HOSE
(Superseded to 544128604)

$14.99

$

In Stock, Qty 7

0

9

Jonsered 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

10

Jonsered 544129701

RP RETURN HOSE
(Superseded to 577535101)

$20.99

$

In Stock, only 2 left!

0

11

Jonsered 544111202

TANK CAP ASSY
(Superseded to 544111204)

$8.49

$

In Stock, Qty 7

0

12

Jonsered 537215001

SEALING
(Superseded to 589241101)

Note: . 11

$7.49

$

In Stock, only 1 left!

0

13

Jonsered 503578901

HOLDER

Note: . 11

$7.49

$

In Stock, Qty 5

0

14

Jonsered 544375001

LABEL

$3.49

$

Usually ships in 3-10 days

0

15

Jonsered 501007601

LATERAL SUPPORT

$3.49

$

In Stock, only 2 left!

0

16

Jonsered 504795601

ANTIVIBRATION ELEMENT

Note: . 1

$9.99

$

Usually ships in 3-10 days

0

17

Jonsered 721126339

GROOVED PIN

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

18

Jonsered 537359501

FUEL TANK VENT
(Superseded to 501152901)

Note: . 1

$23.99

$

In Stock, Qty 13

0
