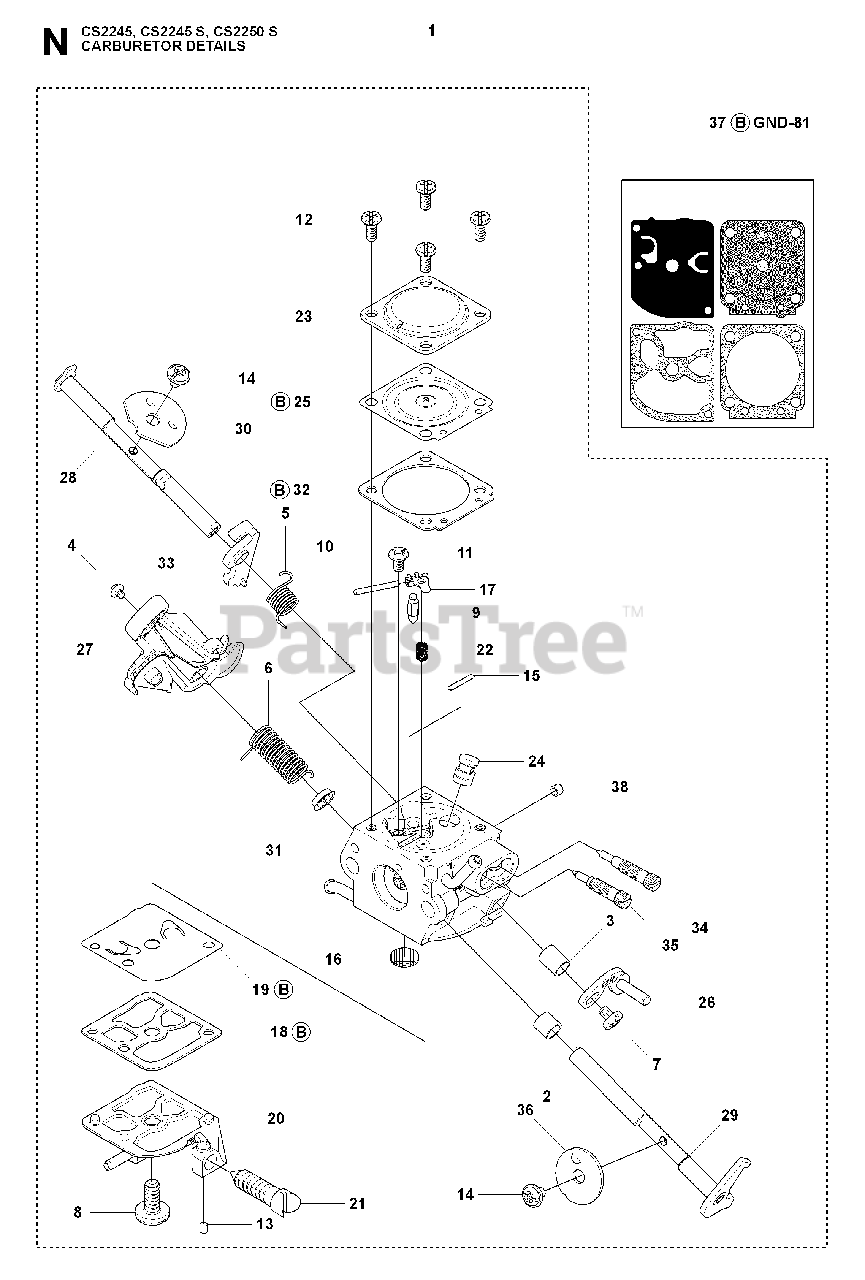

CARBURETOR DETAILS Parts Diagram

  • Title

1

Jonsered 506450401

CARBURETOR

$

$

Not available

2

Jonsered 502078201

COLLAR

$

$

Not available

3

Jonsered 502078301

COLLAR

$5.99

$

Usually ships in 3-10 days

0

4

Jonsered 502078401

SCREW

$3.49

$

Usually ships in 3-10 days

0

5

Jonsered 502078601

SPRING

$

$

Not available

6

Jonsered 502078701

SPRING

$3.49

$

In Stock, only 1 left!

0

7

Jonsered 503479001

SCREW

$3.49

$

In Stock, Qty 7

0

8

Jonsered 503479601

SCREW

$6.99

$

In Stock, Qty 5

0

9

Jonsered 503479701

INLET NEEDLE

$11.99

$

In Stock, Qty 5

0

10

Jonsered 503480001

PIN FULCRUM
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

11

Jonsered 503480101

SCREW

$3.49

$

Usually ships in 3-10 days

0

12

Jonsered 503480501

SCREW

$3.49

$

Usually ships in 3-10 days

0

13

Jonsered 503481101

PLUG

$4.99

$

In Stock, only 1 left!

0

14

Jonsered 503481801

SCREW

$3.49

$

Usually ships in 3-10 days

0

15

Jonsered 503535601

PLUG

$4.99

$

In Stock, Qty 6

0

16

Jonsered 503535701

STRAINER

$5.49

$

In Stock, only 2 left!

0

17

Jonsered 503665901

LEVER

$4.99

$

In Stock, only 1 left!

0

18

Jonsered 537020101

GASKET

$4.99

$

In Stock, Qty 11

0

19

Jonsered 537383101

PUMP DIAPHRAGM

$13.99

$

In Stock, only 1 left!

0

20

Jonsered 502078901

COVER

$28.99

$

Usually ships in 3-10 days

0

21

Jonsered 537383301

SCREW

$9.49

$

Usually ships in 3-10 days

0

22

Jonsered 537383401

SPRING

$3.49

$

Usually ships in 3-10 days

0

23

Jonsered 537383701

COVER

$

$

Not available

24

Jonsered 544237701

JET

$20.99

$

Usually ships in 3-10 days

0

25

Jonsered 502079001

DIAPHRAGM

$20.99

$

In Stock, only 1 left!

0

26

Jonsered 502079101

LEVER

$26.99

$

Usually ships in 3-10 days

0

27

Jonsered 505101701

THROTTLE LEVER

$13.99

$

Usually ships in 3-10 days

0

28

Jonsered 502079401

SHAFT ASSY

$

$

Not available

29

Jonsered 502079501

SHAFT ASSY

$

$

Not available

30

Jonsered 502247701

VALVE

$9.49

$

Usually ships in 3-10 days

0

31

Jonsered 502079801

COLLAR

$

$

Not available

32

Jonsered 537383601

GASKET

$5.99

$

Usually ships in 3-10 days

0

33

Jonsered 502081701

LEVER

$

$

Not available

34

Jonsered 502079901

SCREW

$20.99

$

In Stock, only 1 left!

0

35

Jonsered 502080001

SCREW

$20.99

$

Usually ships in 3-10 days

0

36

Jonsered 502080101

VALVE

$

$

Not available

37

Jonsered 502080201

GASKET KIT

$20.99

$

In Stock, only 2 left!

0

38

Jonsered 544119501

PLUG

$3.49

$

Usually ships in 3-10 days
