CS 2245 - Jonsered Chainsaw (2009-02) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

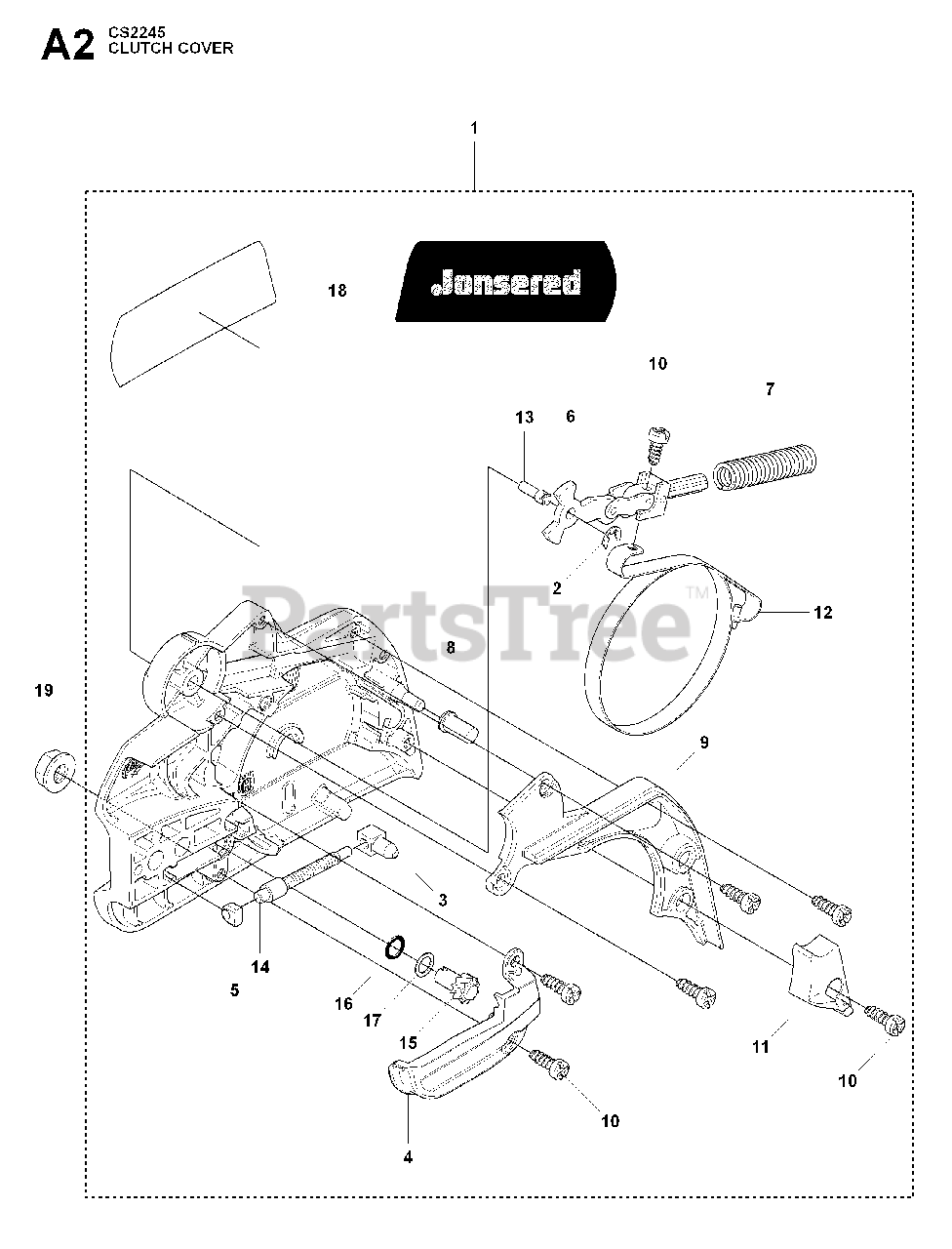

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title

1

Jonsered 544097903

CLUTCH COVER ASSY

$122.97

$

Usually ships in 3-10 days

0

2

Jonsered 544376802

No Description Available

$6.99

$

Usually ships in 3-10 days

0

3

Jonsered 537286601

PAWL

$34.99

$

Usually ships in 3-10 days

0

4

Jonsered 540063301

CHAIN GUIDE

$8.99

$

In Stock, Qty 11

0

5

Jonsered 537017401

SLEEVE

$6.49

$

In Stock, Qty 6

0

6

Jonsered 503890802

JOINT

$40.99

$

In Stock, only 2 left!

0

7

Jonsered 503465901

SPRING

$8.99

$

In Stock, Qty 12

0

8

Jonsered 503855201

SLEEVE

$7.49

$

In Stock, Qty 12

0

9

Jonsered 544082901

COVER, CHAIN BRAKE

$11.99

$

In Stock, Qty 10

0

10

Jonsered 503217010

SCREW

$4.99

$

In Stock, Qty 20+

0

11

Jonsered 544083001

WEAR GUARD, CHAIN

$9.49

$

In Stock, Qty 5

0

12

Jonsered 537043001

BRAKE BAND

$31.99

$

In Stock, Qty 10

0

13

Jonsered 503892901

PIN

$6.49

$

In Stock, Qty 9

0

14

Jonsered 537397001

SCREW

$18.99

$

In Stock, Qty 7

0

15

Jonsered 537079402

SCREW

$13.99

$

In Stock, Qty 6

0

16

Jonsered 740480702

O-RING

$7.49

$

In Stock, only 1 left!

0

17

Jonsered 503230063

WASHER

$6.49

$

In Stock, Qty 7

0

18

Jonsered 544376802

No Description Available

$6.99

$

Usually ships in 3-10 days

0

19

Jonsered 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0
