CS 2245 S - Jonsered Chainsaw (2010-07) CARBURETOR Parts Diagram

Chainsaw

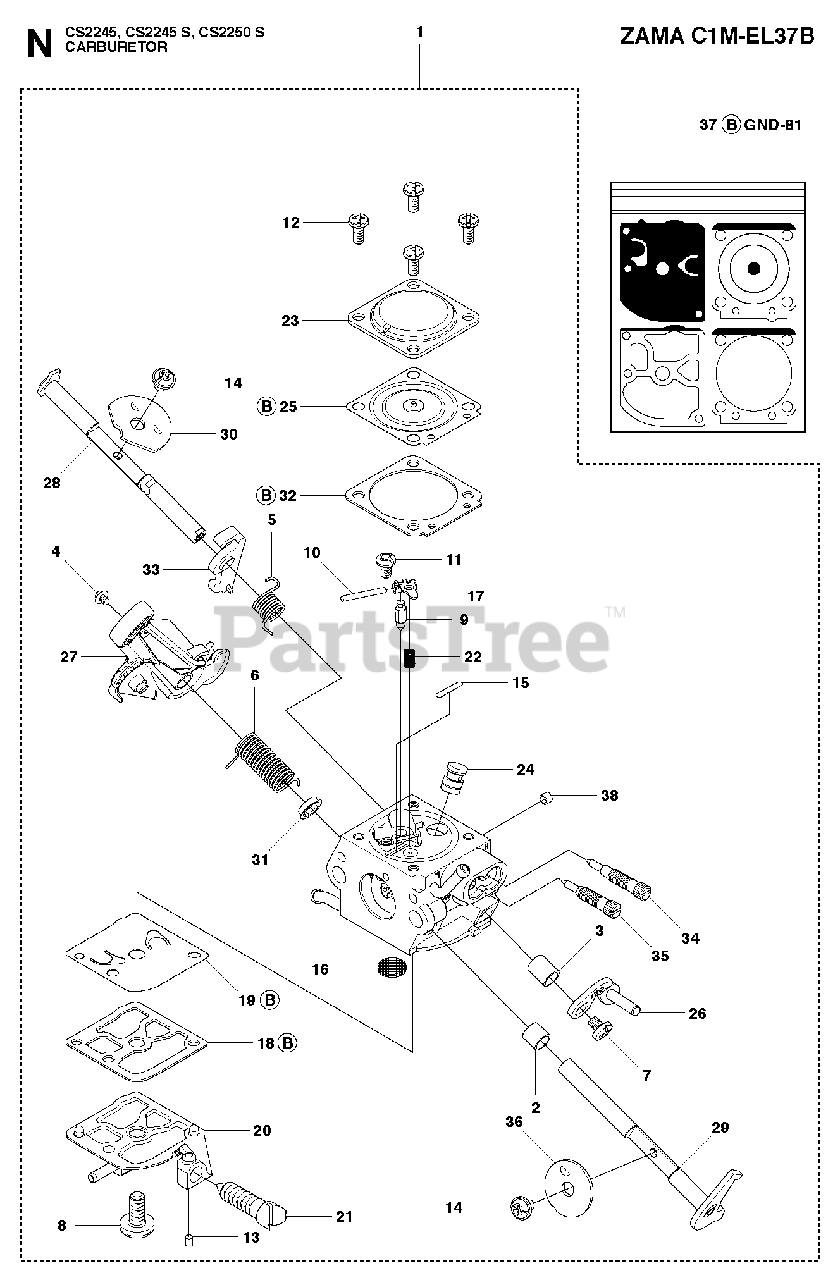

CARBURETOR Parts Diagram

  • Title

1

Jonsered 506450401

CARBURETOR

$50.99

$

Usually ships in 3-10 days

0

2

Jonsered 502078201

COLLAR

Note: . 1

$2.49

$

Usually ships in 3-10 days

0

3

Jonsered 502078301

COLLAR

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

4

Jonsered 502078401

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

5

Jonsered 502078601

SPRING

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

6

Jonsered 502078701

SPRING

Note: . 1

$5.99

$

In Stock, only 1 left!

0

7

Jonsered 503479001

SCREW

Note: . 1

$3.99

$

In Stock, Qty 11

0

8

Jonsered 503479601

SCREW

Note: . 1

$3.99

$

In Stock, Qty 5

0

9

Jonsered 503479701

INLET NEEDLE

Note: . 1

$8.99

$

In Stock, only 2 left!

0

10

Jonsered 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: . 1

$3.49

$

In Stock, only 1 left!

0

11

Jonsered 503480101

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

12

Jonsered 503480501

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 503481101

PLUG

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

14

Jonsered 503481801

SCREW

Note: . 1

$3.99

$

In Stock, only 1 left!

0

15

Jonsered 503535601

PLUG

Note: . 1

$7.49

$

In Stock, Qty 6

0

16

Jonsered 503535701

STRAINER

Note: . 1

$4.99

$

In Stock, only 4 left!

0

17

Jonsered 503665901

LEVER

Note: . 1

$3.99

$

In Stock, only 2 left!

0

18

Jonsered 537020101

GASKET

Note: . 1 37

$4.99

$

In Stock, Qty 15

0

19

Jonsered 537383101

PUMP DIAPHRAGM

Note: . 1 37

$21.99

$

In Stock, only 1 left!

0

20

Jonsered 502078901

COVER

Note: . 1

$39.99

$

Usually ships in 3-10 days

0

21

Jonsered 537383301

SCREW

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

22

Jonsered 537383401

SPRING

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

23

Jonsered 537383701

COVER

Note: . 1

$

$

Not available

24

Jonsered 544237701

JET

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

25

Jonsered 502079001

DIAPHRAGM

Note: . 1 37

$22.99

$

Usually ships in 3-10 days

0

26

Jonsered 502079101

LEVER

Note: . 1

$28.99

$

Usually ships in 3-10 days

0

27

Jonsered 505101701

THROTTLE LEVER

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

28

Jonsered 502079401

SHAFT ASSY

Note: . 1

$25.38

$

Usually ships in 3-10 days

0

29

Jonsered 502079501

SHAFT ASSY

Note: . 1

$18.45

$

Usually ships in 3-10 days

0

30

Jonsered 502247701

VALVE

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

31

Jonsered 502079801

COLLAR

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

32

Jonsered 537383601

GASKET

Note: . 1 37

$8.99

$

Usually ships in 3-10 days

0

33

Jonsered 502081701

LEVER

Note: . 1

$6.91

$

Usually ships in 3-10 days

0

34

Jonsered 502079901

SCREW

Note: . 1

$22.99

$

In Stock, only 1 left!

0

35

Jonsered 502080001

SCREW

Note: . 1

$22.99

$

Usually ships in 3-10 days

0

36

Jonsered 502080101

VALVE

Note: . 1

$9.22

$

Usually ships in 3-10 days

0

37

Jonsered 502080201

GASKET KIT

Note: B Set of Gaskets

$31.99

$

In Stock, only 1 left!

0

38

Jonsered 544119501

PLUG

Note: . 1

$6.99

$

Usually ships in 3-10 days

0
