CS 2245 S - Jonsered Chainsaw (2010-07) STARTER Parts Diagram

Chainsaw

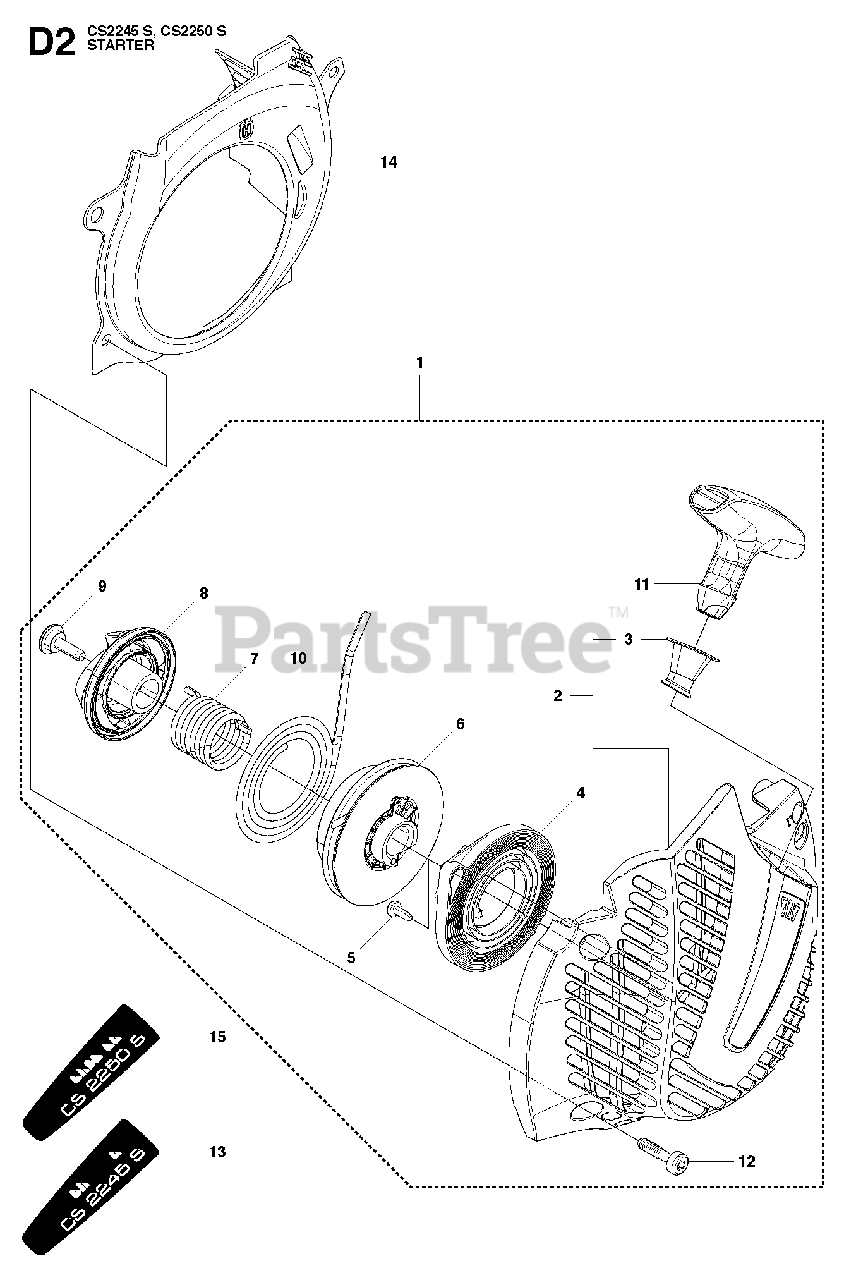

STARTER Parts Diagram

  • Title

1

Jonsered 502300402

STARTER ASSY

$

$

Not available

2

Jonsered 502300501

No Description Available

Note: . 1

$

$

Not available

3

Jonsered 537283201

SLEEVE

Note: . 1 2

$11.99

$

In Stock, only 1 left!

0

4

Jonsered 540057502

SPRING CASSETTE ASSY

Note: . 1

$3.99

$

In Stock, Qty 9

0

5

Jonsered 503212810

SCREW

Note: . 1

$3.49

$

In Stock, Qty 20+

0

6

Jonsered 537423201

STARTER PULLEY

Note: . 1

$10.99

$

In Stock, only 4 left!

0

7

Jonsered 537423401

SPRING

Note: . 1

$6.99

$

In Stock, Qty 9

0

8

Jonsered 537423301

CARRIER

Note: . 1

$15.99

$

In Stock, Qty 7

0

9

Jonsered 537426601

SCREW

Note: . 1

$3.99

$

In Stock, Qty 10

0

10

Jonsered 505305125

STARTER ROPE

Note: . 1

$10.99

$

In Stock, Qty 9

0

11

Jonsered 544376501

STARTER HANDLE

Note: . 1

$14.99

$

In Stock, only 3 left!

0

12

Jonsered 503217321

SCREW

Note: . 1

$1.49

$

In Stock, Qty 20+

0

13

Jonsered 505402801

No Description Available

Note: CS2245S

$

$

Not available

14

Jonsered 544081501

COOLING AIR CONDUCTOR

$11.99

$

In Stock, only 2 left!

0

15

Jonsered 505402802

LABEL

Note: CS2250S

$4.99

$

Usually ships in 3-10 days

0
