CS 2250 S - Jonsered Chainsaw (2010-07) CYLINDER PISTON Parts Diagram

Chainsaw

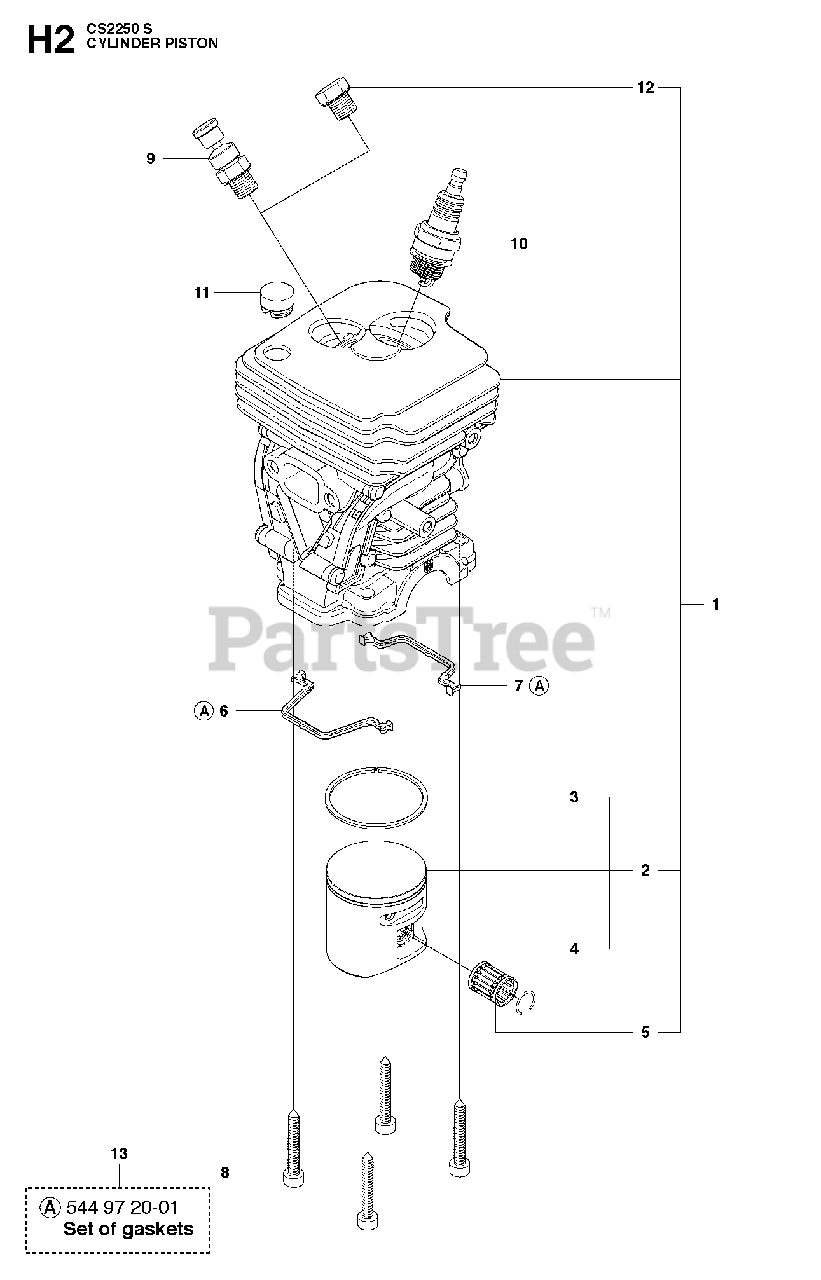

CYLINDER PISTON Parts Diagram

  • Title

1

Jonsered 544119802

CYLINDER

$206.99

$

Usually ships in 3-10 days

0

2

Jonsered 544088903

PISTON ASSY
(Superseded to 544088905)

Note: . 1

$265.99

$

In Stock, only 3 left!

0

3

Jonsered 544088701

PISTON RING

Note: . 1 2

$31.99

$

Usually ships in 3-10 days

0

4

Jonsered 544211301

CIRCLIP

Note: . 1 2

$3.99

$

In Stock, only 1 left!

0

5

Jonsered 503256301

NEEDLE BEARING
(Superseded to 501451601)

Note: . 1

$24.99

$

In Stock, only 3 left!

0

6

Jonsered 544108701

GASKET

Note: . 13

$7.99

$

In Stock, only 1 left!

0

7

Jonsered 544109201

GASKET

Note: . 13

$6.99

$

In Stock, only 2 left!

0

8

Jonsered 503200527

SCREW

$5.99

$

In Stock, Qty 10

0

9

Jonsered 544870701

DECOMPRESSION VALVE

$53.99

$

Usually ships in 3-10 days

0

10

Jonsered 503235111

BPMR7A NGK SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

11

Jonsered 540057301

SUPPORT

$6.99

$

Usually ships in 3-10 days

0

12

Jonsered 503552201

CYLINDER PLUG

Note: . 1

$13.99

$

In Stock, only 3 left!

0

13

Jonsered 544972001

GASKET KIT

Note: Set of Gaskets

$24.99

$

Usually ships in 3-10 days

0
