CS 2252 - Jonsered Chainsaw (2012-07) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

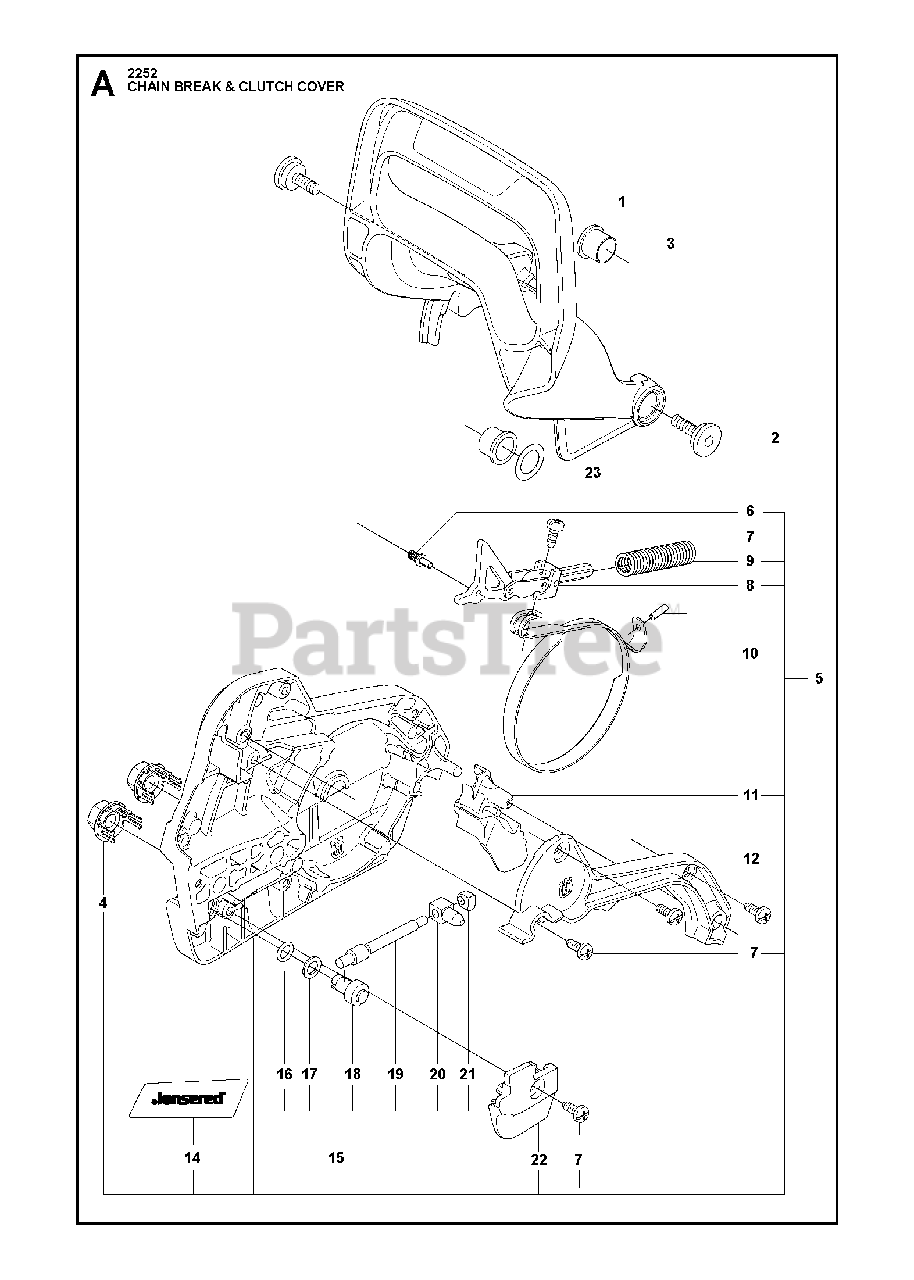

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title

1

Jonsered 578229801

No Description Available

$40.99

$

Usually ships in 3-10 days

0

2

Jonsered 537209001

SCREW

$7.49

$

In Stock, Qty 11

0

3

Jonsered 537202801

BUSHING

$9.99

$

In Stock, Qty 13

0

4

Jonsered 505197301

NUT RETAINER ASSY

$7.49

$

In Stock, Qty 8

0

5

Jonsered 577791001

No Description Available
(Superseded to 577791003)

$87.99

$

In Stock, only 1 left!

0

6

Jonsered 503751801

PIN

Note: . 5

$7.99

$

In Stock, Qty 8

0

7

Jonsered 503217010

SCREW

Note: . 5

$4.99

$

In Stock, Qty 20+

0

8

Jonsered 505199301

KNEE JOINT ASSY

Note: . 5

$35.99

$

Usually ships in 3-10 days

0

9

Jonsered 503908301

SPRING

Note: . 5

$7.99

$

In Stock, only 1 left!

0

10

Jonsered 505199501

BRAKE BAND ASSY
(Superseded to 505199502)

Note: . 5

$15.99

$

Usually ships in 3-10 days

0

11

Jonsered 505201601

GUARD

Note: . 5

$11.99

$

In Stock, only 2 left!

0

12

Jonsered 505199702

No Description Available

Note: . 5

$

$

Not available

14

Jonsered 578037501

No Description Available

Note: . 5

$5.99

$

Usually ships in 3-10 days

0

15

Jonsered 575260401

CHAIN TENSIONER KIT
(Superseded to 575260403)

Note: . 5

$34.99

$

Usually ships in 3-10 days

0

16

Jonsered 740480702

O-RING

Note: . 15 5

$7.49

$

In Stock, only 1 left!

0

17

Jonsered 503230063

WASHER

Note: . 15 5

$6.49

$

In Stock, Qty 7

0

18

Jonsered 537079403

WORM WHEEL

Note: . 15 5

$11.99

$

Usually ships in 3-10 days

0

19

Jonsered 575610301

No Description Available

Note: . 15 5

$11.99

$

Usually ships in 3-10 days

0

20

Jonsered 537286602

No Description Available

Note: . 15 5

$7.99

$

Usually ships in 3-10 days

0

21

Jonsered 537017401

SLEEVE

Note: . 15 5

$6.49

$

In Stock, Qty 6

0

22

Jonsered 505199802

No Description Available

Note: . 5

$

$

Not available

23

Jonsered 503230085

WASHER STEEL

$5.99

$

In Stock, only 2 left!

0
