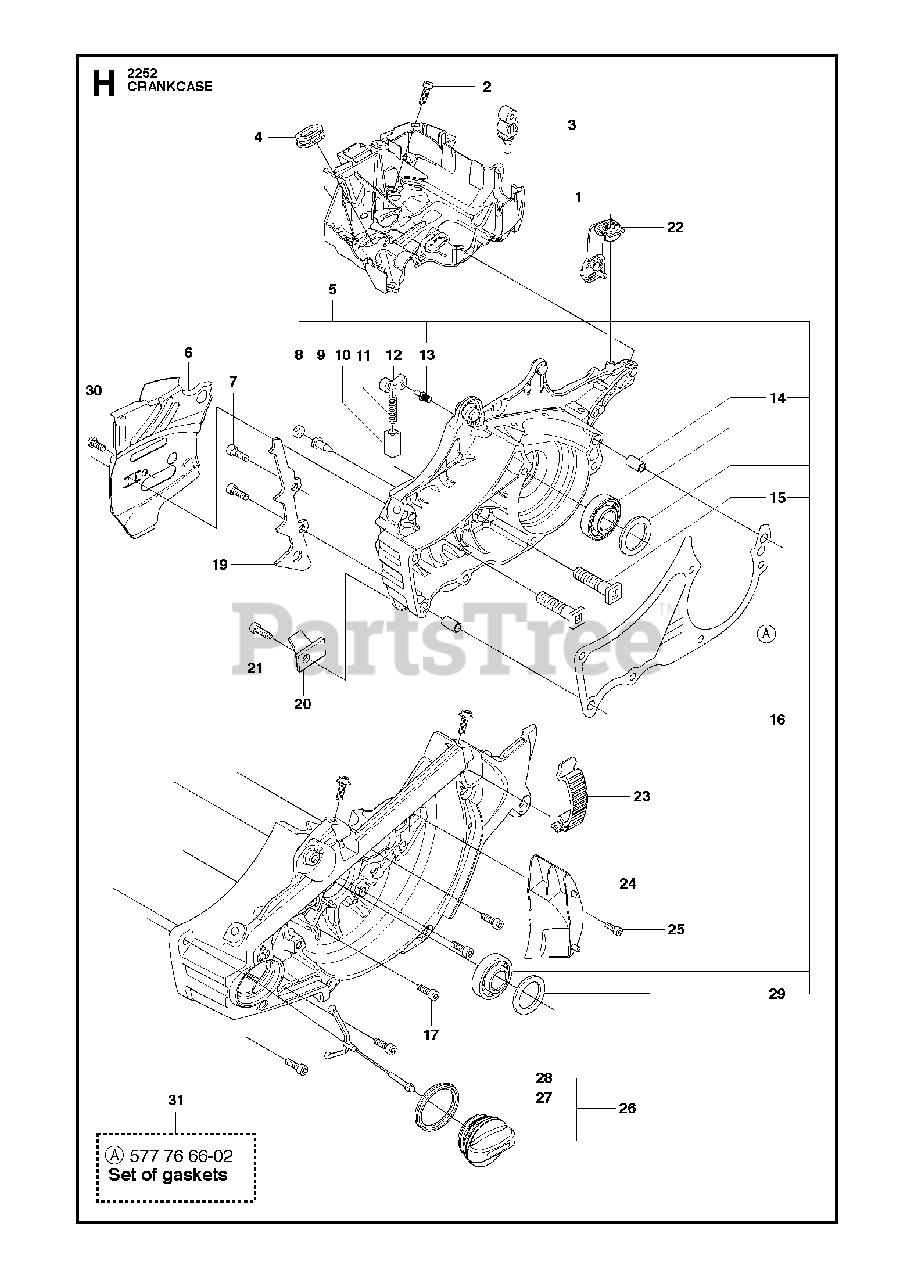

CS 2252 - Jonsered Chainsaw (2012-07) CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

1

Jonsered 525403202

No Description Available

$27.99

$

Usually ships in 3-10 days

0

2

Jonsered 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

3

Jonsered 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

4

Jonsered 537088301

GROMMET

$7.99

$

Usually ships in 3-10 days

0

5

Jonsered 577834703

No Description Available

$

$

Not available

6

Jonsered 522742801

CHAIN GUIDE PLATE

$11.99

$

In Stock, only 1 left!

0

7

Jonsered 503212616

SCREW

$6.49

$

In Stock, Qty 9

0

8

Jonsered 537403501

PLUG
(Superseded to 537403502)

Note: . 5

$3.99

$

In Stock, only 4 left!

0

9

Jonsered 530026119

VALVE-CHECK (DUCKBILL)

Note: . 5

$4.49

$

In Stock, Qty 11

0

10

Jonsered 537210701

GUIDE

$7.49

$

In Stock, only 1 left!

0

11

Jonsered 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 13

0

12

Jonsered 505201201

CATCH

$7.99

$

Usually ships in 3-10 days

0

13

Jonsered 503751801

PIN

Note: . 5

$7.99

$

In Stock, Qty 8

0

14

Jonsered 501270801

SLEEVE

Note: . 5

$8.49

$

Usually ships in 3-10 days

0

15

Jonsered 505217301

BAR BOLT

Note: . 5

$7.99

$

Usually ships in 3-10 days

0

16

Jonsered 505111501

SCREW IHSCM

Note: . 5

$4.99

$

In Stock, only 4 left!

0

17

Jonsered 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 20+

0

19

Jonsered 578400501

SPIKE

$10.99

$

Usually ships in 3-10 days

0

20

Jonsered 537377902

CHAIN CATCHER

$9.49

$

In Stock, Qty 19

0

21

Jonsered 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

22

Jonsered 505125801

DEFLECTION LIMITER

$10.99

$

Usually ships in 3-10 days

0

23

Jonsered 503894702

BUCKLE

$18.99

$

In Stock, only 2 left!

0

24

Jonsered 525417401

AIR NOZZLE

$5.76

$

Usually ships in 3-10 days

0

25

Jonsered 510020601

SCREW IHSCM

$2.49

$

Usually ships in 3-10 days

0

26

Jonsered 505415203

No Description Available
(Superseded to 505415206)

$12.99

$

In Stock, only 2 left!

0

27

Jonsered 537215001

SEALING
(Superseded to 589241101)

Note: . 26

$8.99

$

In Stock, Qty 17

0

28

Jonsered 503578903

No Description Available

Note: . 26

$

$

Not available

29

Jonsered 525391201

RADIAL SEAL

Note: . 5

$20.99

$

In Stock, only 2 left!

0

30

Jonsered 525887401

No Description Available
(Superseded to 503212813)

$6.49

$

In Stock, only 2 left!

0

31

Jonsered 577766602

No Description Available
(Superseded to 577766603)

Note: A set of gaskets

$22.99

$

In Stock, only 1 left!

0
