CS 2252 - Jonsered Chainsaw (2012-07) CYLINDER PISTON Parts Diagram

Chainsaw

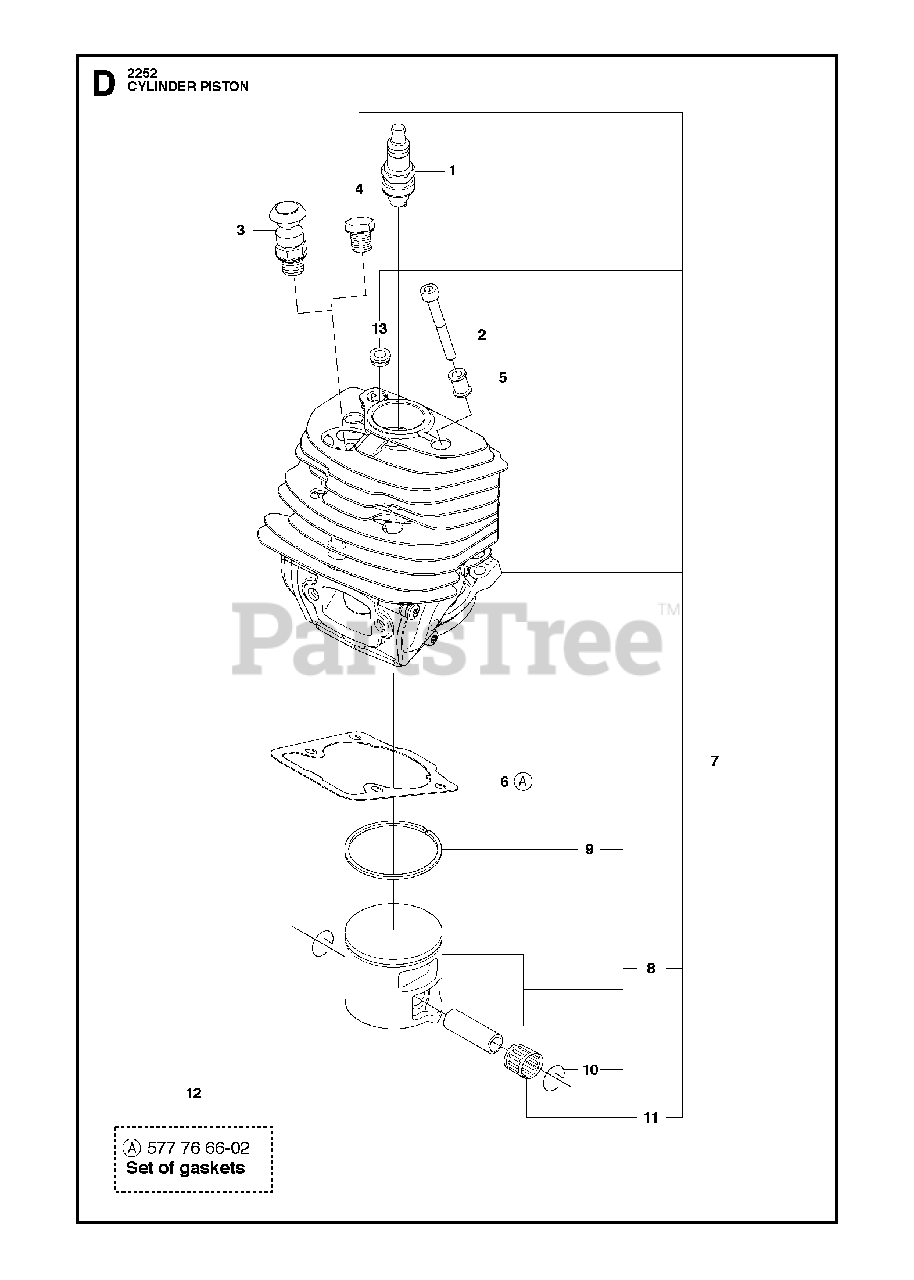

CYLINDER PISTON Parts Diagram

  • Title

1

Jonsered 574519601

CMR6H SPARK PLUG NGK
(Superseded to 531008615)

$4.99

$

In Stock, Qty 20+

0

2

Jonsered 725533955

SCREW MC6S 5X40

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 575276901

DECOMPRESSION VALVE

$67.99

$

Usually ships in 3-10 days

0

4

Jonsered 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 3 left!

0

5

Jonsered 576717602

SLEEVE

$7.99

$

Usually ships in 3-10 days

0

6

Jonsered 525315801

GASKET

Note: . 12

$6.99

$

In Stock, only 2 left!

0

7

Jonsered 577764702

CYLINDER PISTON ASSY
(Superseded to 577764704)

$

$

Not available

8

Jonsered 577047002

PISTON ASSY
(Superseded to 577047006)

Note: . 7

$

$

Not available

9

Jonsered 577958301

No Description Available

Note: . 8 7

$25.99

$

In Stock, only 1 left!

0

10

Jonsered 737441000

LOCKING RING

Note: . 8 7

$6.49

$

In Stock, only 2 left!

0

11

Jonsered 503256301

NEEDLE BEARING
(Superseded to 501451601)

Note: . 7

$24.99

$

In Stock, only 3 left!

0

12

Jonsered 577766602

No Description Available
(Superseded to 577766603)

Note: A set of gaskets

$22.99

$

In Stock, only 1 left!

0

13

Jonsered 520291101

BUSHING

Note: . 7

$6.99

$

Usually ships in 3-10 days

0
