CS 2253 - Jonsered Chainsaw (2012-07) CARBURETOR AIR FILTER Parts Diagram

Chainsaw

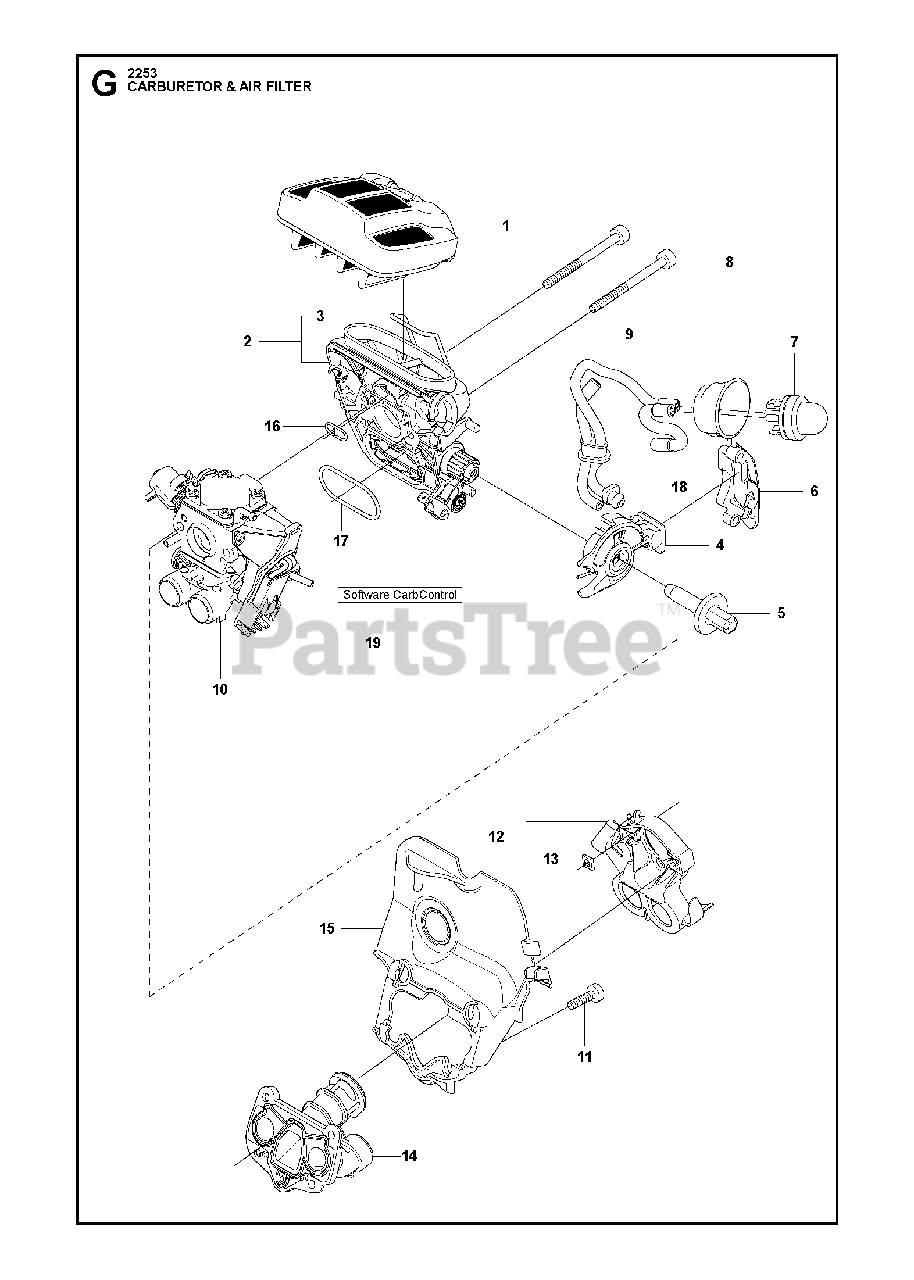

CARBURETOR AIR FILTER Parts Diagram

  • Title

1

Jonsered 522675401

AIR FILTER ASSY
(Superseded to 522675404)

Note: NYLON 80 m black

$21.99

$

In Stock, only 2 left!

0

1

Jonsered 522675402

AIR FILTER ASSY
(Superseded to 522675405)

Note: NYLON 44 m yellow

$21.99

$

In Stock, Qty 5

0

1

Jonsered 522675403

AIR FILTER ASSY
(Superseded to 522675406)

Note: FELT white

$22.99

$

Usually ships in 3-10 days

0

2

Jonsered 522907601

FILTER HOLDER ASSY
(Superseded to 574198903)

$20.99

$

Usually ships in 3-10 days

0

2

Jonsered 522907602

FILTER HOLDER ASSY

Note: WH

$27.99

$

Usually ships in 3-10 days

0

3

Jonsered 522907301

SHACKLE

Note: . 2

$8.49

$

Usually ships in 3-10 days

0

4

Jonsered 510017201

CHOKE CONTROL ASSY
(Superseded to 510017202)

$15.99

$

In Stock, only 4 left!

0

5

Jonsered 505156201

SCREW

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 525588101

SEALING

$9.99

$

In Stock, only 2 left!

0

7

Jonsered 503936601

AIR PURGE BUBBLE

$25.99

$

In Stock, Qty 20+

0

8

Jonsered 503202550

SCREW

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 525344302

No Description Available
(Superseded to 589357101)

$23.99

$

In Stock, only 2 left!

0

10

Jonsered 579200301

CARBURETTOR
(Superseded to 584973801)

$

$

Not available

11

Jonsered 510020601

SCREW IHSCM
(Superseded to 526818101)

$3.99

$

Usually ships in 3-10 days

0

12

Jonsered 523064001

FLANGE
(Superseded to 523064002)

$9.99

$

Usually ships in 3-10 days

0

13

Jonsered 503226503

NUT

Note: . 12

$4.99

$

In Stock, only 1 left!

0

14

Jonsered 525500002

No Description Available
(Superseded to 525500003)

$35.99

$

Usually ships in 3-10 days

0

15

Jonsered 522951001

INTERMEDIATE WALL

$8.49

$

Usually ships in 3-10 days

0

16

Jonsered 525619201

SEALING

$4.99

$

In Stock, only 2 left!

0

17

Jonsered 525619001

SEALING

$8.49

$

In Stock, only 2 left!

0

18

Jonsered 523056801

FUEL HOSE

$5.99

$

In Stock, Qty 6

0

19

Jonsered TBD

No Description Available

Note: Download from your local supportsite

$

$

Not available
