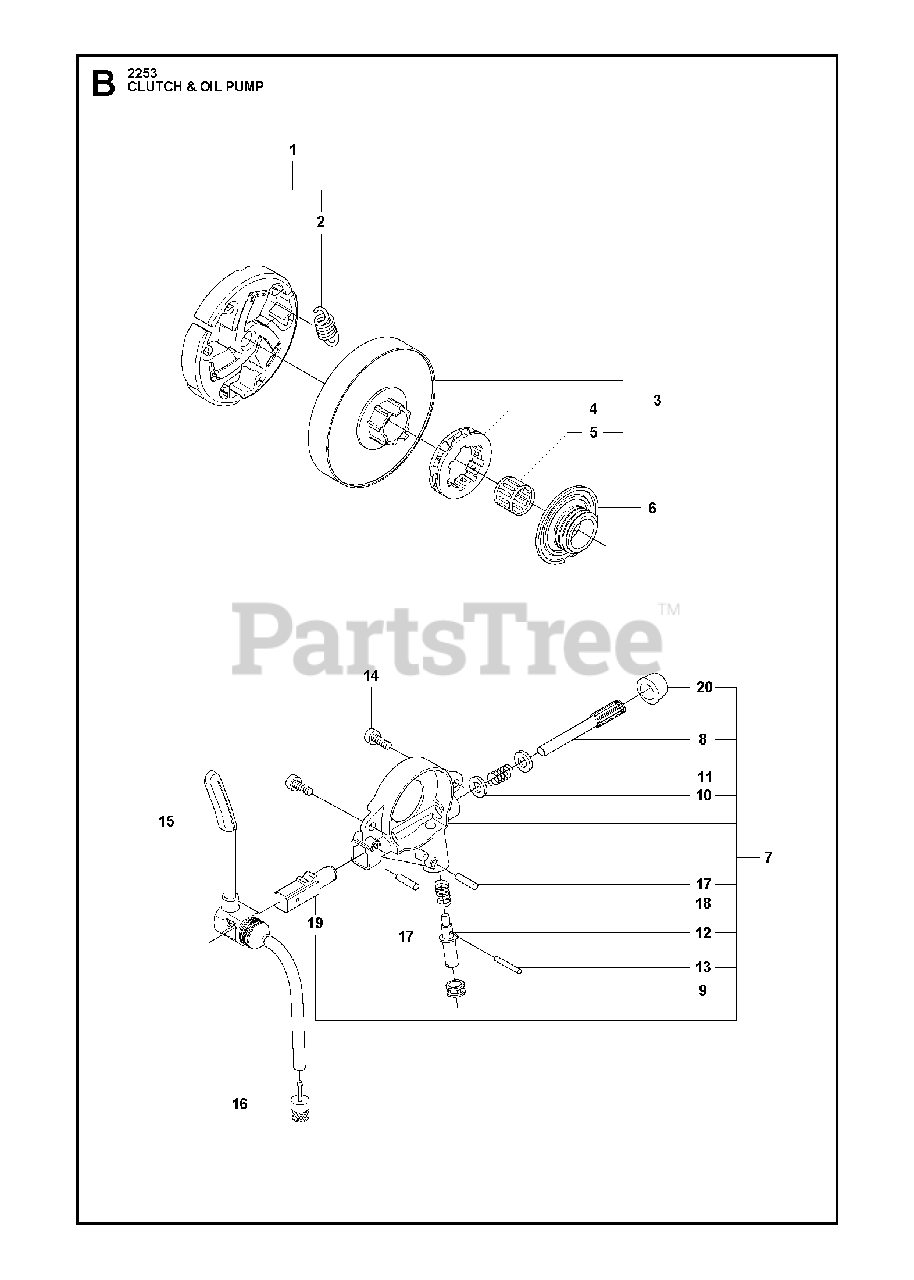

CS 2253 - Jonsered Chainsaw (2012-07) CLUTCH OIL PUMP Parts Diagram

Chainsaw

CLUTCH OIL PUMP Parts Diagram

  • Title

1

Jonsered 574236101

CLUTCH ASSY
(Superseded to 574236102)

$91.99

$

Usually ships in 3-10 days

0

2

Jonsered 537166901

SPRING

Note: . 1

$11.99

$

In Stock, Qty 6

0

3

Jonsered 575261003

CLUTCH DRUM ASSY

Note: 325 x7

$60.99

$

In Stock, Qty 5

0

4

Jonsered 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

Note: 325 x7. 3

$8.49

$

In Stock, Qty 20+

0

5

Jonsered 503253401

SUPPORT BUSHING

Note: . 3

$21.99

$

In Stock, Qty 20+

0

6

Jonsered 505200801

WORM WHEEL

$12.99

$

In Stock, Qty 5

0

7

Jonsered 505199901

OIL PUMP ASSY
(Superseded to 505199904)

$62.99

$

In Stock, only 1 left!

0

8

Jonsered 505200201

PUMP PISTON

Note: . 7

$14.99

$

In Stock, only 1 left!

0

9

Jonsered 505200301

CASING

Note: . 7

$

$

Not available

10

Jonsered 503230060

WASHER

Note: . 7

$4.99

$

In Stock, only 1 left!

0

11

Jonsered 503891601

SPRING

Note: . 7

$6.49

$

In Stock, only 3 left!

0

12

Jonsered 505201401

ADJUSTING SCREW
(Superseded to 505157001)

Note: . 7

$9.49

$

In Stock, only 1 left!

0

13

Jonsered 721116430

PIN

Note: . 7

$4.99

$

In Stock, only 3 left!

0

14

Jonsered 510020601

SCREW IHSCM

$2.49

$

Usually ships in 3-10 days

0

15

Jonsered 505200401

OIL HOSE

$14.99

$

In Stock, only 1 left!

0

16

Jonsered 504710003

OIL PLUMMET

$13.99

$

In Stock, Qty 7

0

17

Jonsered 720123300

PIN 3X10

Note: . 7

$5.99

$

In Stock, Qty 6

0

18

Jonsered 503891501

SPRING

Note: . 7

$6.49

$

In Stock, Qty 7

0

19

Jonsered 505200101

PUMP CYLINDER

Note: . 7

$9.49

$

In Stock, only 2 left!

0

20

Jonsered 503624901

PLUG

Note: . 7

$8.99

$

Usually ships in 3-10 days

0
