CS 2255 - Jonsered Chainsaw (2008-03) CARBURETOR DETAILS Parts Diagram

Chainsaw

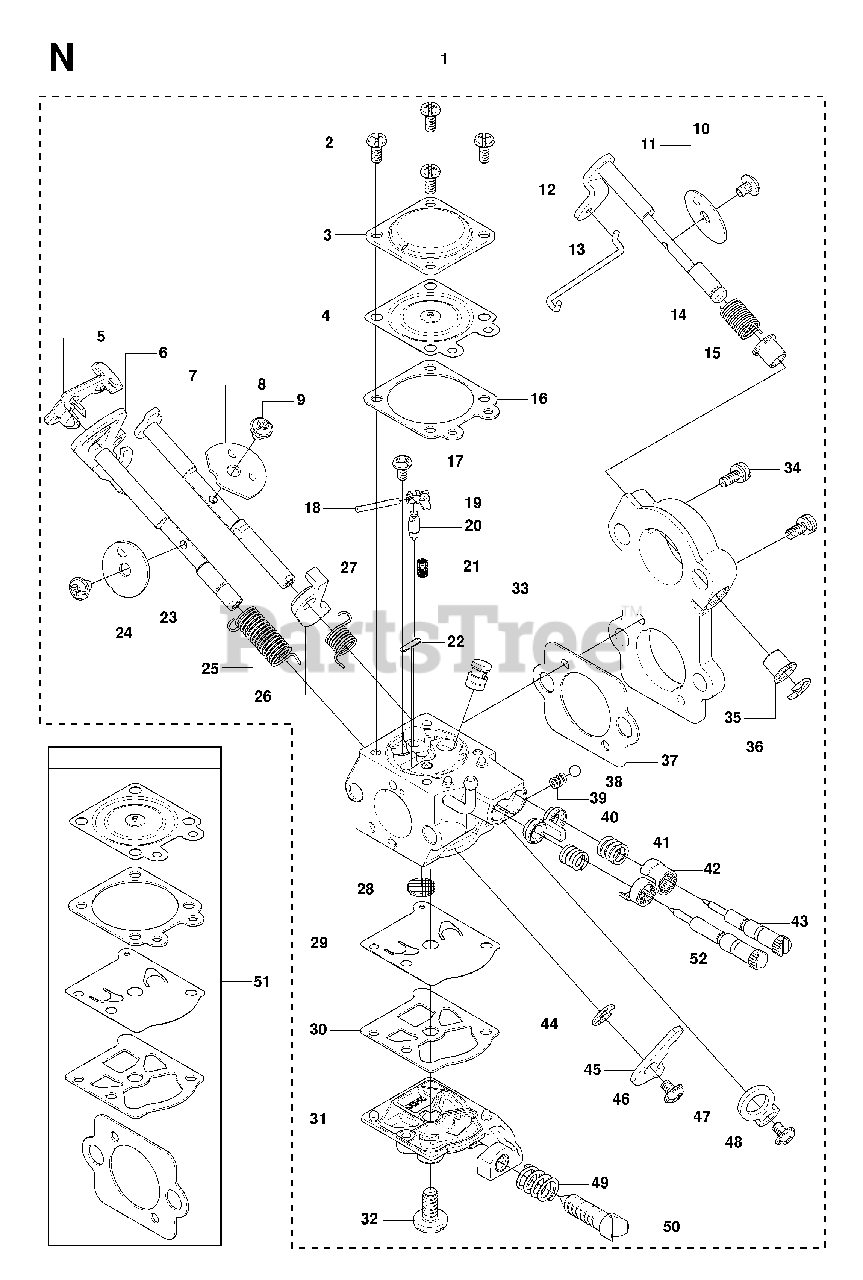

CARBURETOR DETAILS Parts Diagram

  • Title

1

Jonsered 544883001

CARBURETOR

$133.99

$

Usually ships in 3-10 days

0

2

Jonsered 503584601

SCREW

$4.99

$

In Stock, Qty 5

0

3

Jonsered 505316754

DIAPHRAGM COVER

$4.99

$

Usually ships in 3-10 days

0

4

Jonsered 502847001

DIAPHRAGM

$31.99

$

Usually ships in 3-10 days

0

5

Jonsered 537306201

BUCKLE

$34.99

$

In Stock, only 1 left!

0

6

Jonsered 537407401

SHAFT

$34.99

$

Usually ships in 3-10 days

0

7

Jonsered 537407501

SHAFT

$20.76

$

Usually ships in 3-10 days

0

8

Jonsered 537407701

VALVE

$

$

Not available

9

Jonsered 537003401

SCREW
(Superseded to 501468701)

$6.49

$

Usually ships in 3-10 days

0

10

Jonsered 537003401

SCREW
(Superseded to 501468701)

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 537406801

CHOKE FLAP

$6.91

$

Usually ships in 3-10 days

0

12

Jonsered 537406901

SHAFT

$21.99

$

Usually ships in 3-10 days

0

13

Jonsered 537407201

ROD

$8.99

$

In Stock, only 2 left!

0

14

Jonsered 537407001

SPRING

$3.49

$

Usually ships in 3-10 days

0

15

Jonsered 537406701

SLEEVE

$3.99

$

Usually ships in 3-10 days

0

16

Jonsered 504350906

GASKET

$4.99

$

In Stock, only 1 left!

0

17

Jonsered 502847101

SCREW

$4.99

$

In Stock, only 1 left!

0

18

Jonsered 505520125

FULCRUM PIN

$3.49

$

In Stock, only 3 left!

0

19

Jonsered 502847401

LEVER

$7.49

$

Usually ships in 3-10 days

0

20

Jonsered 503563401

INLET NEEDLE

$6.49

$

In Stock, Qty 12

0

21

Jonsered 503914701

SPRING

$3.99

$

Usually ships in 3-10 days

0

22

Jonsered 502846901

PLUG

$7.49

$

Usually ships in 3-10 days

0

23

Jonsered 502846601

No Description Available

$

$

Not available

24

Jonsered 544111501

SCREW

$6.49

$

Usually ships in 3-10 days

0

25

Jonsered 537408401

SPRING

$5.99

$

Usually ships in 3-10 days

0

26

Jonsered 537409201

LEVER

$7.49

$

In Stock, only 3 left!

0

27

Jonsered 537408601

SPRING

$6.49

$

Usually ships in 3-10 days

0

28

Jonsered 501666101

FUEL INLET SCREEN

$6.99

$

Usually ships in 3-10 days

0

29

Jonsered 502213601

DIAPHRAGM, FUEL PUMP
(Superseded to 504130807)

$6.49

$

In Stock, Qty 10

0

30

Jonsered 504130906

GASKET

$4.99

$

In Stock, Qty 5

0

31

Jonsered 537407301

COVER

$34.99

$

Usually ships in 3-10 days

0

32

Jonsered 501466901

SCREW

$3.99

$

In Stock, Qty 5

0

33

Jonsered 502846801

NOZZLE ASSY

$12.99

$

Usually ships in 3-10 days

0

34

Jonsered 537408301

SCREW

$6.49

$

Usually ships in 3-10 days

0

35

Jonsered 537406601

SLEEVE

$2.49

$

Usually ships in 3-10 days

0

36

Jonsered 505316736

E CLIP
(Superseded to 502119801)

$3.49

$

Usually ships in 3-10 days

0

37

Jonsered 537408101

GASKET

$8.99

$

Usually ships in 3-10 days

0

38

Jonsered 501468501

No Description Available
(Superseded to 530035107)

$

$

Not available

39

Jonsered 501468401

SPRING

$5.99

$

In Stock, only 1 left!

0

40

Jonsered 544971401

No Description Available

$30.99

$

Usually ships in 3-10 days

0

41

Jonsered 544971001

SPRING

$10.99

$

Usually ships in 3-10 days

0

42

Jonsered 544970801

LIMITER CAP

$8.99

$

In Stock, only 2 left!

0

43

Jonsered 502847201

NEEDLE

$8.99

$

Usually ships in 3-10 days

0

44

Jonsered 505316736

E CLIP
(Superseded to 502119801)

$3.49

$

Usually ships in 3-10 days

0

45

Jonsered 537407101

LEVER

$7.49

$

Usually ships in 3-10 days

0

46

Jonsered 501468701

SCREW.

$6.49

$

Usually ships in 3-10 days

0

47

Jonsered 537407601

PLATE

$8.99

$

In Stock, only 4 left!

0

48

Jonsered 501468701

SCREW.

$6.49

$

Usually ships in 3-10 days

0

49

Jonsered 503564201

SPRING

$8.99

$

Usually ships in 3-10 days

0

50

Jonsered 537408201

SCREW

$9.99

$

Usually ships in 3-10 days

0

51

Jonsered 505278401

GASKET SET

$31.99

$

In Stock, only 1 left!

0

52

Jonsered 502847301

NEEDLE

$10.99

$

Usually ships in 3-10 days

0
