CS 2255 - Jonsered Chainsaw (2008-03) CLUTCH COVER Parts Diagram

Chainsaw

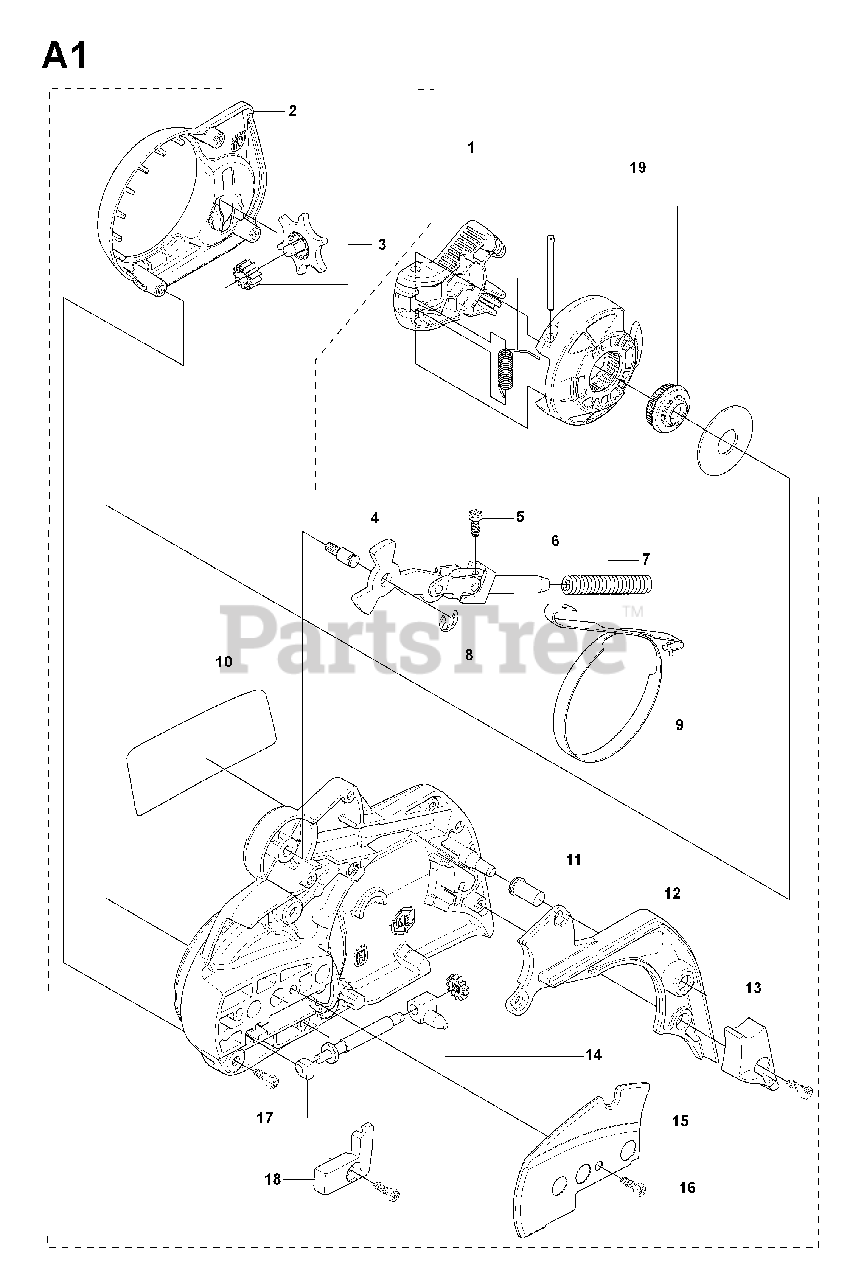

CLUTCH COVER Parts Diagram

  • Title

1

Jonsered 544217202

CLUTCH COVER ASSY
(Superseded to 544217206)

$

$

Not available

2

Jonsered 537392602

No Description Available

$

$

Not available

3

Jonsered 537347202

CHAIN TENSIONER WHEEL

$

$

Not available

4

Jonsered 503892901

PIN

$3.99

$

In Stock, Qty 7

0

5

Jonsered 503217010

SCREW

$4.99

$

In Stock, Qty 20+

0

6

Jonsered 503890802

JOINT

$26.99

$

In Stock, Qty 5

0

7

Jonsered 503465901

SPRING

$8.49

$

In Stock, Qty 10

0

8

Jonsered 735310820

E-RING 4

$3.99

$

In Stock, Qty 5

0

9

Jonsered 537043001

BRAKE BAND

$

$

Not available

10

Jonsered 544357502

LABEL

$

$

Not available

11

Jonsered 503855201

SLEEVE

$5.99

$

In Stock, only 1 left!

0

12

Jonsered 544082901

COVER, CHAIN BRAKE

$8.49

$

In Stock, only 2 left!

0

13

Jonsered 544083001

WEAR GUARD, CHAIN

$6.99

$

In Stock, only 4 left!

0

14

Jonsered 537392901

CHAIN TENSIONER SCREW, COMP.

$8.49

$

In Stock, only 1 left!

0

15

Jonsered 544250501

PLATE

$7.49

$

In Stock, only 2 left!

0

16

Jonsered 503217010

SCREW

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 537017401

SLEEVE

$7.49

$

In Stock, Qty 8

0

18

Jonsered 537347601

%COVER
(Superseded to 504542801)

$7.49

$

In Stock, only 2 left!

0

19

Jonsered 537347802

KNOB

$

$

Not available
