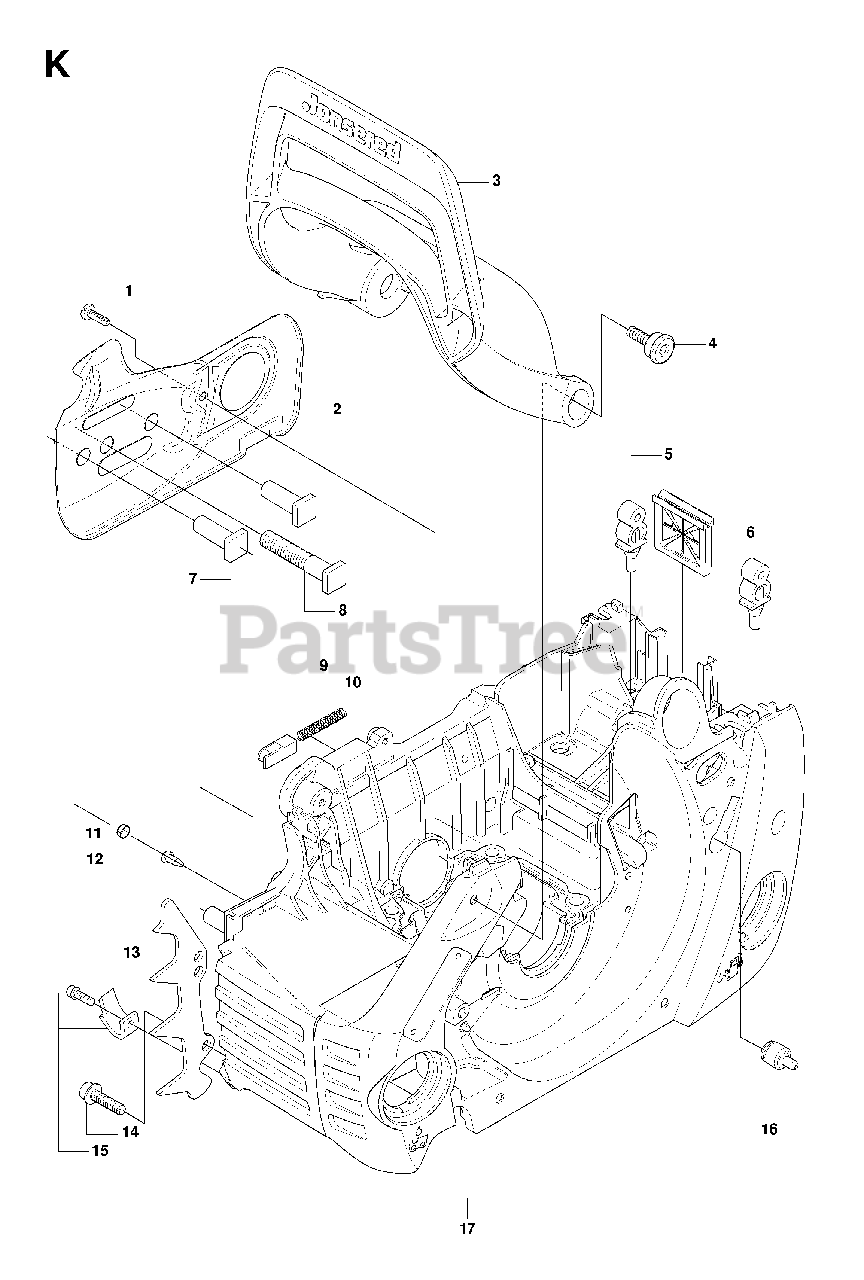

CS 2255 - Jonsered Chainsaw (2008-03) CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

1

Jonsered 503217010

SCREW

$4.99

$

In Stock, Qty 20+

0

2

Jonsered 537271302

PLATE

$18.99

$

In Stock, Qty 11

0

3

Jonsered 501986901

HAND GUARD

$66.99

$

In Stock, only 1 left!

0

4

Jonsered 537296501

SCREW, HAND GUARD

$7.49

$

In Stock, Qty 6

0

5

Jonsered 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

6

Jonsered 537260401

GROMMET

$11.99

$

In Stock, Qty 11

0

7

Jonsered 537334602

GUIDE BOLT (X2)

$6.99

$

In Stock, only 1 left!

0

8

Jonsered 537227801

BOLT

$8.99

$

In Stock, only 2 left!

0

9

Jonsered 503892401

CATCH

$9.99

$

In Stock, Qty 5

0

10

Jonsered 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 13

0

11

Jonsered 537403501

PLUG
(Superseded to 537403502)

$3.99

$

In Stock, only 4 left!

0

12

Jonsered 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 12

0

13

Jonsered 503973801

FELLING DOG

$31.99

$

In Stock, only 3 left!

0

14

Jonsered 503216820

SCREW
(Superseded to 503216220)

$4.99

$

In Stock, Qty 20+

0

15

Jonsered 503910671

CHAIN CATCHER

$12.99

$

In Stock, Qty 7

0

16

Jonsered 537359501

FUEL TANK VENT
(Superseded to 501152901)

$15.99

$

In Stock, Qty 18

0

17

Jonsered 537282006

CRANKCASE
(Superseded to 510065906)

$129.68

$

Usually ships in 3-10 days
