CS 2255 - Jonsered Chainsaw (2008-03) FUEL SYSTEM Parts Diagram

Chainsaw

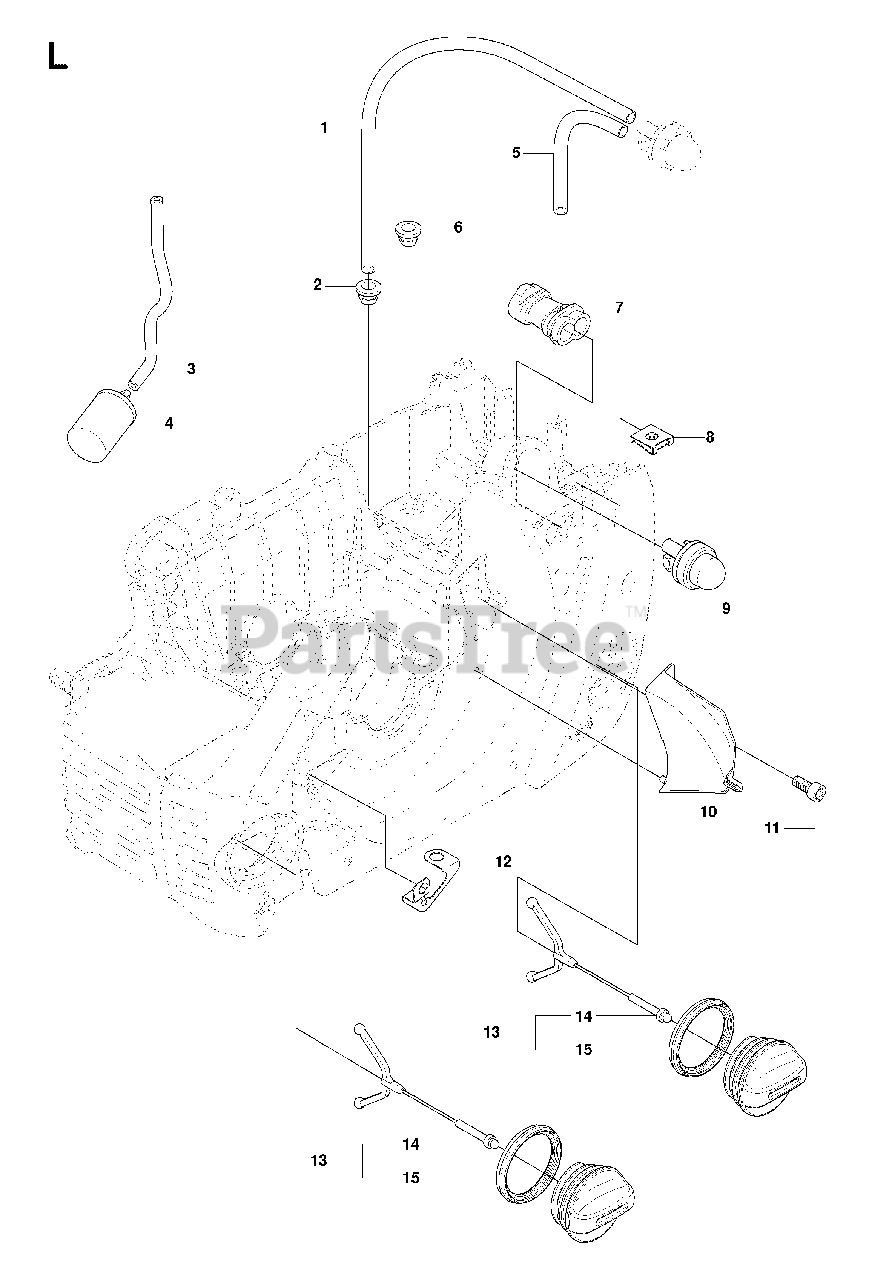

FUEL SYSTEM Parts Diagram

  • Title

1

Jonsered 537042408

HOSE

$7.49

$

In Stock, Qty 19

0

2

Jonsered 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$6.99

$

In Stock, Qty 20+

0

3

Jonsered 544325002

FUEL HOSE
(Superseded to 591375201)

$4.99

$

In Stock, Qty 20+

0

4

Jonsered 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

5

Jonsered 537042402

FUEL HOSE/38MM

$8.99

$

In Stock, Qty 13

0

6

Jonsered 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$6.99

$

In Stock, Qty 20+

0

7

Jonsered 537240801

SLEEVE

$8.07

$

Usually ships in 3-10 days

0

8

Jonsered 503226902

CLIP

$6.99

$

In Stock, Qty 13

0

9

Jonsered 503936601

AIR PURGE BUBBLE

$18.99

$

In Stock, Qty 20+

0

10

Jonsered 537317901

JET

$9.99

$

Usually ships in 3-10 days

0

11

Jonsered 503217412

SCREW

$6.49

$

In Stock, Qty 10

0

12

Jonsered 537278001

SWITCH PLATE

$8.99

$

Usually ships in 3-10 days

0

13

Jonsered 544111202

TANK CAP ASSY
(Superseded to 544111203)

$3.99

$

In Stock, Qty 20+

0

14

Jonsered 503578901

HOLDER

$9.99

$

In Stock, Qty 15

0

15

Jonsered 537215001

SEALING
(Superseded to 589241101)

$8.99

$

In Stock, Qty 17
