CS 2255 - Jonsered Chainsaw (2009-03) ELECTRICAL Parts Diagram

Chainsaw

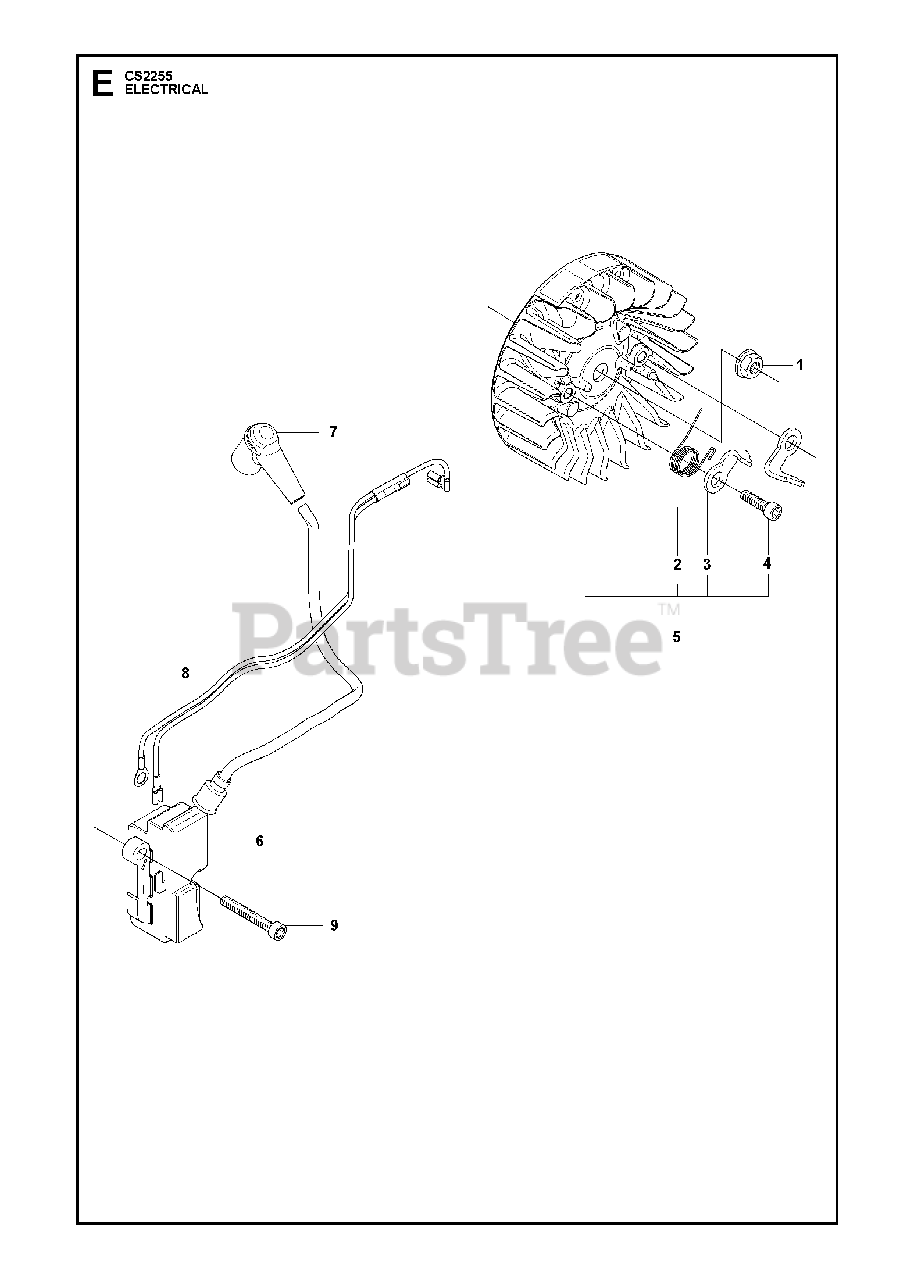

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 503220401

NUT W/ WASHER

$5.49

$

In Stock, Qty 5

0

2

Jonsered 503783201

%SPRING, STARTER CATCH
(Superseded to 529271101)

Note: . 5

$3.49

$

In Stock, Qty 19

0

3

Jonsered 537245601

PAWL

Note: . 5

$5.99

$

In Stock, Qty 9

0

4

Jonsered 501819903

PIN, STARTER CATCH

Note: . 5

$5.99

$

In Stock, only 3 left!

0

5

Jonsered 537292701

FLYWHEEL

$159.99

$

Usually ships in 3-10 days

0

6

Jonsered 544047001

IGNITION MODULE

$62.99

$

In Stock, only 1 left!

0

7

Jonsered 501485402

SPARK PLUG CONN. KIT

$15.99

$

In Stock, Qty 8

0

8

Jonsered 537272701

CABLE ASSY

$17.99

$

Usually ships in 3-10 days

0

9

Jonsered 503215525

SCREW

$3.49

$

In Stock, Qty 11

0
