CS 2255 - Jonsered Chainsaw (2009-03) HANDLE CONTROLS Parts Diagram

Chainsaw

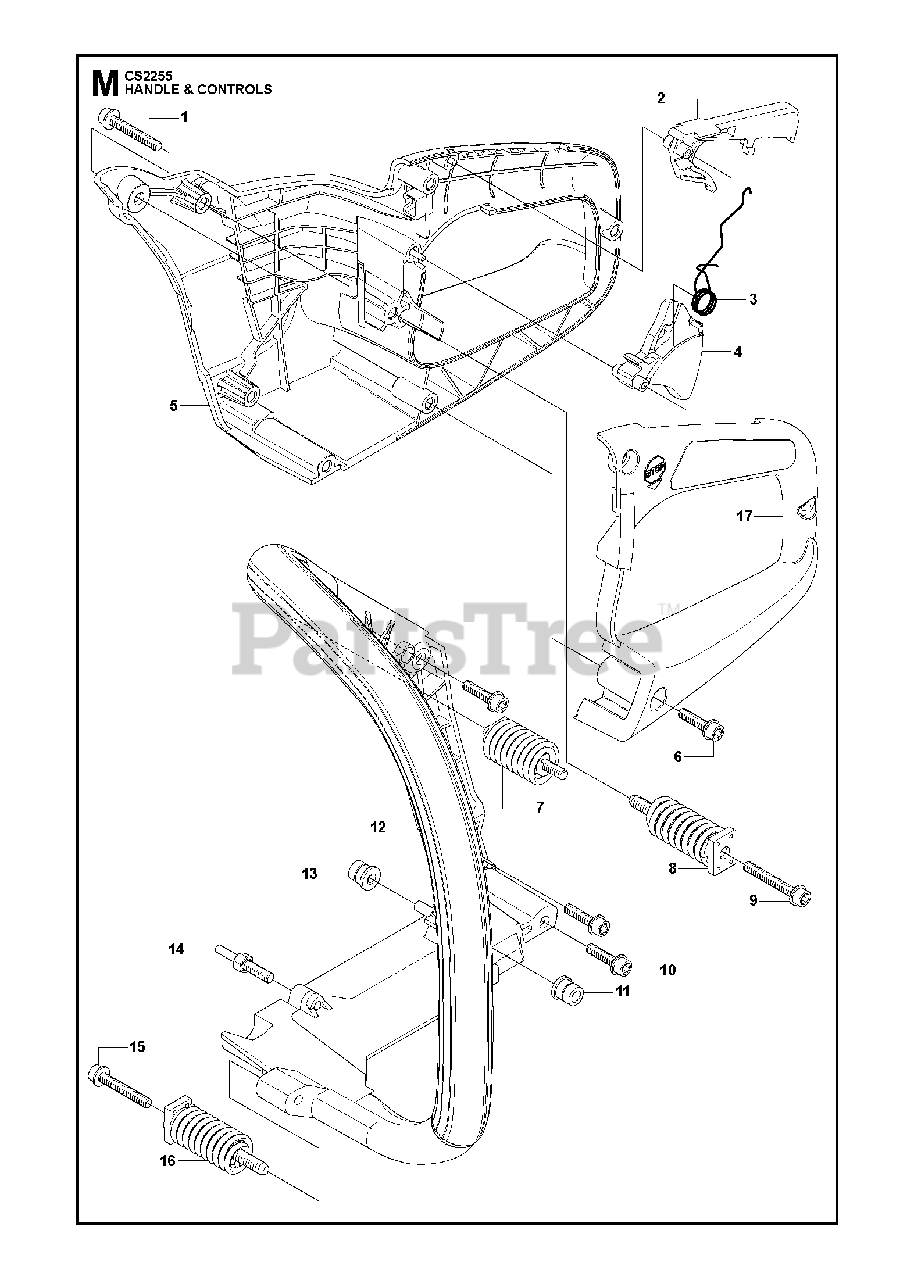

HANDLE CONTROLS Parts Diagram

  • Title

1

Jonsered 503218825

%SCREW
(Superseded to 503218876)

$6.49

$

In Stock, Qty 20+

0

2

Jonsered 502440202

THROTTLE LOCKOUT

$13.99

$

In Stock, only 2 left!

0

3

Jonsered 503998601

SPRING

$9.99

$

In Stock, Qty 19

0

4

Jonsered 537260502

THROTTLE TRIGGER
(Superseded to 537260504)

$10.99

$

In Stock, Qty 6

0

5

Jonsered 537230602

REAR HANDLE

$42.99

$

In Stock, only 4 left!

0

6

Jonsered 503210270

SCREW

$6.49

$

In Stock, Qty 20+

0

7

Jonsered 537304601

VIBRATIONS ABSORBER

$24.99

$

In Stock, Qty 7

0

8

Jonsered 503854101

VIBRATION ABSORBER

$24.99

$

In Stock, Qty 15

0

9

Jonsered 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

10

Jonsered 503210270

SCREW

$6.49

$

In Stock, Qty 20+

0

11

Jonsered 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, Qty 16

0

12

Jonsered 501987201

FRONT HANDLE

$87.99

$

Usually ships in 3-10 days

0

13

Jonsered 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, Qty 16

0

14

Jonsered 537242901

PIN

$7.49

$

In Stock, only 4 left!

0

15

Jonsered 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

16

Jonsered 503923101

SPRING

$31.99

$

In Stock, Qty 6

0

17

Jonsered 537230702

CAP

$31.99

$

In Stock, only 3 left!

0
