CS 2255 - Jonsered Chainsaw (2011-01) ELECTRICAL Parts Diagram

Chainsaw

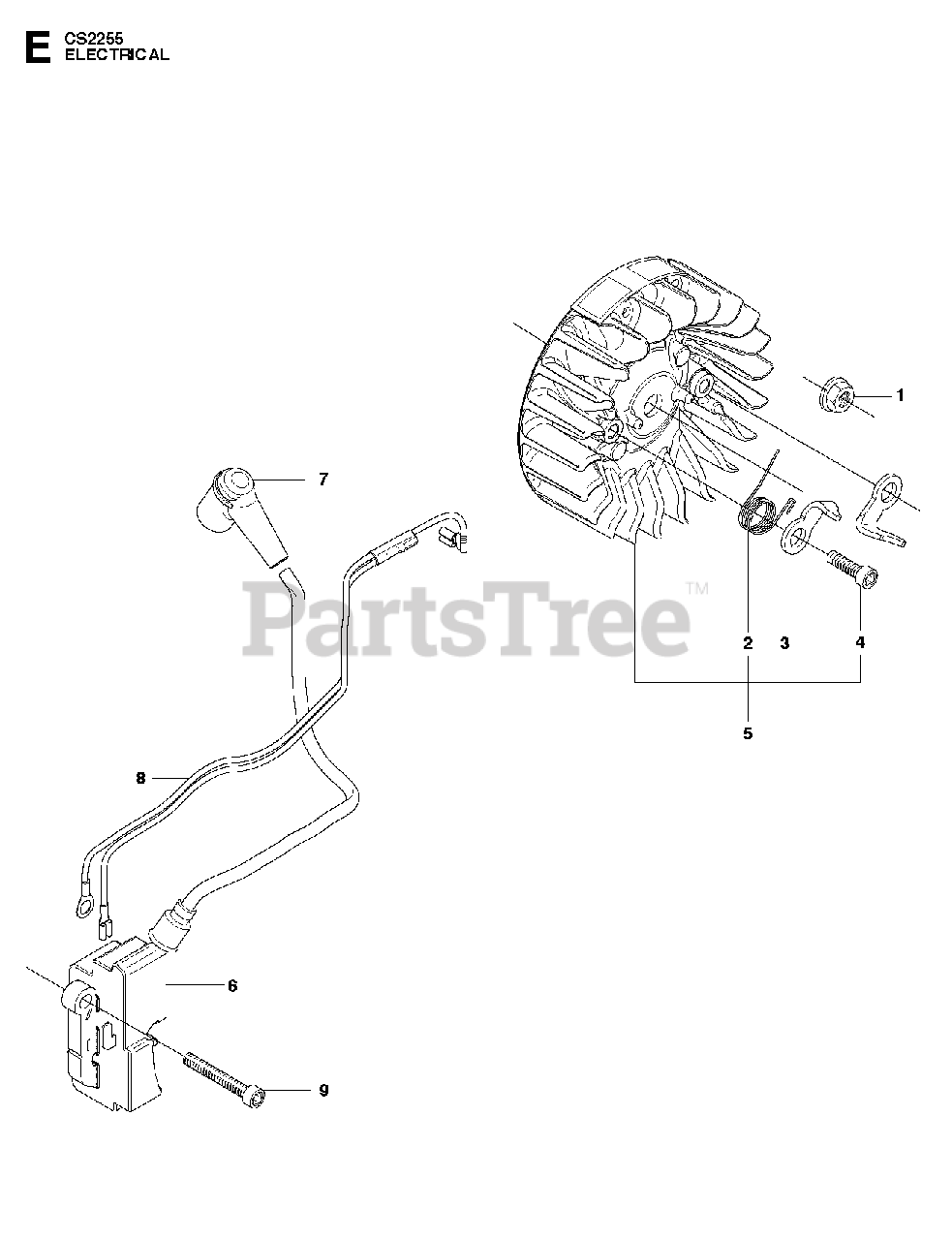

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 6

0

2

Jonsered 529271101

SPRING

Note: . 5

$7.49

$

In Stock, Qty 9

0

3

Jonsered 537245601

PAWL

Note: . 5

$8.99

$

In Stock, only 3 left!

0

4

Jonsered 501819903

PIN, STARTER CATCH

Note: . 5

$9.99

$

In Stock, Qty 5

0

5

Jonsered 537292701

FLYWHEEL

$241.99

$

Usually ships in 3-10 days

0

6

Jonsered 544047001

IGNITION MODULE

$121.99

$

In Stock, Qty 5

0

7

Jonsered 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, Qty 14

0

8

Jonsered 537272701

CABLE ASSY

$31.99

$

In Stock, only 1 left!

0

9

Jonsered 503215525

SCREW

$6.49

$

In Stock, only 2 left!

0
