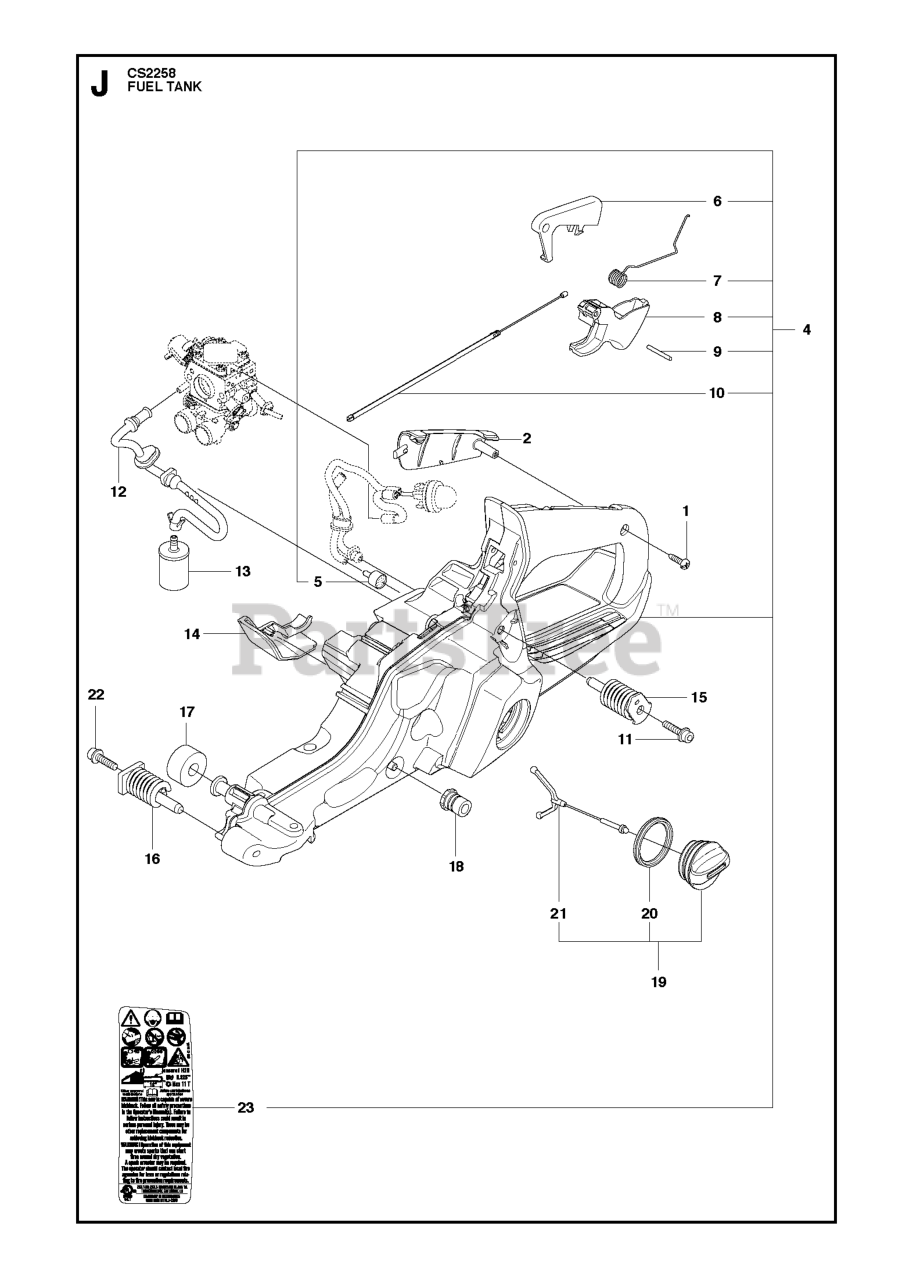

CS 2258 - Husqvarna Chainsaw (2012-05) FUEL TANK Parts Diagram

Chainsaw

FUEL TANK Parts Diagram

  • Title

1

Husqvarna 503212813

SCREW

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 504106302

HANDLE INSERT

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 505124002

$

$

Not available

5

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

Note: . 4

$23.99

$

In Stock, Qty 13

0

6

Husqvarna 544099802

THROTTLE LOCKOUT

Note: . 4

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544099901

SPRING

Note: . 4

$7.49

$

In Stock, only 3 left!

0

8

Husqvarna 505157702

THROTTLE

Note: . 4

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 720182520

PIN

Note: . 4

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 521887901

THROTTLE CABLE ASSY

Note: . 4

$23.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503218874

SCREW

$5.99

$

In Stock, Qty 6

0

12

Husqvarna 573993501

RP FUEL HOSE
(Superseded to 573993503)

$15.99

$

In Stock, Qty 6

0

13

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

14

Husqvarna 505165902

COVER FUELTANK JONSERED BLACK

$

$

Not available

15

Husqvarna 505129001

RP ANTIVIBRATION ELEMENT
(Superseded to 578227401)

$14.99

$

In Stock, only 2 left!

0

16

Husqvarna 505128701

ANITVIBRATION ELEMENT
(Superseded to 505128702)

$17.99

$

In Stock, only 2 left!

0

17

Husqvarna 523085501

DEFLECTION LIMITER

$9.49

$

Usually ships in 3-10 days

0

18

Husqvarna 501007601

LATERAL SUPPORT

$3.49

$

In Stock, only 2 left!

0

19

Husqvarna 544111202

TANK CAP ASSY
(Superseded to 544111204)

$8.49

$

Usually ships in 3-10 days

0

20

Husqvarna 537215001

SEALING
(Superseded to 589241101)

Note: . 19

$7.49

$

In Stock, only 2 left!

0

21

Husqvarna 503578901

TANK LOCK

Note: . 19

$7.49

$

In Stock, Qty 5

0

22

Husqvarna 503218876

SCREW

$5.99

$

In Stock, Qty 12

0

23

Husqvarna 525470406

DECAL UL/CUL/SPARK ARRESTER 11

Note: . 4

$

$

Not available
