CS 2258 - Jonsered Chainsaw (2012-05) CARBURETOR DETAILS Parts Diagram

Chainsaw

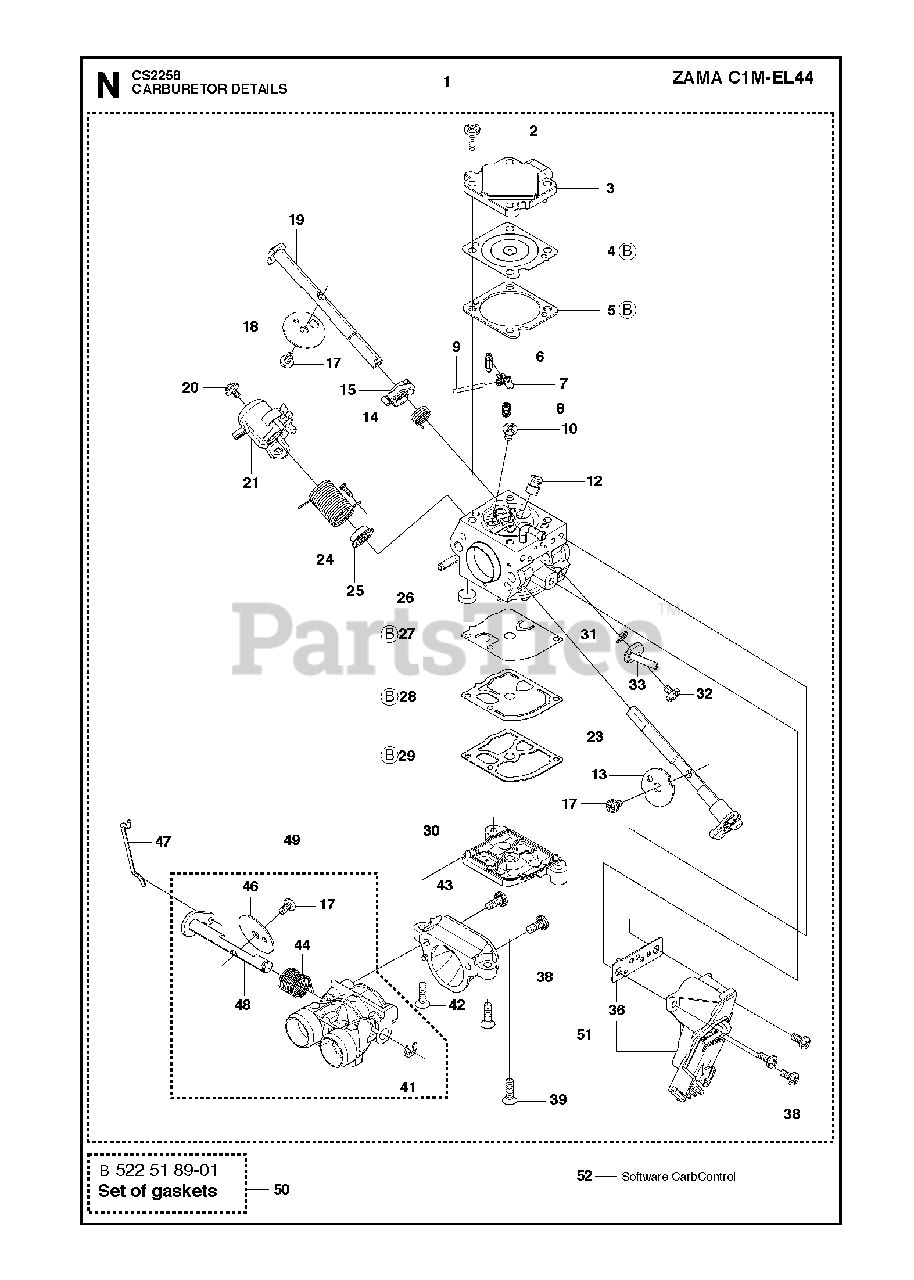

CARBURETOR DETAILS Parts Diagram

  • Title

1

Jonsered 579194101

CARBURETOR KIT 555 AUTOTUNE

$169.99

$

In Stock, only 1 left!

0

2

Jonsered 522545101

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 522517201

COVER

Note: . 1

$5.76

$

Usually ships in 3-10 days

0

4

Jonsered 522517401

DIAPHRAGM

Note: . 1 50

$26.99

$

Usually ships in 3-10 days

0

5

Jonsered 522517501

GASKET

Note: . 1 50

$6.99

$

Usually ships in 3-10 days

0

6

Jonsered 503479701

INLET NEEDLE

Note: . 1

$8.99

$

Usually ships in 3-10 days

0

7

Jonsered 503665901

LEVER

Note: . 1

$3.99

$

In Stock, only 2 left!

0

8

Jonsered 537383401

SPRING

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

9

Jonsered 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: . 1

$3.49

$

In Stock, only 1 left!

0

10

Jonsered 503480101

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

12

Jonsered 576414201

MAIN NOZZLE

Note: . 1

$26.99

$

Usually ships in 3-10 days

0

13

Jonsered 523077201

VALVE

Note: . 1

$8.07

$

Usually ships in 3-10 days

0

14

Jonsered 522518701

SPRING

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

15

Jonsered 522517701

LEVER

Note: . 1

$8.93

$

Usually ships in 3-10 days

0

17

Jonsered 503481801

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

18

Jonsered 504627701

CHOKE VALVE

Note: . 1

$8.07

$

Usually ships in 3-10 days

0

19

Jonsered 522518301

SHAFT ASSY

Note: . 1

$19.61

$

Usually ships in 3-10 days

0

20

Jonsered 502078401

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

21

Jonsered 522517801

THROTTLE LEVER

Note: . 1

$9.49

$

In Stock, only 1 left!

0

23

Jonsered 522518501

THROTTLE SHAFT

Note: . 1

$

$

Not available

24

Jonsered 502078701

SPRING

Note: . 1

$5.99

$

In Stock, only 1 left!

0

25

Jonsered 502079801

COLLAR

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

26

Jonsered 503535701

STRAINER

Note: . 1

$4.99

$

In Stock, only 4 left!

0

27

Jonsered 537383101

PUMP DIAPHRAGM

Note: . 1 50

$21.99

$

In Stock, only 1 left!

0

28

Jonsered 537403301

DIAPHRAGM

Note: . 1 50

$15.99

$

In Stock, only 3 left!

0

29

Jonsered 537020101

GASKET

Note: . 1 50

$4.99

$

In Stock, Qty 15

0

30

Jonsered 575544301

COVER

Note: . 1

$16.14

$

Usually ships in 3-10 days

0

31

Jonsered 504026701

CIRCLIP

Note: . 1

$3.99

$

In Stock, only 1 left!

0

32

Jonsered 503479001

SCREW

Note: . 1

$3.99

$

In Stock, Qty 11

0

33

Jonsered 522517601

CHOKE LEVER

Note: . 1

$28.99

$

Usually ships in 3-10 days

0

36

Jonsered 510413301

GASKET CARBURETTOR

Note: . 1 51

$

$

Not available

38

Jonsered 506396601

SCREW

Note: . 1

$2.99

$

Usually ships in 3-10 days

0

39

Jonsered 522518101

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

41

Jonsered 537385201

CLIP

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

42

Jonsered 522518001

SCREW

Note: . 1

$2.49

$

Usually ships in 3-10 days

0

43

Jonsered 575544401

INLET

Note: . 1

$22.99

$

Usually ships in 3-10 days

0

44

Jonsered 522518601

SPRING

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

46

Jonsered 537177001

THROTTLE FLAP

Note: . 1

$18.99

$

Usually ships in 3-10 days

0

47

Jonsered 522517901

ROD

Note: . 1

$6.99

$

Usually ships in 3-10 days

0

48

Jonsered 522518201

SHAFT ASSY

Note: . 1

$16.76

$

Usually ships in 3-10 days

0

49

Jonsered 578227801

THROTTLE VALVE ASSY

Note: . 1

$37.99

$

Usually ships in 3-10 days

0

50

Jonsered 522518901

KIT

Note: B set of gaskets

$26.99

$

In Stock, only 3 left!

0

51

Jonsered 575380001

SPARE PARTS KIT

Note: . 1

$

$

Not available

52

Jonsered 000000000

No Description Available

Note: Download from your local supportsite

$

$

Not available
