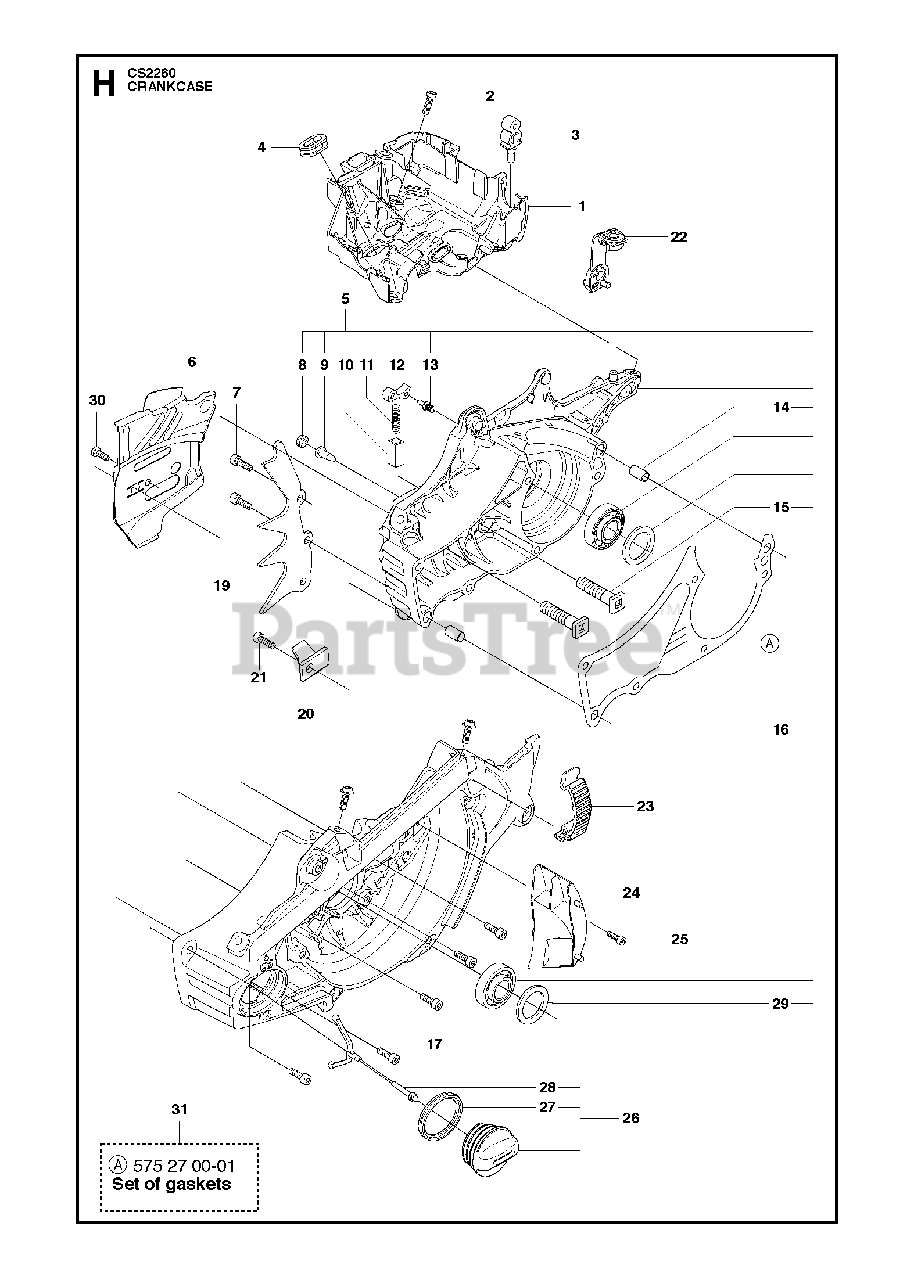

CS 2260 - Jonsered Chainsaw (2012-05) CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

1

Jonsered 505158602

No Description Available

$

$

Not available

2

Jonsered 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

3

Jonsered 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

4

Jonsered 537088301

GROMMET

$7.99

$

Usually ships in 3-10 days

0

5

Jonsered 575380204

No Description Available

$

$

Not available

6

Jonsered 505201101

CHAIN GUIDE PLATE

$15.99

$

In Stock, only 1 left!

0

7

Jonsered 725532955

SCREW MC6S 5X16

$6.49

$

In Stock, Qty 20+

0

8

Jonsered 537403501

PLUG
(Superseded to 537403502)

Note: . 5

$3.99

$

In Stock, only 4 left!

0

9

Jonsered 530026119

VALVE-CHECK (DUCKBILL)

Note: . 5

$4.49

$

In Stock, Qty 13

0

10

Jonsered 537210701

GUIDE

$7.49

$

In Stock, only 1 left!

0

11

Jonsered 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 13

0

12

Jonsered 505201201

CATCH

$7.99

$

Usually ships in 3-10 days

0

13

Jonsered 503751801

PIN

Note: . 5

$7.99

$

In Stock, Qty 8

0

14

Jonsered 501270801

SLEEVE

Note: . 5

$8.49

$

Usually ships in 3-10 days

0

15

Jonsered 505217301

BAR BOLT

Note: . 5

$7.99

$

Usually ships in 3-10 days

0

16

Jonsered 505111501

SCREW IHSCM

Note: . 5

$4.99

$

In Stock, only 4 left!

0

17

Jonsered 503200802

SCREW IHSCM

$4.99

$

Usually ships in 3-10 days

0

19

Jonsered 577935201

SPIKES

$17.99

$

In Stock, only 1 left!

0

20

Jonsered 537377902

CHAIN CATCHER

$9.49

$

In Stock, Qty 19

0

21

Jonsered 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

22

Jonsered 505125801

DEFLECTION LIMITER

$10.99

$

Usually ships in 3-10 days

0

23

Jonsered 503894703

CLIP GRAY

$11.99

$

In Stock, Qty 13

0

24

Jonsered 520291201

AIR NOZZLE

$6.70

$

Usually ships in 3-10 days

0

25

Jonsered 510020601

SCREW IHSCM

$2.49

$

Usually ships in 3-10 days

0

26

Jonsered 544111202

TANK CAP ASSY
(Superseded to 544111203)

$3.99

$

In Stock, Qty 20+

0

27

Jonsered 537215001

SEALING
(Superseded to 589241101)

Note: . 26

$8.99

$

In Stock, Qty 17

0

28

Jonsered 503578901

HOLDER

Note: . 26

$9.99

$

In Stock, Qty 15

0

29

Jonsered 525391201

RADIAL SEAL

Note: . 5

$20.99

$

In Stock, only 2 left!

0

30

Jonsered 503212813

SCREW

$6.49

$

In Stock, only 2 left!

0

31

Jonsered 575270001

GASKET KIT
(Superseded to 575270002)

Note: A set of gaskets

$21.99

$

In Stock, only 1 left!

0
